Specifications
Find Complete Details about Hky Shutter Door Roll Forming Machine,Forming Machine,Roll FormerWe can produce this kind of machine according to customer`s requirement.
Specifaction
Material Spec | Color/galvanized steel coil |
Coil stress | 235Mpa |
Main motor power | 4kw |
Punching equipment power | 5.5kw. |
Punching pressure | 40T |
Punching mould size | 50mm *200mm at one time. |
Mould material | top and down mould material D2 mould steel. |
Saw cutter motor | 3kw |
Working Speed | 10 ~ 12 m/min. after punching speed about 2-4m/min. |
Cutting Tolerance | ≤±2.5mm ( length≤ 5000mm) |
| ≤±3mm ( 5000mm < length ≤ 10000mm) |
Type of cutting | Roll-formed and length-set cutting |
Roller stands | about 15 stands |
Voltage | 380V 3 phase 60Hz or at buyer`s requirement |
Material of Main Equipment
Roller Material | High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the rollers |
Active Shaft Material | High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft |
Electric Elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China |
Cutter blade | Cr12 mould steel with quenched treatment |

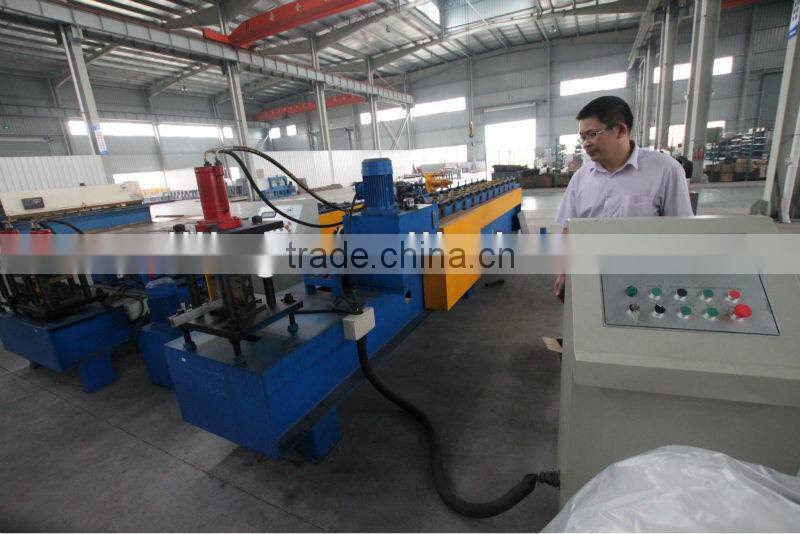

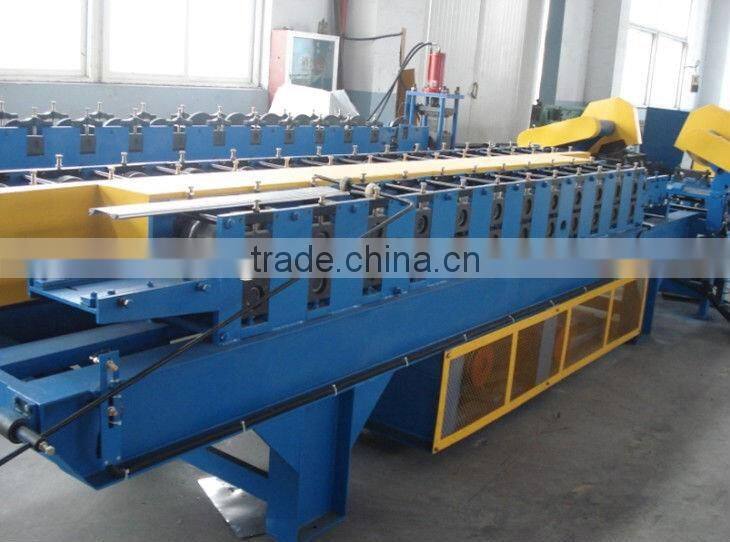

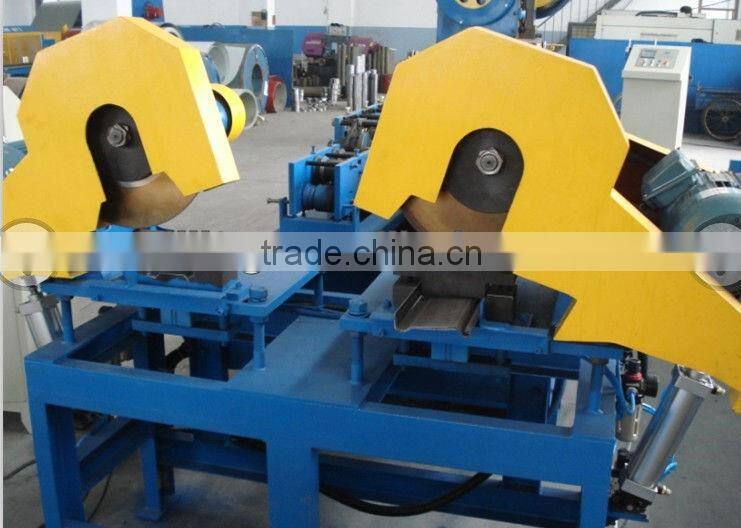

Example machine picture with saw cutter

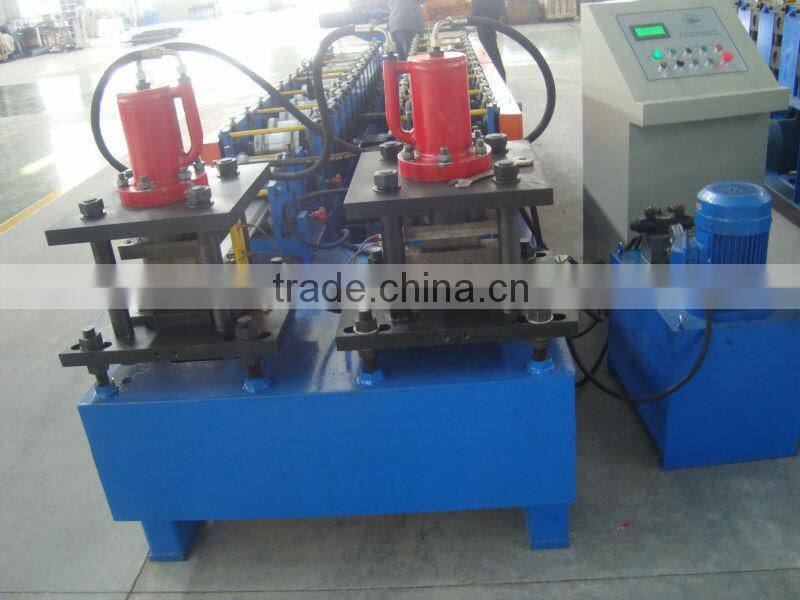

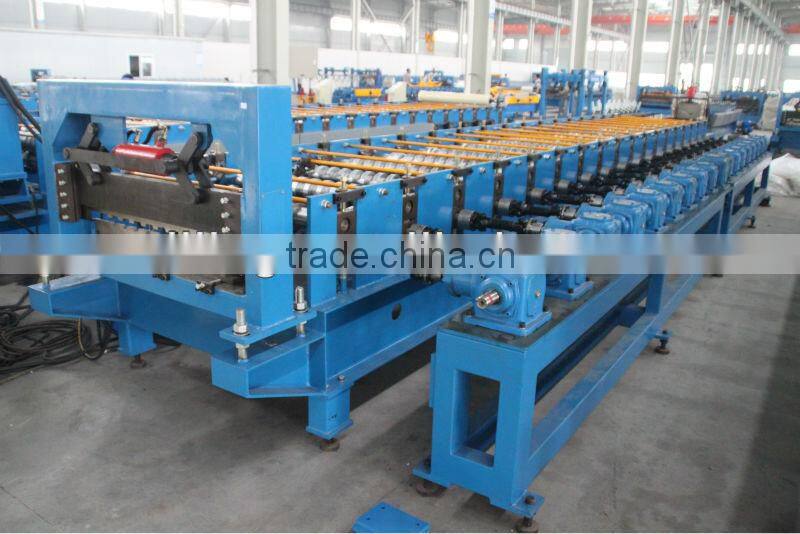

Example machine picture with hydraulic cutting

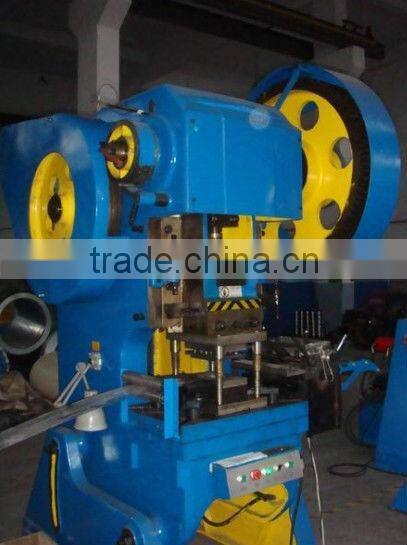

Punching machine view

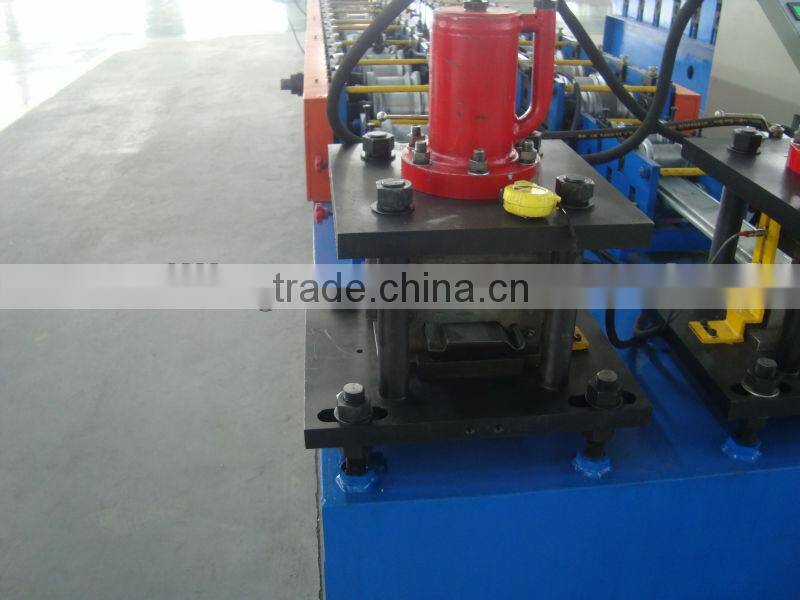

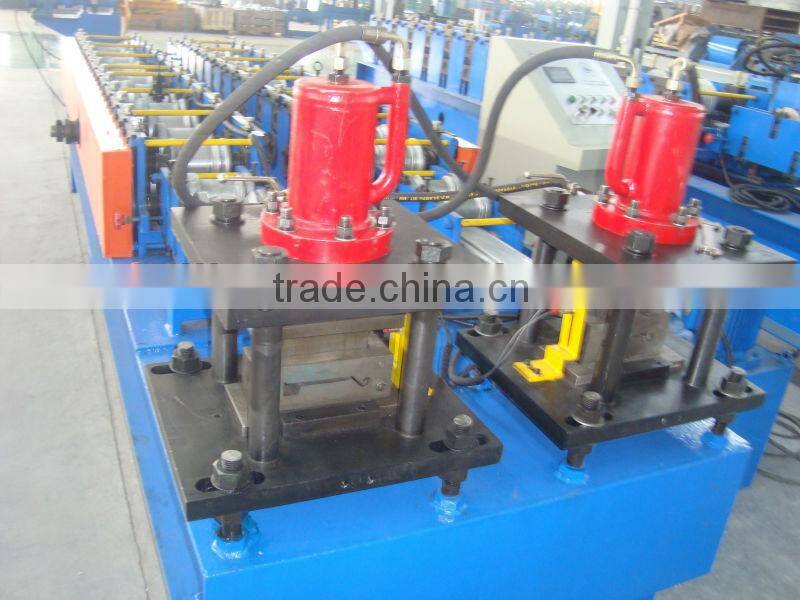

Mould:

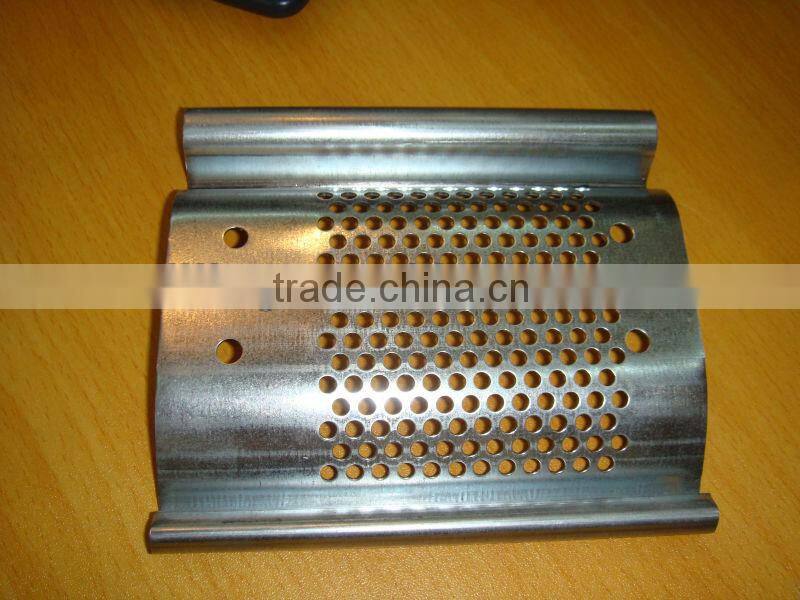

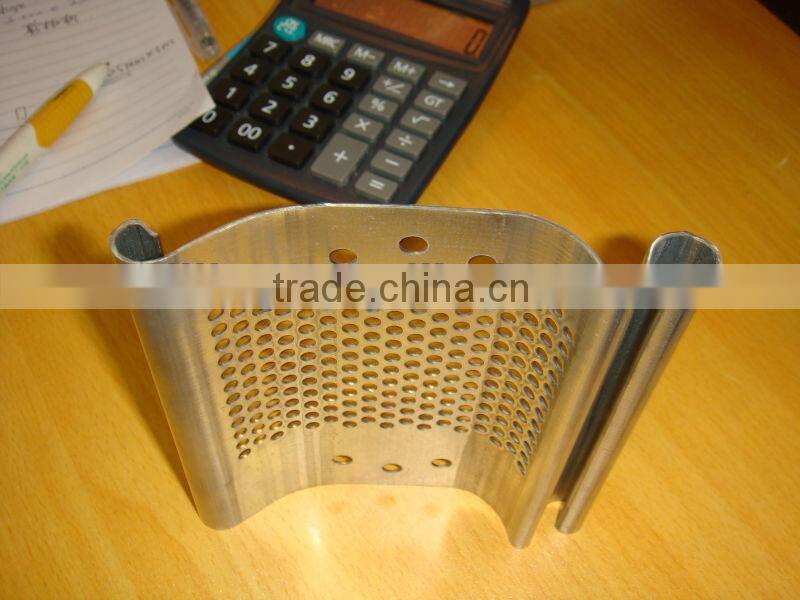

Final product
