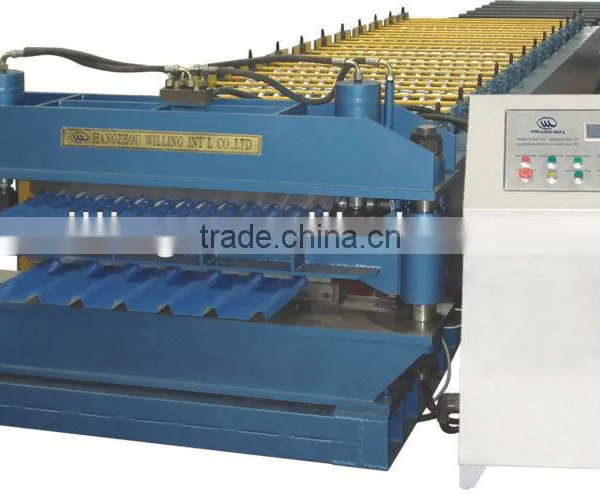

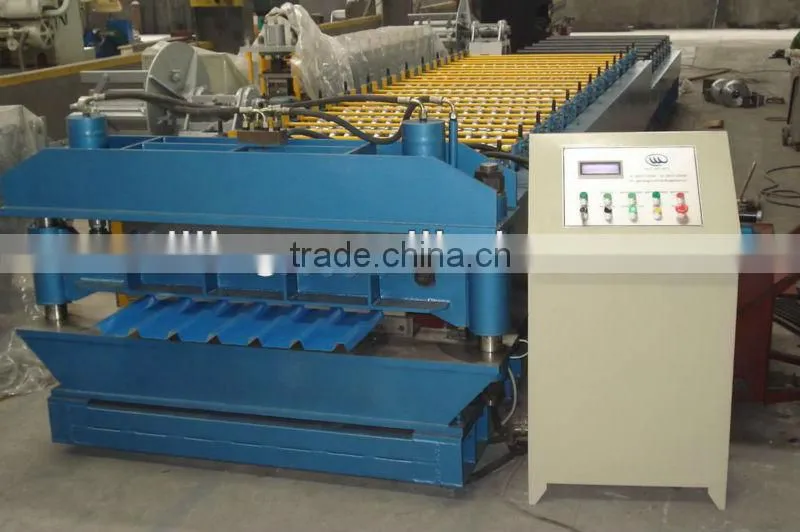

Help CenterDouble Layer Cold Wall/roof Roll Forming Machine
Related Products
-
WLFM35-125-750 Cold Wall/roof IBR Roll Forming MachineUS$ 24,000 - 32,000MOQ: 1 Set -
Double Layer Cold Wall/roof Roll Forming MachineUS$ 24,000 - 32,000MOQ: 1 Set
-
988 High Quality Corrugate Cold Bending Color Steel Roll Forming MachineUS$ 24,000 - 34,000MOQ: 1 Set
-
Shutter Door Roll Forming Machine Price /door Forming MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Interior Partition Board Stud and Track Rollformer, Steel Joist GypsumUS$ 19,000 - 24,000MOQ: 1 Set
Specifications
1. Thickness:0.3-0.7mm2. Strength: Q235-345Mpa
3. Material: galvanized or pre-painted steel sheet
4. Speed:1-15m/min
It can produce two different shapes within one machine.
Components for the Machine
The cold wall/roof IBR roll forming machine consists of simple uncoiler and its base, guiding equipment, sheet flattening rolls, encoder system, roll forming rollers & main frame, post-cut equipment, hydraulic station, PLC control panel and supporter table.
Technical Parameters
Material Spec: pre-painted steel sheet and galvanized steel sheet
Thickness or Coil Stress: 0.3-0.7mm with strength 235-345Mpa
Max. Roll Forming Speed: 0-15m/min
Cutting Tolerance: ±2.5mm (length ≤ 5000mm)
Power Requirement: total power 7kw main motor power 4kw, hydraulic station power 3kw
Uncoiler Capacity: passive uncoiler max capacity: 5000kgs
Voltage: as buyer's requirement
Roller Stations: about 17 stands
Location Space: 8500mm*1500mm*1450mm
Weight: about 6000kg
Rollers manufactured from 45#, CNC lathes, hard chrome coated
Cutting tool material: Cr12 Heat hard treated
Shafts diameter: 70mm
Controller system combined with: PLC, inverter, touch screen, encoder, etc
Controller voltage:24V
