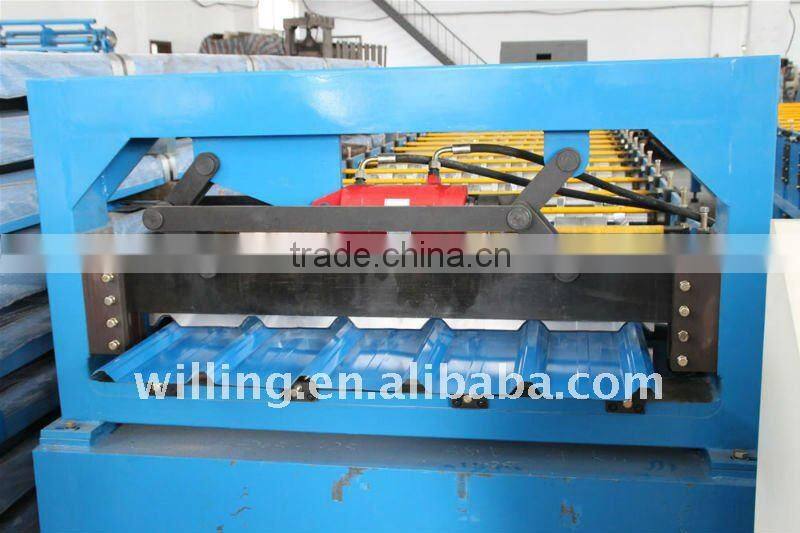

820 type wall/roof IBR cold roll forming machine
- Shanghai/Ningbo China
- T/T
You May Like
-
Double layer forming machine/Roll forming machine/Steel roll forming machine for two designs
-
WLFM15-173-1038 cold wall/roof roll forming machine
-
Double layer cold wall/roof roll forming machine
-
WLFM35-125-750 cold wall/roof IBR roll forming machine
-
Double layer cold wall/roof roll forming machine
-
988 high quality corrugate cold bending color steel roll forming machine
Product Details
| Condition | New | Type | Other, cold metal roll forming machine | |
| Tile Type | Steel | Use | Other, wall and roof | |
| Production Capacity | 0-15m/min | Place of Origin | Zhejiang, China | |
| Brand Name | WILLING | Model Number | WLFM25-205-820 | |
| Power(W) | 7 kw | Voltage | as buyer's request | |
| Dimension(L*W*H) | 8500mm*1500mm*1450mm | Weight | 6000kg | |
| Certification | CE, ISO9001, GMC | Warranty | 12 month |
Product Description
Specifications
1. Thickness:0.3-0.7mm2. Strength: Q235-345Mpa
3. Material: galvanized or pre-painted steel sheet
4. Speed:1-15m/min
Components for the Machine
The cold wall/roof IBR roll forming machine consists of simple uncoiler and its base, guiding equipment, sheet flattening rolls, encoder system, roll forming rollers & main frame, post-cut equipment, hydraulic station, PLC control panel and supporter table.
Technical Parameters
Material Spec: pre-painted steel sheet and galvanized steel sheet
Thickness or Coil Stress: 0.3-0.7mm with strength 235-345Mpa
Max. Roll Forming Speed: 0-15m/min
Cutting Tolerance: ±2.5mm (length ≤ 5000mm)
Power Requirement: total power 7kw main motor power 4kw, hydraulic station power 3kw
Uncoiler Capacity: passive uncoiler max capacity: 5000kgs
Voltage: as buyer's requirement
Roller Stations: about 17 stands
Location Space: 8500mm*1500mm*1450mm
Weight: about 6000kg
Rollers manufactured from 45#, CNC lathes, hard chrome coated
Cutting tool material: Cr12 Heat hard treated
Shafts diameter: 70mm
Controller system combined with: PLC, inverter, touch screen, encoder, etc
Controller voltage:24V
