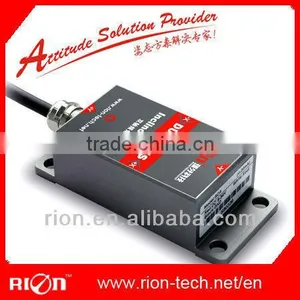

SCA118T Standard Single axis Current Type Inclinometer With 4-20mA Output , Max Tilt Angle +/-180deg , CE /FCC/ROHS Approval

1pcs inner box , 200pcs /ctn

Specifications

1. Measuring Range :1-180deg optional ;
2. Output interface : 4-20mA ;
3. Highly anti-vibration performance >2000g ;

SCA118T Standard Single axis Current Type Inclinometer With 4-20mA Output , Max Tilt Angle  +/-180deg , CE /FCC/ROHS Approval









SPECIFICATIONS



Item No.:SCA118T



Description: Current Type Single-Axis Inclinometer



Version:Ver.08







Production implementation standard reference





• Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101)
• Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level
• The Academy of metrology and quality inspection Calibrated in accordance to: JJF1119-2004 Electronic Level calibration Specification
• Gyro accelerometer test standard: QJ 2318-92 Gyro accelerometer test methods
• Software development reference standard: GJB 2786A-2009 military software development General requirements
• Product environmental testing standards: GJB150
• Electromagnetic anti-interference test standards: GB / T 17626





General Description

SCA118T is a standard industrial output single-axis inclinometer, standard current 4 ~ 20mA output, can be long-distance transmission of up to 2000 meters. The output signal with strong anti-interference, professional be used to work on engineering machinery and equipment in harsh environment. The product uses the latest MEMS sensor production technology for production, made precise compensation and correction to temperature error and nonlinearity error, small measuring range the highest accurate up to 0.03 ° (more precision index, please refer to product Electronic Characteristics), high accuracy , small size, high packaging technology, good capacity to withstand shock and vibration, built-in anti-RF, anti-electromagnetic interference circuit , is particularly suitable for application underground trenchless type of machinery and other harsh industrial environments. In addition to this product is better than the ordinary market product on technical parameters, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level.





Features

• Single-Axis Inclinometer
• Measuring Range :±1~±180° optional

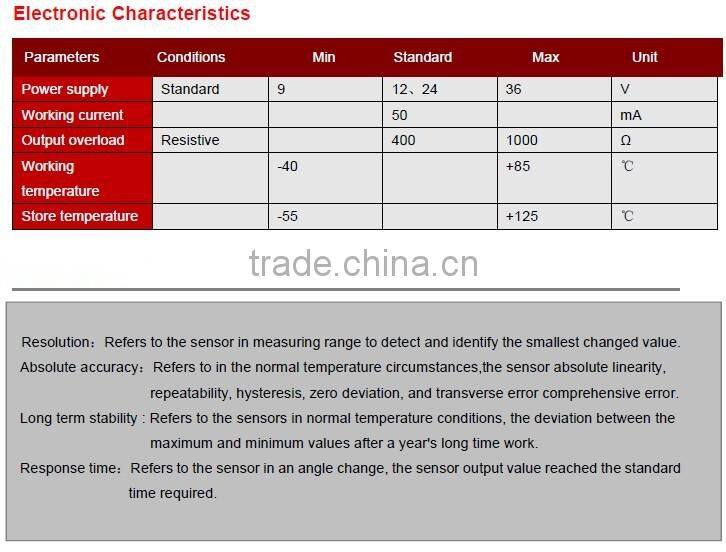

• Accuracy: refer to the technical data
• Wide voltage input: 9~36V
• Output interface : 4-20mA
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration performance >2000g
• Resolution: 0.0025°
• Small Volume : 90×40×26mm(customized)



Application:

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Aerial platform vehicle,lifter safety & protection
• Medical facilities angle control
• Underground drill posture navigation
• Shield pipe jacking application
• Based on the angle direction measurement
• Geological equipment inclined monitoring
• Equipment level control
• Alignment control , curve control
• Directional satellite communications antenna pitching angle measurement
• Mining machinary, oil-well drilling equipment
