LCA320 Low Cost MEMS Based Analog Inclinometer With 0-5V or 0.5-4.5V Optional , No-contact and Can Real Time Output

Specifications

 LCA320  Low cost MEMS Based Analog Inclinometer With 0-5V or 0.5-4.5V optional , No-contact and Can Real Time Output

General Description

The LCA320T series inclinometer which developed by Rion Company is a small volume, low-cost Dual-axis tilt sensor, is a voltage output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, low power consumption, and high consistency and stability of MEMS technology, working temperature up to the industry level -40 to +85, is a ultra-high cost-effective inclination modules.

This product adopts non-contact measuring principle, can real-time output the current posture inclination, simple to use, no need to find the relative variation of the two surface for mounting.Small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration. It Is the ideal choice for industrial equipment and platform measuring attitude

Features

• Dual-Axis Inclinometer
• Measuring range±0°~±90°optional
• Accuacy: refer to the technical data

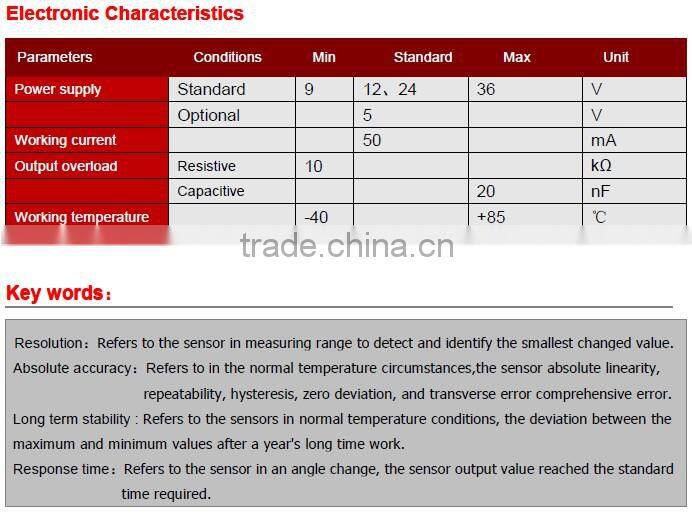

• Wide voltage input: 9~36V

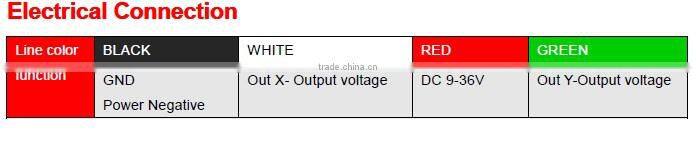

• Output interface :0~5V
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration perfermance >3500g
• Resolution: 0.05°

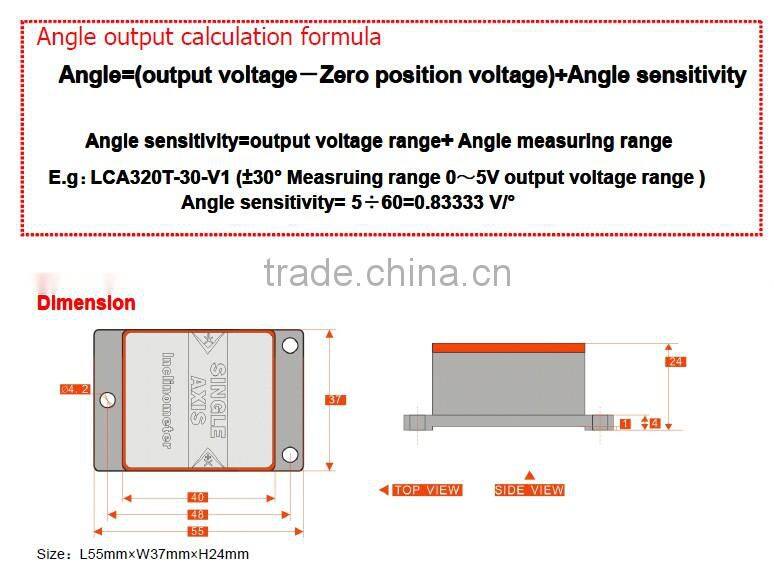

• Small Volume : 55×37×24mm(customized)

Application

• Electric blind man chair leveling
• Cloud deck operating monitor
• Satelite antenna positioning
• Medical equipment leveling
• Car Chassis Measurement
• Four - wheeled positioning system
• engineering mechanical measurement of dip angle

Our Company & Workshop View :

Certificates & Test Reports :

We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests

 Our main products :

• Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc.  )
•  2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
• 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
• 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
• Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
• High performance MEMS Mini AHRS ( Attitude Heading Reference System )
• Other Agent Products PNI...etc
