Specifications
Super High Precision Inclinometer1.Dual-Axis Inclinometer
2.Measuring Range :+/-1 - +/-3ded optional
3.Highly anti-vibrat

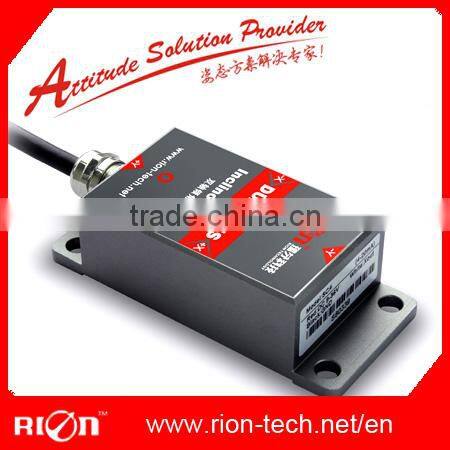

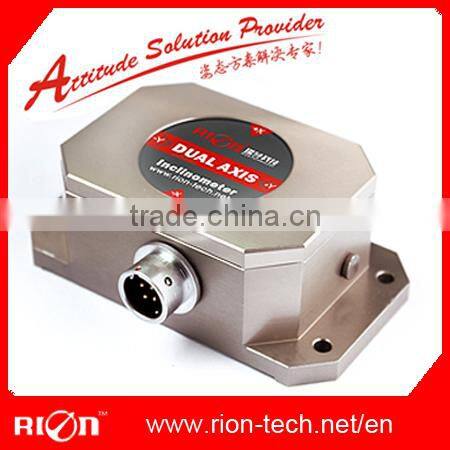

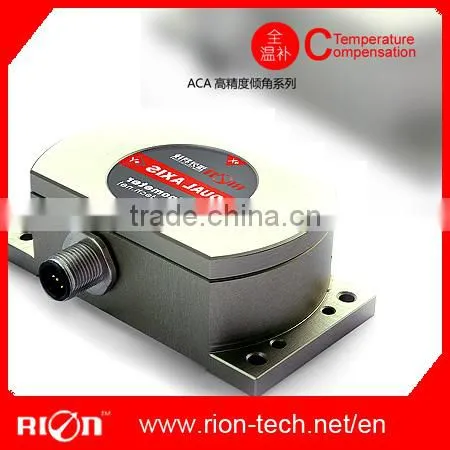

ACA826T Super High Precision Slope Sensor With Full Temperature Compensation High Resolution 0.0005deg
General Description

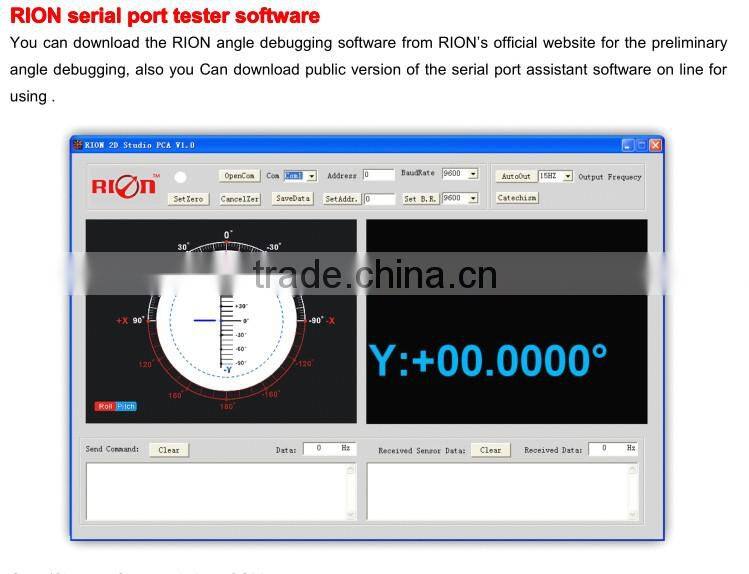

ACA826Tis a full temperature compensation & high accuracy dual-axis inclinometer which professionally developed by Rion Company to the field of high precision level measurement and leveling field , the maximum measuring range is± 3 °, high resolution 0.0005 °, can completely replace the traditional high-precision level meter. Digital signal transmission, matched with professional computer software, data measure and record correctly,output interface RS485, RS232, TTL, PWM or CAN 2.0B optional.Non-contact installation features make ACA826T with superior system integration, convenient installation only need fix the sensor on the measured surface by screws , then can automatically calculate the object horizontal inclined angle, easy to use .With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage.
Features
- Dual-Axis Inclinometer
- Measuring Range :±1~±3° optional
- Size:L92×W48×H36mm
- Wide voltage input: 9~36V
- Wide temperature working: -40~+85°C
- IP67 protection class
- Resolution: 0.0005°
- Water-proof air-plug
- Highly anti-vibration performance >2000g
- Output mode RS232,RS485,RS422,TTL,CAN 2.0 are optional
Application:
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Laser equipment position
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Precise machine tool level control
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
Related or similar products :
Model : ACA628T / ACA620T High Accuracy Inclinomete With Full Temperature Compensation
Desc. : High Accuracy Dual axis Current Type Inclinometer (4-20mA output)
Desc. : High Accuracy Dual axis Voltage Type Inclinometer (0-5V /0.5-4.5V output)
Resolution : 0.001deg
Max Measuring range : +/-30deg
Best Accuracy : 0.002deg based on range+/-3deg range
Temperature Drift : 0.0008 °/°C
Enclosure material : Full Metal Jacket

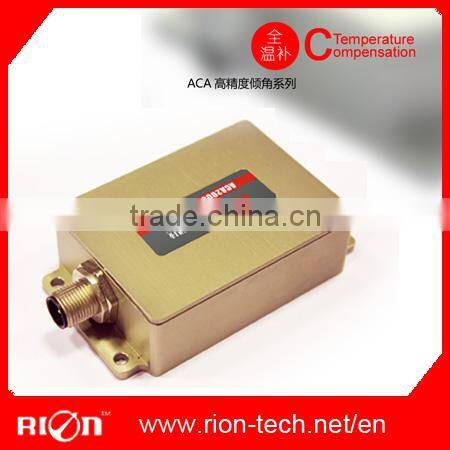

Model : ACA2000 High Accuracy & Resolution Digital Inclinometer With Full Temperature Compensation
Resolution: 0.0001deg
Output interface port: RS232 / RS485 / TTL ...etc optional
Max Measuring Range : +/-30deg
Best Accuracy : 0.002deg based on +/-3deg range
Temperature Drift : 0.0008 °/°C
Enclsoure Material : Full Metal Jacket
Product size : L93.8*W55.5*H20.5mm
Product weight : 150g (withtout cable set)
Packing size : 23*23*23cm
Packing weight : 0.5-1KGS
Model : HCA526T High Accuracy Dual-axis Digital Inclinometer
Resolution: 0.001deg
Output interface port: RS232 / RS485 / TTL ...etc optional
Max Measuring Range : +/-30deg
Best Accuracy : 0.002deg based on +/-3deg range
Temperature Drift : 0.002 °/°C
Enclsoure Material : Full Metal Jacket
Product size : L90*W50*H28mm
Product weight : 150g (withtout cable set)
Packing size : 23*23*23cm
Packing weight : 0.5-1KGS
Model : SCA126T Standard Dual-axis Digital Inclinometer
Resolution: 0.01deg
Output interface port: RS232 / RS485 / TTL ...etc optional
Max Measuring Range : +/-90deg , +/-180deg(For Single axis only)
Best Accuracy : 0.02deg based on +/- 5deg range
Temperature Drift :+/- 0.006 °/°C
Enclsoure Material : Full Metal Jacket
Product size : L90*W40*H22mm
Product weight : 120g (withtout cable set)
Packing size : 23*23*23cm
Packing weight : 0.5-1KGS
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI ...etc
Other more information please visit our website : or www.rion-tech.us
Now please contact us through below methods for your any requirement or comments !
Contact person : Ms kity(sales)
SHEN ZHEN RION TECHNOLOGY CO.,LTD
Factory Address:
3F/Block 5, HuaFeng Tech- Park, Xin'an Road 6 #, BaoAn Dis. Shenzhen, China
Tel : +86-755-29657137 ext 807 Cell phone: 15625295088
Fax : +86-755-29123494 MAIL: kiting AT
Skype: sz_rion_tech MSN: tradeofchina AT
RIONWEB: ALIWEB: http://rion.en.china.cn
