General Description
SCA110T is a single axis inclinometer with analog voltage output, the user simply collecting the inclinometer voltage value then can calculate the inclination of the current object. Built-in (MEMS) micro solid pendulum into angle changes by measuring the static gravity field changes, changes in mode output voltage (0-5V). Mainly used to measure the inclination of the object with respect to the horizontal plane.
This product uses non-contact measurement principle, can real-time output current posture inclination, non-contact inductive measuring principle, simple installation. Latest MEMS inclinometer productive technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!
Features
1.Single-Axis Inclinometer
2.Measuring Range :±1~±180° optional
3.Accuracy: refer to the technical data
4.Wide voltage input: 9~36V
5.Output interface :0~5V
6.Wide temperature working: -40~+85°C
7.IP67 protection class
8.Highly anti-vibration performance >2000g
9.Resolution: 0.0025°

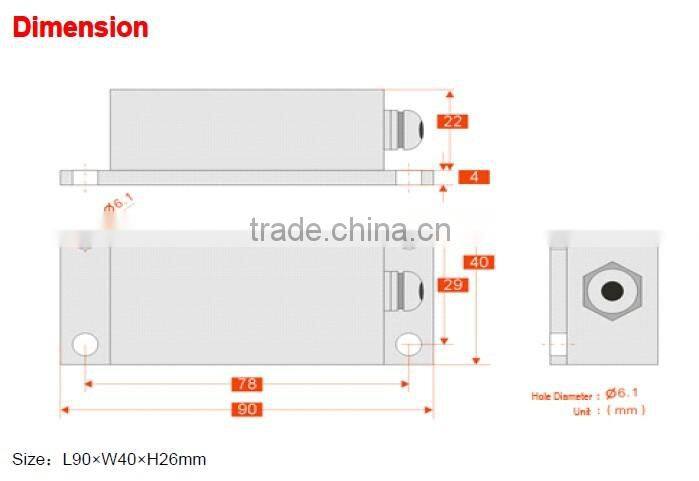

10.Small Volume : 90×40×26mm(customized)
Application:
1.Engineering vehicles automatic leveling
2.Bridge & dam detection
3.Aerial platform vehicle,lifter safety & protection
4.Medical facilities angle control
5.Underground drill posture navigation
6.Shield pipe jacking application
7.Based on the angle direction measurement
8.Geological equipment inclined monitoring
9.Directional satellite communications antenna pitching angle measurement
10.Mining machinary, oil-well drilling equipment
11.Equipment level control
12.Alignment control , curve control

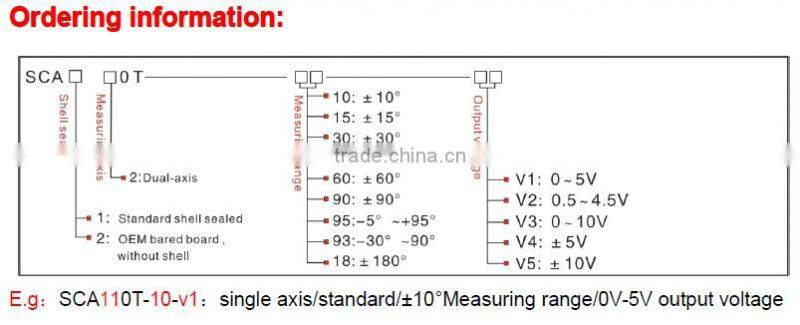

Technical Data
Parameters |
Conditions |
SCA110T-10 |
SCA110T-30 |
SCA110T-60 |
SCA110T-90 |
UNIT |
| Measuring range | ±10 | ±30 | ±60 | ±90 | ° | |
| Measuring axis | X | X | X | X | ||
| Zero output | 0° output | 2.5 | 2.5 | 2.5 | 2.5 | V |
| Resolution | 0.01 | 0.01 | 0.01 | 0.01 | ° | |
| Absolute accuracy | 0.02 | 0.05 | 0.08 | 0.1 | ° | |
| Long termstability | 0.05 | 0.05 | 0.05 | 0.05 | ||
| Zero temp. coefficient | -40~85° | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/ºC |
| Sensitivity temp. coefficient | -40~85° | ≤100 | ≤100 | ≤100 | ≤100 | ppm/ºC |
| Power on time | 0.5 | 0.5 | 0.5 | 0.5 | S | |
| Response time | 0.05 | 0.05 | 0.05 | 0.05 | s | |
| Response frequence | 1~20 | 1~20 | 1~20 | 1~20 | Hz | |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000hours/times | |||||
| Insulation Resistance | ≥100M | |||||
| Shockproof | 100g@11ms,3Times/Axis(half sinusoid) | |||||
| Anti-vibration | 10grms,10~1000Hz | |||||
| Protection glass | IP67 | |||||
| Cables | Standard 1M length,wearproof,grease proofing,wide temperature,Shielded cables4*0.4mm2 | |||||
| Weight | 110g(without cable) | |||||
Electronic Characteristics
Parameters |
Conditions |
Min |
Standard |
Max |
Units |
| Power supply | Standard | 9 | 12,24 | 36 | V |
| Optional | 5 | V | |||
| Working current | 30 | mA | |||
| Output overload | Resistive | 10 | kO |
||
| Capacitive | 20 | nF | |||
| Working temperature | -40 | 85 | ºC | ||
| Store temperature | -55 | 100 | ºC |
Electrical Connection
| Line color function | BLACK | WHITE | GREEN | RED |
| GNDPower Negative | OutX-output volatge | NC | DC9~36V |
