Specifications
1.Single-Axis Inclinometer2.Measuring Range :+/-1~+/-180deg optional
3.esolution: 0.01
Digital Inclinometer Manufacturer Providing All Kinds of Tilt Sensors With Very Competitive Price Based On High Quality , CE ...
SPECIFICATIONS

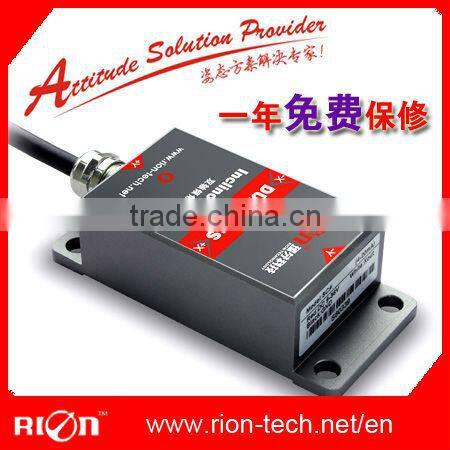

Item No.:SCA116T
Description:Digital Type Single --Axis Inclinometer
Version:Ver.08
Production implementation standard reference
1. Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101)
2. Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level
3. Tilt sensor measurement colleges quasi-standard: JJF1119-2004 Electronic Level calibration Specification
4. Gyro accelerometer test standard: QJ 2318-92 Gyro accelerometer test methods
5. Software development reference standard: GJB 2786A-2009 military software development General requirements
6. Product environmental testing standards: GJB150
7. Electromagnetic anti-interference test standards: GB / T 17626
General Description
SCA116T is a serial output single-axis inclinometer launched by RION company to the field of industrial control, built-in high-precision 16bit A / D differential converter, through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt or pitch tilt. The output interface RS485, RS232, RS422, TTL, PWM are optional.
Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 18Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment.
Features:
1.Single-Axis Inclinometer
2.Measuring Range :±1~±180° optional
3.Accuacy: refer to the technical data
4.Wide voltage input: 9~36V
5.Wide temperature working: -40~+85°C
6.Resolution: 0.01°
7.IP67 protection cla
8.Highly anti-vibration perfermance >2000g
9.Direct lead cable interface
10.Small size :90×40×26mm(customized)
11.Output mode RS232/RS485/TTL/PWM/CAN 2.0B/IIC (optional)
Application:
1.Satellite positioning Search
2.Rail-mobile monitoring
ing mechanical measurement of dip angle
4.oil-well drilling equipment
5.Radar detection of vehicle platform
6.Underground drill posture navigation
7.Gun Barrel angle measurement in early shooting
8.Based on the angle direction measurement
9.Satellite communications vehicle posture detection
10.Shield pipe jacking application
11.Ship’s navigation posture measurement
12.Geological equipment inclined monitoring
