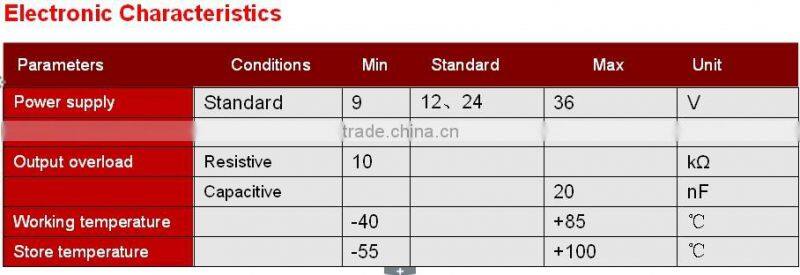

Specifications
1. Resolution: 0.001;2. Accuracy : 0.002 ~0.01deg;
3. Working Temp.: -40 ~ +85C ;
4. IP67

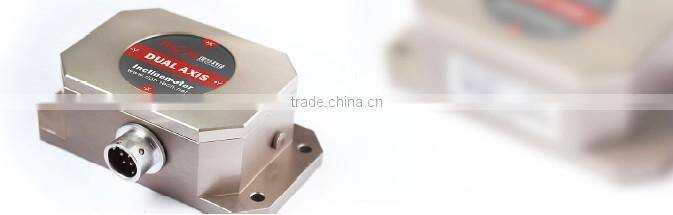

HCA510T High Precision Single/dual axis Analog Inclinometer With Full Temperature Compensation From Shenzhen Factory
General Description

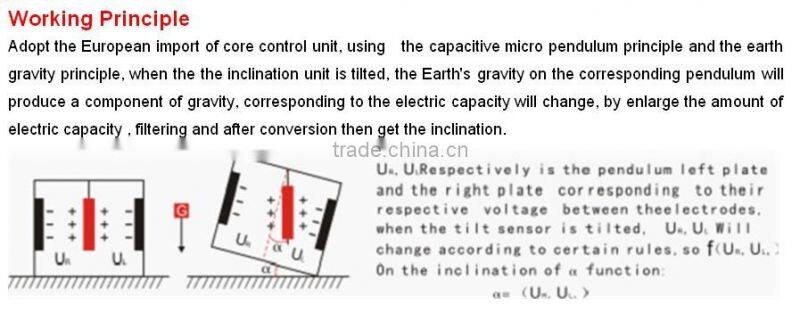

HCA510T is a high accuracy single axis inclinometer with analog voltage output,small measuring range and the highest precision up to 0.003 °, it is one of the few high-precision inclinometers in mainland. It is mainly used to measure the inclination of the object with respect to the horizontal plane , built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change, the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.
This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!
Features
- Single-Axis Inclinometer
- Measuring Range :±1~±90° optional

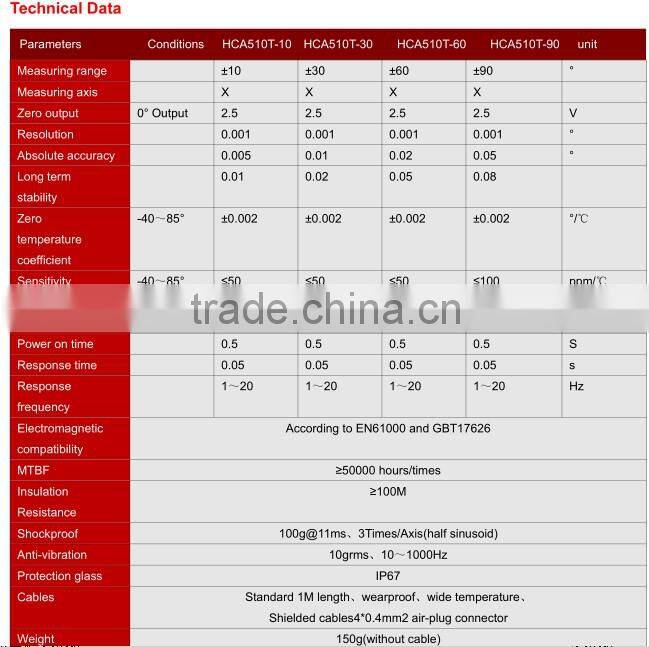

- Accuracy: refer to the technical data
- Wide voltage input: 9~36V

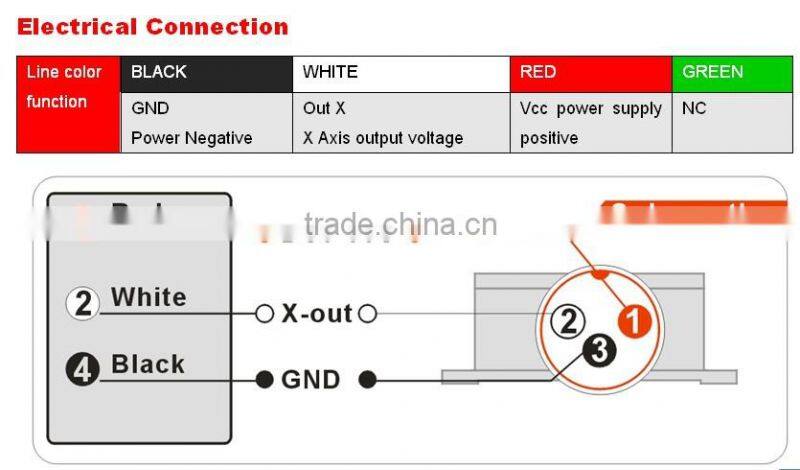

- Output interface :0~5V
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration performance >2000g
- High Resolution: 0.001°

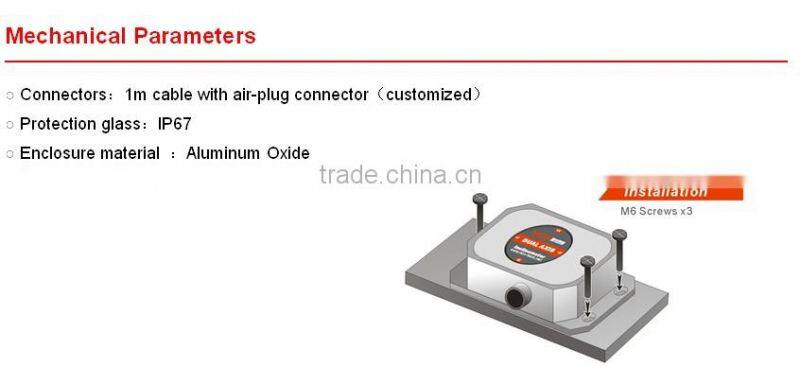

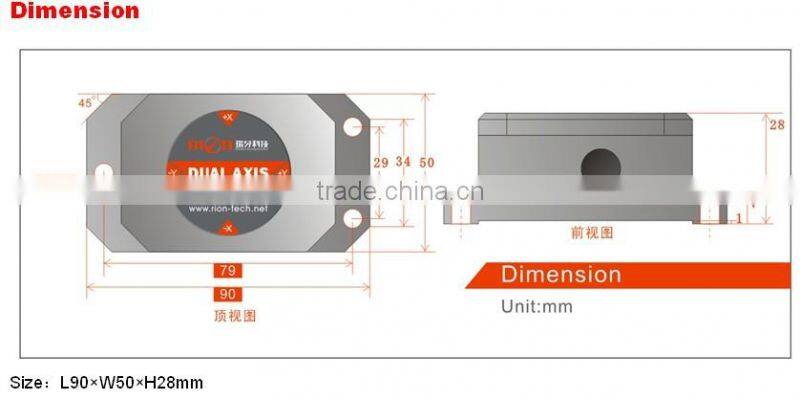

- Small Volume : L90mm×W50mm×H28mm(customized)
Application
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Aerial platform vehicle,lifter safety & protection
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Based on the angle direction measurement
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
- Mining machinary , oil-well drilling equipment
- Equipment level control
- Alignment control , curve control
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
