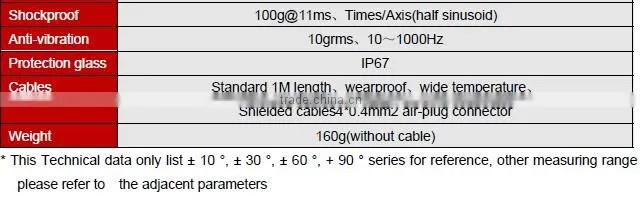

Specifications
MEMS Tilt Sensor1.Measuring Range : +/-1 ~+/-30deg
2.Output interface :0~5V
3. Accuracy : 0.002deg
4.High Resolution: 0.
ACA620T High Anti-Vibration Dual axis Tilt Sensor With Excellent Temperature Stability And Auto Calculate It's Posture
General Description
ACA620T is a high precision & full temperature compensation dual-axis inclinometer with analog voltage output, high-precision 24bit A / D differential converter inside the product, to ensure the the products output voltage signal linearity, and users no need to do linearity correction by themselves in the future , install then to use, stability and reliability ! In addition, because of ACA620T system integrates high-resolution temperature sensor, with the MCU central processing system secondary temperature compensation, full temperature zero drift can be controlled to 0.0008 °/°C ,normal temperature small measuring range the most accurate up to 0.002 °, in domestic the counterparts products with absolute competitive advantage.

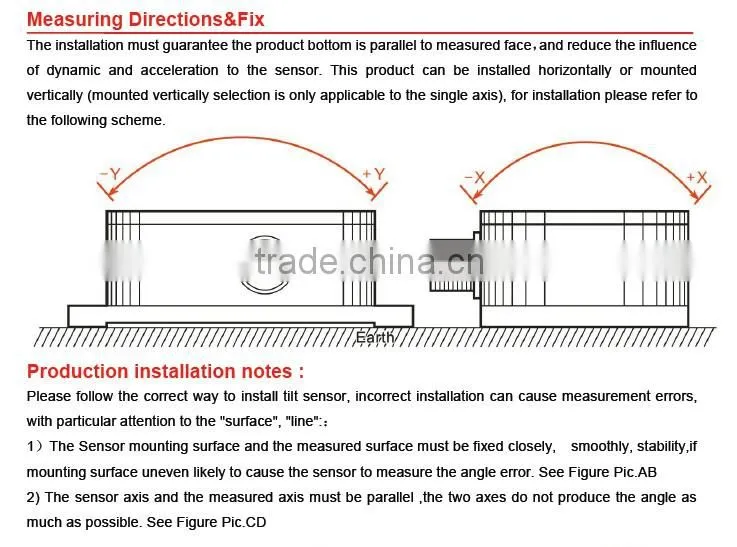

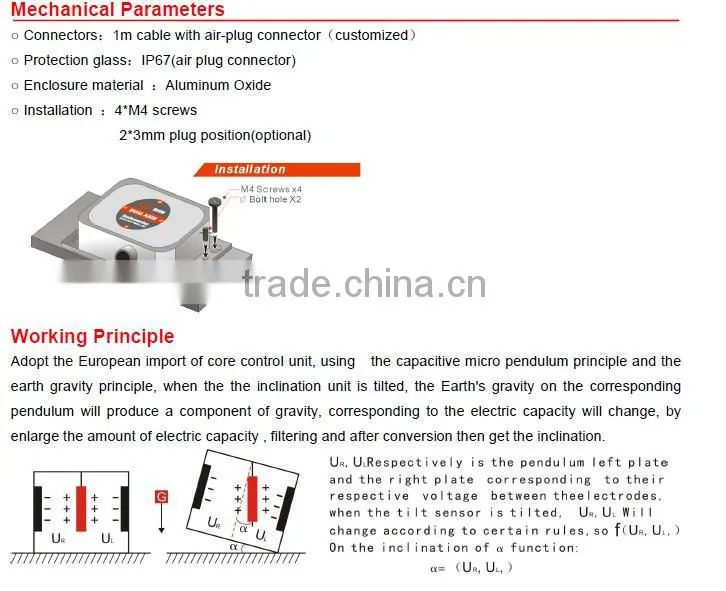

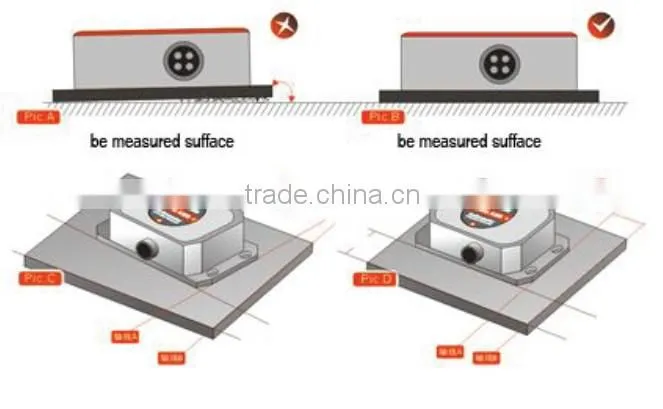

Non-contact installation features make ACA610T with superior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to operate, easy to install. Newest MEMS high-technology for production , high-precision, small size, with strong ability resistance to external electromagnetic interference and to withstand shock and vibration, has been widely used in the industrial and military fields!
Features
- Dual-Axis Inclinometer
- Measuring Range :±1~±30° optional
- Accuracy: refer to the technical data
- Wide voltage input: 9~36V
- Wide temperature working: -40~+85°C
- IP67 protection class
- Highly anti-vibration performance >2000g
- High Resolution: 0.001°
- Temperature drift 0.0008°/°C
Application:
- Engineering vehicles automatic leveling
- Bridge & dam detection
- Precise instrument level control
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Based on the angle direction measurement
- Geological equipment inclined monitoring
- Directional satellite communications antenna pitching angle measurement
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
