Specifications

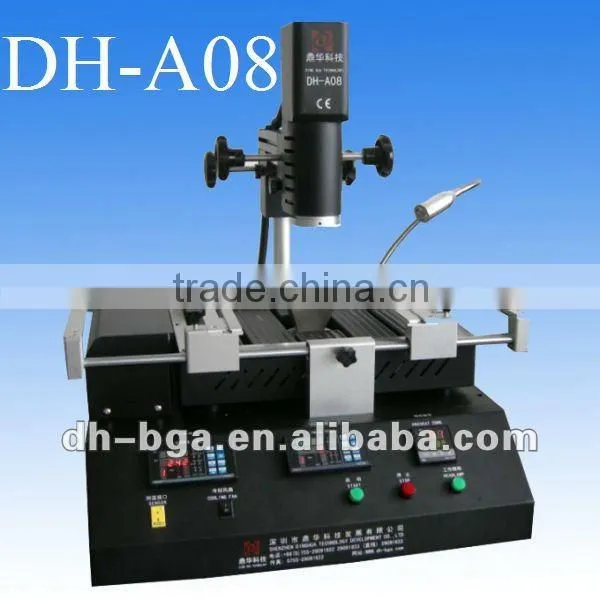

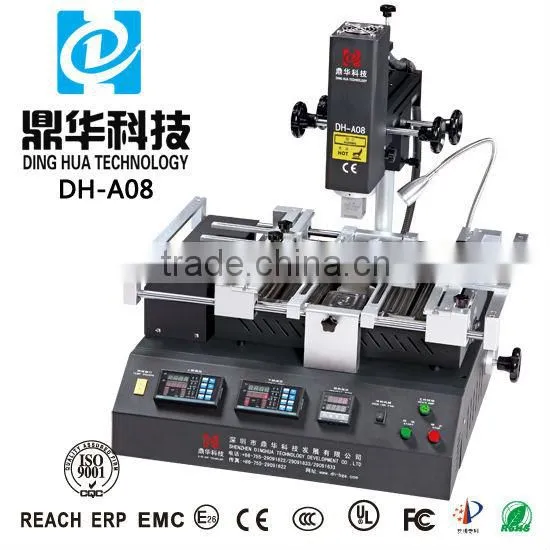

3 independent heaters, paneled operation, the upper can be moved freely. And the bottom can be moved freelyBrand New DH-A08 IRDA Infrared Welder Station 220V/110V For Optional
Main Functions:

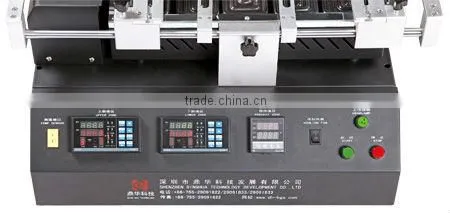

1.Uses LED monitors control-all the data adjustments, control and display are digitally presented in s clear and convenient fashion

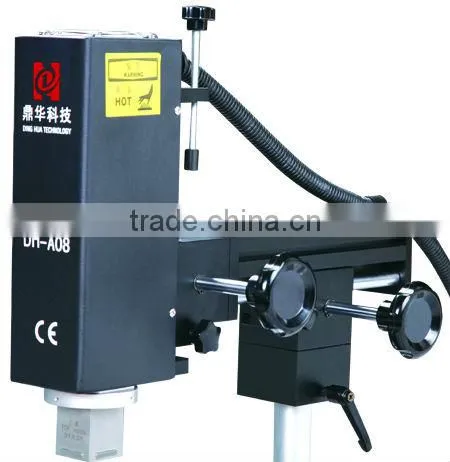

2.this machine uses dual temperature control with wind heating for the upper part and IR heating for the lower part.
3.It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 degC.

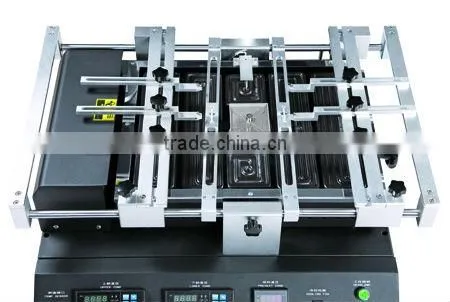

4.V-groove PCB support for rapid, convenience ad accurate positioning that fits for all kinds of PCB boards
5.Flexible and convenient removable fixture on the PCB board which protects and prevent damage to PCB
6.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement
7.6 segment temperature up(down) +6 segment constant temperature control

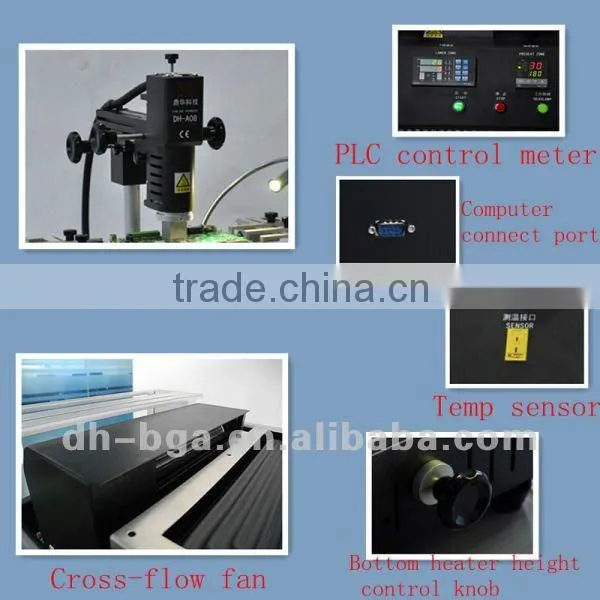

8.Before the completion of uninstalling or welding, voice reminder/warning to get the workers prepared. After uninstalling or welding ,high capacity horizontal airflow fan manually or automatically cools down PCB to prevent PCB deformation and ensure quality if welding
9. CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Speicfication
Power |
4800W |
Top heater |
Hot air 800W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Power supply |
AC220V±10% 50/60Hz |
Dimension |
L570*W600*H600mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K-type thermocouple, closed loop controlled |
Temp accuracy |
±2°C |
PCB size |
Max 360mm*350mm Min20mm*20mm |
BGA chip |
5*5~55*55mm |
Minimum chip spacing |
0.15mm |
Temperature Sensor |
1(optional) |
Net weight |
About 30kg |
More Picture
