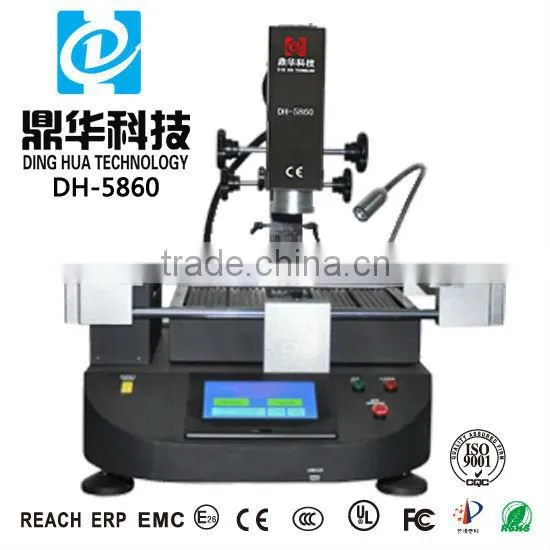

Help CenterHi Quaility BGA Repair Station DINGHUA DH-5860 for Mobile,PC,CCD Camera Motherboard Repair
Related Products
-
Promotions Top Quility DINGHUA BGA Rework Station DH-A1L For Mobile,Laptop ,Camera Motherboard RepairUS$ 1,300 - 1,400MOQ: 1 Set -
Motherboard Iphone 4/4S/5/5S BGA Chip Reuse Machine DH-A2US$ 1 - 5,500MOQ: 1 Set
-
Low Cost Mobile,Laptop Repair Machine DINGHUA BGA Rework Station DH-B1US$ 850 - 1,000MOQ: 1 Set
-
Hot Selling BGA Rework Station DH-B1US$ 2,200 - 3,200MOQ: 1 Set
-
HD Touch Screen Control BGA Rework StationUS$ 2,200 - 3,000MOQ: 1 Set
Specifications
Three heating zones,touch screen ,top heating can be moved up and down,back and front,bottom heating move up to move up and down1.Three heating zones
2.touch screen
3.Hot wind and infrard heating
Three Heating Zone Non-Optical BGA Rework Station DH-5830
Specification
1 |
Total Power |
4800W |
2 |
Top heater |
800W |
3 |
Bottom heater |
2nd heater 1200W,3rd IR heater 2700W |
4 |
Power supply |
AC220V±10% 50/60Hz |
5 |
dimension |
630×650×690mm |
6 |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
7 |
Temperature control |
(K Sensor) closed loop, independent heating, precision within ±3degree |
8 |
PCB size |
Max 410×370mm Min 20×20 mm |
9 |
Electrical selection |
Highly sensitive temperature control module+Touch screen (Taiwan)+Delta PLC |
10 |
Weight |
40kg |
Mainly Feature
1.Adopt liner slide which makes X,Y,Z axis all can do precision adjustment or fast positioning, with high positioning accuracy and fast maneuverability
2.high definition touch screen (Taiwan) , PCL control, can save multiple groups profile, password protection and modify function, and can save multiple groups profile, equipped with instant temperature curve analysis function

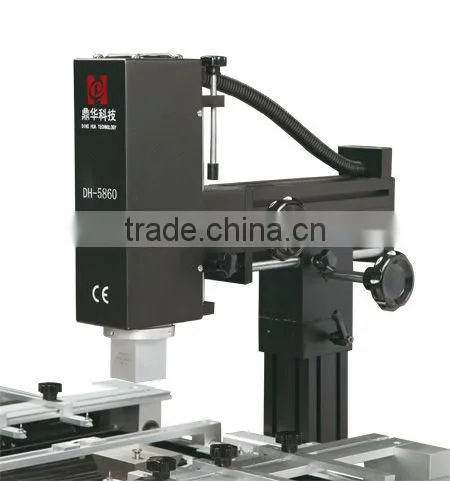

3.There are 3 independent heating areas from top to bottom. The 1st and 2nd are hot-air heaters, the 3rd is IR preheating, temperature controlled within ±3 degree; Top heater can be adjusted freely, second heater can be adjusted up and down, top and bottom temperature can control many groups and sections of temperature parameters at the same time; the third IR heater can be adjusted the power consumption

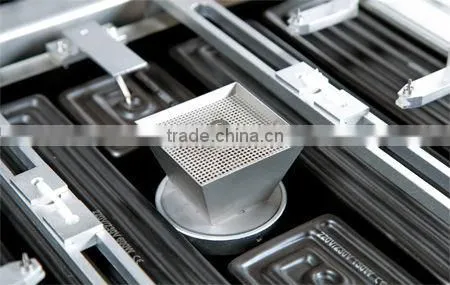

4. Offer all kinds of hot-air nozzle, it can rotate 360°,With magnet, easy to install and change, customized is available,Bottom IR heater ensure an even heat for PCB board.
5. Choose imported high-precision K-type thermocouple, closed loop control and automatic temperature compensation system, combined PLC module for the precision control of temperature.

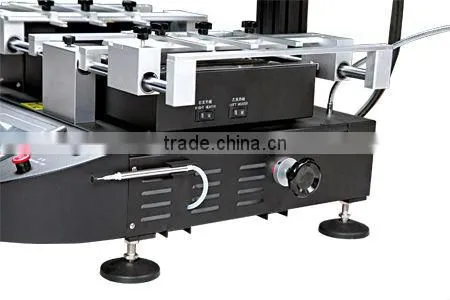

6. Use a V-groove equipped with a flexible fixture for PCB positioning to protect the PCB from deformation when heated or cooled, and it can rework for any BGA package size
7. powerful cross-flow fan rapidly cool the PCB board to improve efficiency, Also built-in vacuum pump and external vacuum suction pen, pick up the chips rapidly,
8.After finishing desoldering & soldering, There is an alarming and alarming in advance,
9.CE certificate, with emergency stop and Automatic power-off protection device when abnormal accident happens,with a double over-heating protection control,
10.CCD vision system, accurate judgments on the melting process during the BGA soldering and desoldering, provide critical vision.
Have Got CE&ISO Certification
Our Package&Service
Security firm packing, prompt delivery ,goods accurate and timely arrival
After-Service
3 years warranty
All parts repaired free during the warranty period
Technical Support of Engineer to anywhere oversea

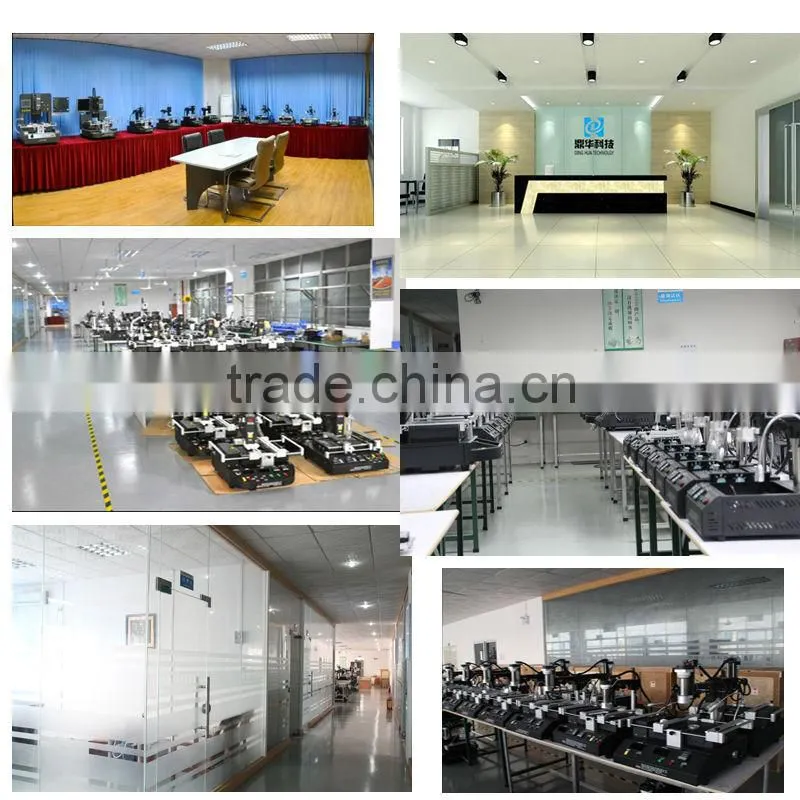

Company Profile
DingHua Technology is a manufacturer which specialized in design and research, test and manufacture, sales and service of BGA Rework stations(such as infrared BGA rework stations and hot air BGA rework stations, and semi-automatic BGA rework stations), soldering stations, desoldering stations, reflow ovens, pre-heaters, BGA reballing kits, BGA reballing stencils, different kinds of main board rework jigs, BGA solder flux, BGA solder balls, BGA soldering wires, high temperature tapes and so on. they are widely used in more than 80% BGA rework areas such as mobile phones, computers, laptops, Switches, game consoles like Wii, Xbox, PS3
DingHua products obtaion ISO9001:2000, CE certification and they are mainly exported to Europe, America, Mexico, Brazil, Australia, South Africa and Southeast Asia,
