Specifications

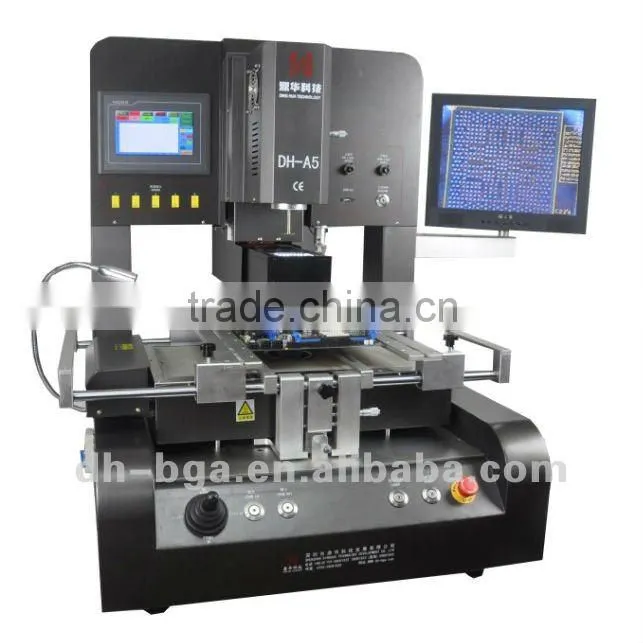

applying to rework BGA on all kinds of PCBA, like computer or laptop's motherboard, xbox's motherboard, smart phone's motherboarDH-A5
1 Full Automatic HD CCD optical alignment, laser positioning.
2 HD touch screen control
3 Three indepent heaters, top hot air 1200W, bottom hot air 1200W, IR preheater 3900W
4 K-sensor close loop control with automatic temperature compensation system
5 Equiped with 5 high presision thermocouple
6 Temperature accuracy: ±2°C
7 Workbench fine-tuning: ±15mm forward/backward, ±15mm right/left
8 Placement Accuracy : ±0.01MM
9. Powerful cross flow 10 Preheating area: 250*500mm and the preheating area can be controlled with swith
11.machine dimension:(L*W*H):950*750*950mm
12 Packing dimension: (L*W*H): 110*90*110cm
13 NW/GW: approx 91/116 KG
Our company profile
Shenzhen Ding Technology Development Co., Ltd. is a collection development, production, sales and service in one of the professional BGA rework station, BGA rework BGA tools and peripheral equipment manufacturers, BGA rework station marketing to individual repair, industrial and mining enterprises, teaching and research , military manufacturing, aerospace and other fields, and in the domestic and foreign has established sales network and improve the corresponding terminal Services!
Our certification
If any inquiry ,please contact us freely
our service and warraty is like this:for the whole machine,warranty is 1 year, in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available
about how to use machine,we will supply manual with machine,we also have video .
the extra equipments will be provided with machine is the spare parts,like universial fixture,hot air nozzles,stencils
we have reballing fixture to reballing the old south/north bridge,make it can be used after reballing.
anyway,if you have quetion,just feel free to contact me.
