Specifications
On the base of DH-A1, soldering iron and laser alignment, two LED working light more, improve work efficiencyDH-A1L/DINGHUA
Specification
Power supply |
AC220V±10% 50/60Hz |
Power |
4800W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K-sensor closed loop control, independent heating |
Temp accuracy |
±2 °C |
PCB size |
Max 500*400 mm Min 22*22 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Machine dimension |
(L*W*H): 650*680*600mm |
Packing dimension |
(L*W*H): 75*75*63cm |
NW/GW |
45/60 KG |

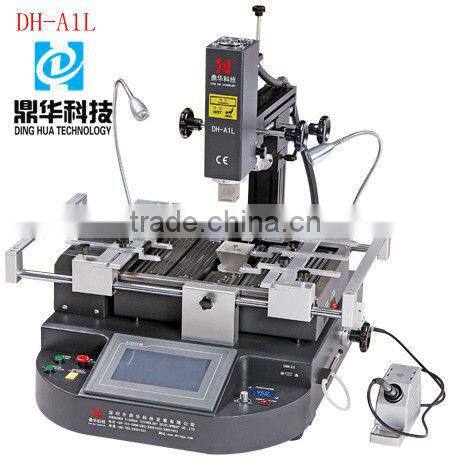

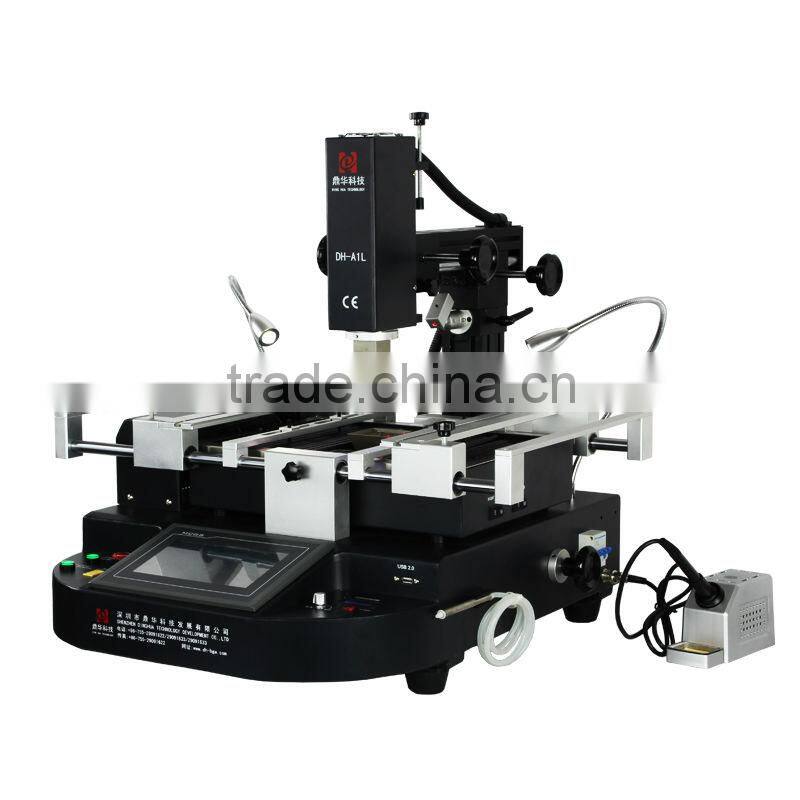

Product Diagram Picture
DH-A1LMain Features
1.Laser Assist position system,

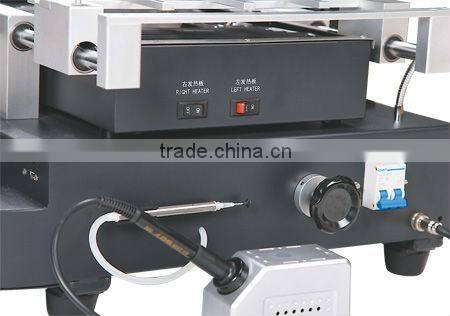

2.Integrated high precisely digital solderingiron.
3.USB 2.0 connect, can be controlled by mouse.

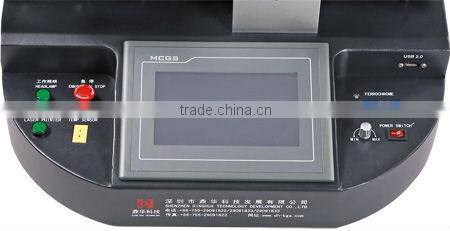

4.HD touch screen interface, PLC control.
5.Three independent heatersall can set 8 segments heating, cooling and constant,
temperature, saved temperature profile is unlimited. IR preheat area can be controlled,
according to PCB size
6.K-sensorcloseloopcontrolandautomatictemperaturecompensationsystem.Itcombine,
swithtemperaturemodule,whichenablestemperature accuracy to ±2°C

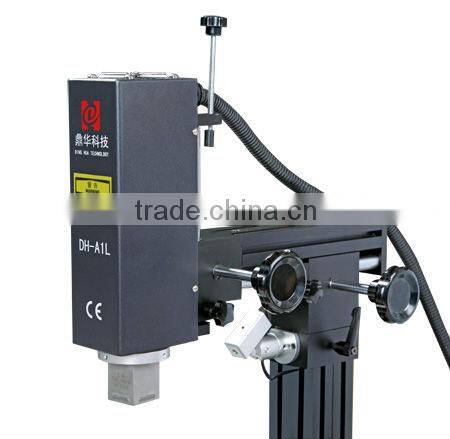

7.Moveable heater, easy to operate.
8.Hot air nozzles,360 degree rotation, easy to install and replace, customized is available.

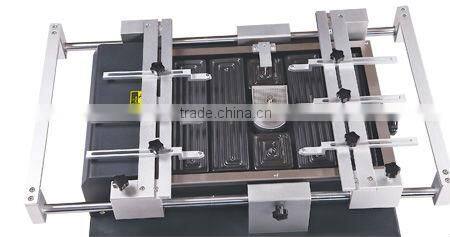

9.V-groove PCB supportfor rapid, convenience and accurate positioning that fits for all kinds,
of PCB board.
10.Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from
deformation.
11.Sound hint system. There is an alarm before thecompletion of each desoldering and
soldering.

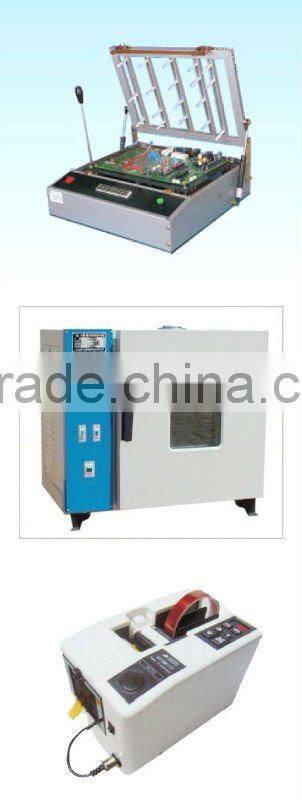

Spare Parts&Accessory
Company Profile
Dinghua is a manufacturer which specialized in design and research, test and manufacture, sales and service of BGA Rework stations with experience over 7 years,the products is widely used for widly used for mobile phones, computers, laptops, Switches, game consoles like Wii, Xbox, PS3
Our Package &Service
If you have any inquiry ,pls feel free contact us,we would like at your service at any time
Sincerly hope in furture we can work together
Thanks for your support
Shenzhen Dinghua Technology Development Co.,LTD.
Add:3rd Floor,46#Building,Dayantian industrial District,Wanfeng Village,Shajing Town,Bao`an Area,Shenzhen,China
Tel:+86-0755-29091833 Fax:+86-0755-29091833
skype:dinghuabga
