Help CenterLow Cost Mobile,Laptop Repair Machine DINGHUA BGA Rework Station DH-B1
Related Products
-
Hot Selling BGA Rework Station DH-B1US$ 2,200 - 3,200MOQ: 1 Set -
HD Touch Screen Control BGA Rework StationUS$ 2,200 - 3,000MOQ: 1 Set
-
Wholesale DINHHUA-A4 Pcb Repair Machine for Laptop/ps3/motherboard/mobileUS$ 1 - 22,000MOQ: 1 Set
-
Automatic HD CCD BGA Rework StationUS$ 2,000 - 3,000MOQ: 1 Set
-
Three Temperature Zones Optical Models BGA Rework StationUS$ 2,000 - 3,000MOQ: 1 Set
Specifications

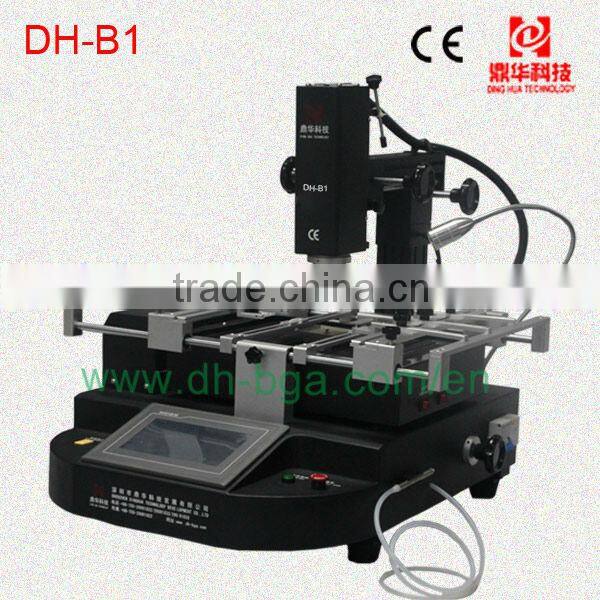

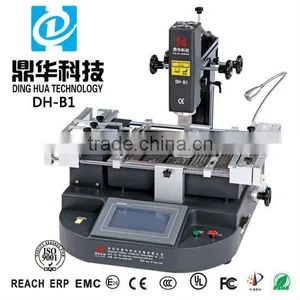

3 Independent heaters with HD touch screen, the upper can be moved freely, the bottom can be moved from up and downThree Heating Zone Optical PCB board Repair BGA Rework Station DH-B1
Its structure: the touch screen of three heating zones around can be moved up and down ,also front and back,the bottom heating zone can moved up and down

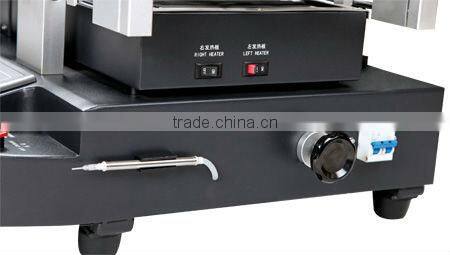

More picture of product(different part)
Its specification
Power supply |
AC220V±10% 50/60Hz |
Power |
4800W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K-sensor closed loop control, independent heating |
Temp accuracy |
±2 °C |
PCB size |
Max 500*400 mm Min 22*22 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Machine dimension |
(L*W*H): 650*680*600mm |
Packing dimension |
(L*W*H): 75*75*63cm |
NW/GW |
45/60 KG |
B1 Main Features

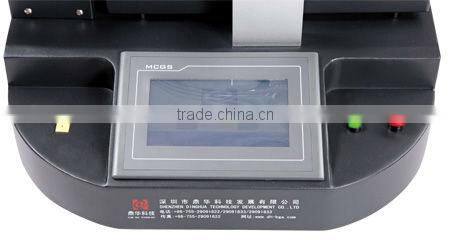

1.HD touch screen interface, PLC control.
2.Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
K-3.sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C

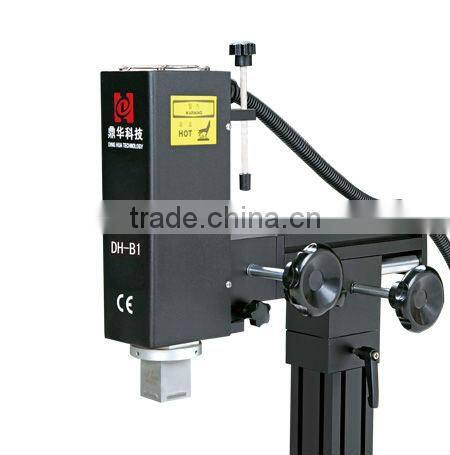

4.Moveable heater, easy to operate.
5.Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

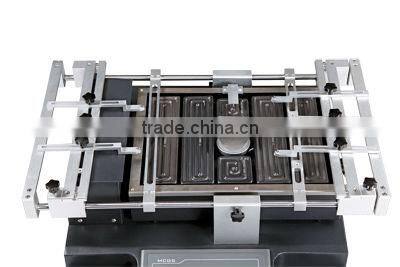

6.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
7.Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
8.Sound hint system. There is an alarm before the completion of each desoldering and soldering.
9.CE certification, with emergency switch and automatic power-off protection device when emergency happens
10.Three years warranty for the heating system, one year for the whole machine(Two years longer than other companies), free life-long technical support
Our Company Profile
Dinghua is a manufacturer which specialized in design and research, test and manufacture, sales and service of BGA Rework stations with experience over 7 years,the products is widely used for widly used for mobile phones, computers, laptops, Switches, game con
soles like Wii, Xbox, PS3
Certification
We have got CE&ISO certification
Packaging &Shipping
Our packag use good quility wooden box,more safty and convienable
Shipping:
We can send to everywhere of the world according customer request,very fast and effiency delivery
Our Service
This BGA rework machine with 3 years warranty , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
FAQ
If you have any inquiry ,pls feel free contact us,we would like at your service at any time
Sincerly hope in furture we can work together
Thanks for your support
Shenzhen Dinghua Technology Development Co.,LTD.
Add:3rd Floor,46#Building,Dayantian industrial District,Wanfeng Village,Shajing Town,Bao`an Area,Shenzhen,China
Tel:+86-0755-29091833 Fax:+86-0755-29091833
skype:dinghuabga
Website:
