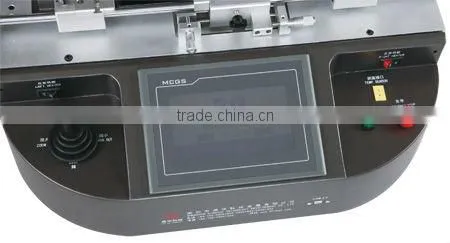

Help CenterLow Cost Good Quility Three Heating Zone Optical BGA Repair Station
Related Products
-
PSP Motherboard Repair BGA Rework Machine DH-A2US$ 1 - 5,500MOQ: 1 Set -
Hi Quaility BGA Repair Station DINGHUA DH-5860 for Mobile,PC,CCD Camera Motherboard RepairUS$ 1,000 - 1,500MOQ: 1 Set
-
Promotions Top Quility DINGHUA BGA Rework Station DH-A1L For Mobile,Laptop ,Camera Motherboard RepairUS$ 1,300 - 1,400MOQ: 1 Set
-
Motherboard Iphone 4/4S/5/5S BGA Chip Reuse Machine DH-A2US$ 1 - 5,500MOQ: 1 Set
-
Low Cost Mobile,Laptop Repair Machine DINGHUA BGA Rework Station DH-B1US$ 850 - 1,000MOQ: 1 Set
Specifications

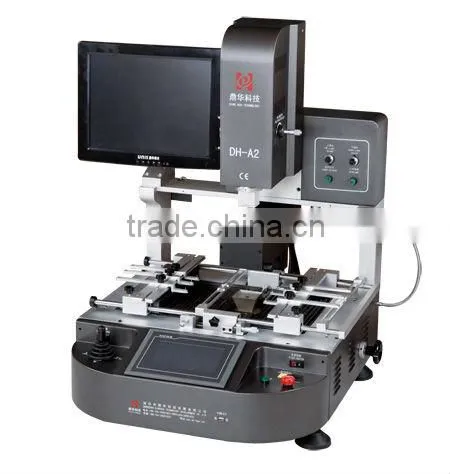

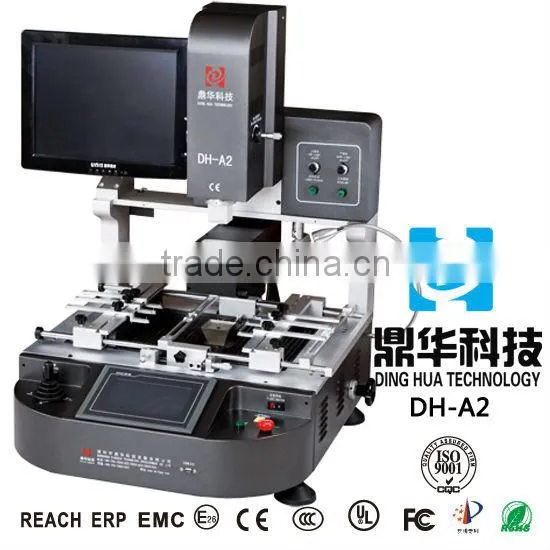

semi-automatic, optical laser machineGood Quility Optical BGA Rework Station DINGHUA DH-A2
.With optical alignment system
.With touch screen you can press the button, the motor can be driven placement head or automatic welding head down, .With CCD camera must manually pull horizontal
Specification
Power supply |
AC220V±10% 50/60Hz |
Power |
5200W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 3900W |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K sensor closed loop control, independent heating |
Temp accuracy |
±2°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward, ±15mm right/left |
Placement Accuracy |
±0.01MM |
Camera magnification |
10x-100x |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Machine dimension |
(L*W*H): 600*700*850mm |
NW/GW |
70/98 KG |
Product Digram
Mainly Feature
1.HD touch screen interface, PLC control

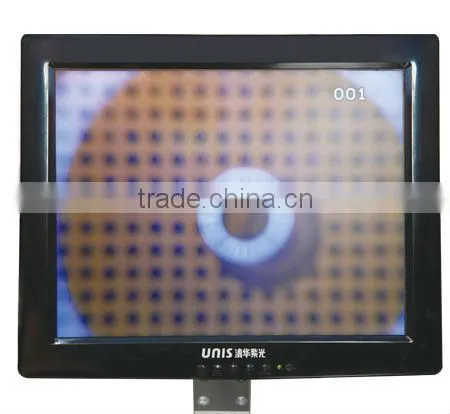

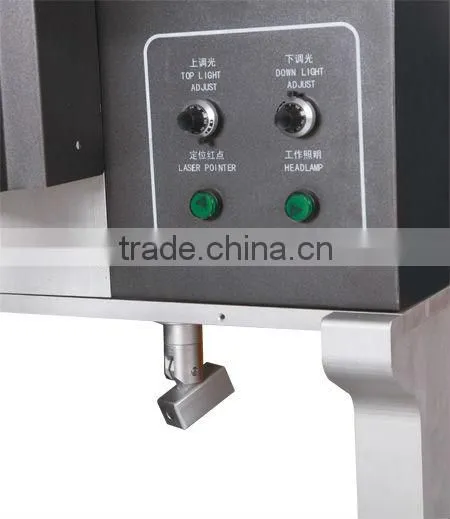

2.HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
3.Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
4.K sensor close loop control and automatic temp
erature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
5.Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

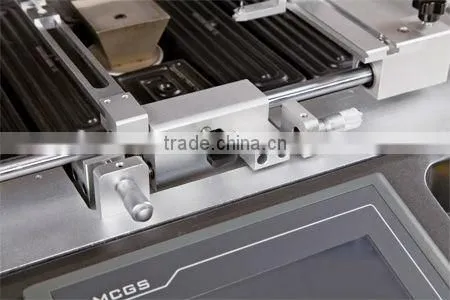

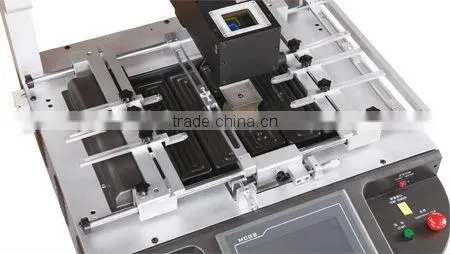

6.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.

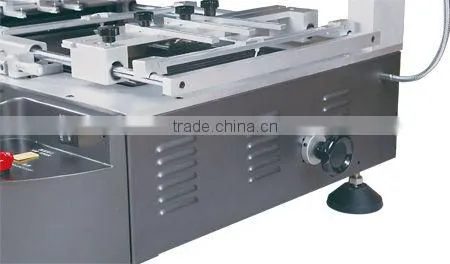

7.Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
8.Sound hint system. There is an alarm before the completion of each desoldering and soldering.

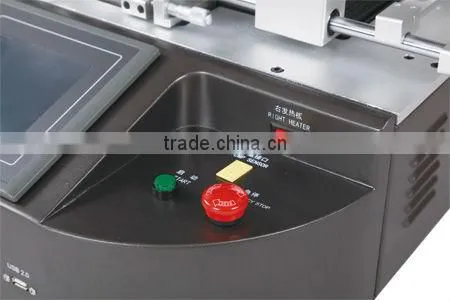

9.CE certification, with emergency switch and automatic power-off protection device when emergency happens
10.Three years warranty for the heating system, one year for the whole machine(Two years longer than other companies), free life-long technical support
Our company
DingHua Technology is a manufacturer which specialized in design and research, test and manufacture, sales and service of BGA Rework stations(such as infrared BGA rework stations and hot air BGA rework stations, and semi-automatic BGA rework stations), soldering stations, desoldering stations, reflow ovens, pre-heaters, BGA reballing kits, BGA reballing stencils, different kinds of main board rework jigs, BGA solder flux, BGA solder balls, BGA soldering wires, high temperature tapes and so on. they are widely used in more than 80% BGA rework areas such as mobile phones, computers, laptops, Switches, game consoles like Wii, Xbox, PS3
DingHua products obtaion ISO9001:2000, CE certification and they are mainly exported to Europe, America, Mexico, Brazil, Australia, South Africa and Southeast Asia,
Our Package
After-service
3 years warranty
All parts repaired free during the warranty period
Technical Support of Engineer to oversea
Our Delivery
