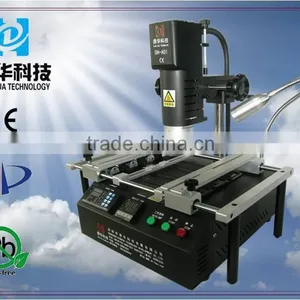

Help CenterDINGHUA BGA Soderling Machine DH-A09 Three Temperature Zone for PCB Board Repair
Related Products
-
BGA Chip on North Bridge Repair BGA Rework System DH-A2US$ 1 - 5,500MOQ: 1 Set -
VGA Card BGA Chip Repair SMD Rework Station DH-A2US$ 1 - 5,500MOQ: 1 Set
-
Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2US$ 1 - 5,500MOQ: 1 Set
-
Semi-auto CCD Camera BGA Rework Station DH-A2US$ 1 - 5,500MOQ: 1 Set
-
Low Cost Good Quility Three Heating Zone Optical BGA Repair StationUS$ 4,000 - 4,500MOQ: 1 Set
Specifications
3 independent heaters, paneled operation, the upper can be moved from up and down not front and back, the bottom cannot moved3 Heating Zone Temperature Zone Good Quility BGA Rework Station DH-A09 For Mobile,PC,Laptop Mother-board Repair
Its Specification
Total Power |
4800W |
Top heater |
800W |
Bottom heater |
2nd:1200W; 3rd : 2800W(large heating zone for all kinds of PCB boards) |
power |
AC220V±10% 50/60Hz |
Dimensions |
L380*W490*H650 mm |
Positioning |
V-groove, PCB support can be adjusted in X ,Y direction with external universal fixture |
Temperature control |
K Sensor Closed loop |
Temp accuracy |
±2 degrees |
PCB size |
Max 360mm*350mm Min20mm*20mm |
BGA chip |
5*5~55*55 |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1 |
Net weight |
About 28KG |
Description:

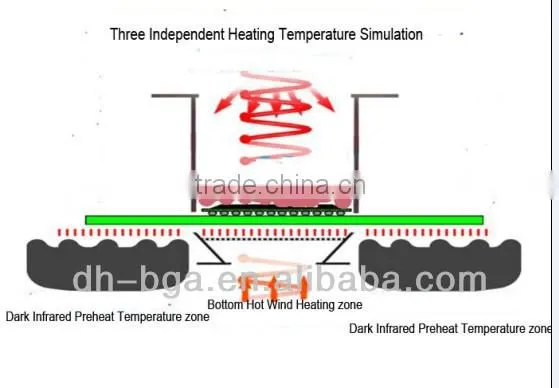

1.Three temperature areas independently heat
2. It uses high precise K-type thermocouple closed-loop control and automatic temperature compensation system, with PLC and temperature module
3. V-groove PCB works for rapid, convenient and accurate positioning
4. Flexible and convenient universal clip on the PCB board
5. Various sizes of BGA alloy nozzles, which can be adjusted 360 degree for easily installation and replacement.
6. 8 temperature rise and down +8 constant temperature
7. CE certification, equipped with emergency stop switch and automatic power-off protection device when emergency happens.

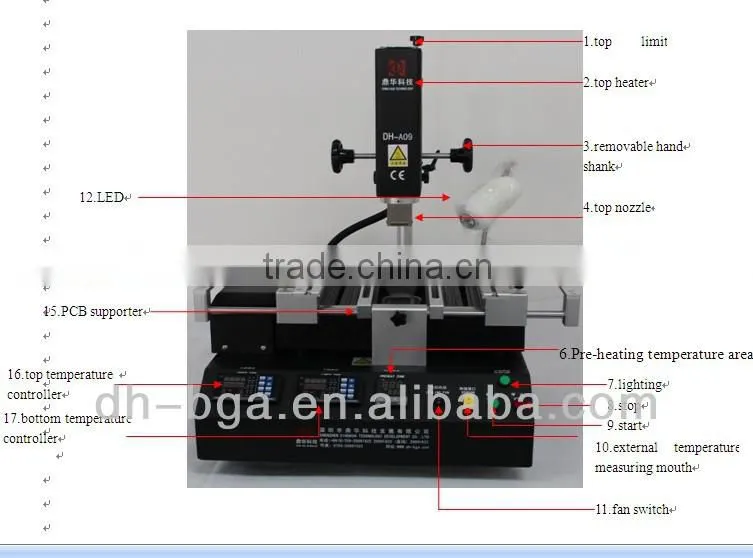

Products Digram
Operating flexible, big and small PCB are all available.
Adjust the height of the upper heater, and it is convenient to solder and desolder.

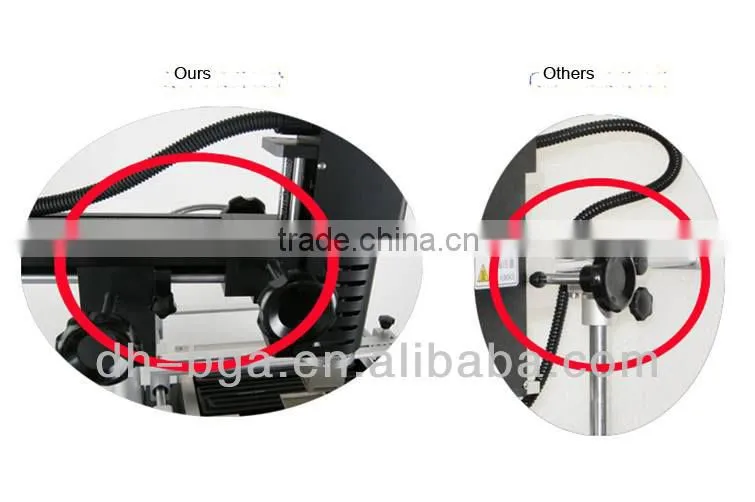

Position back and front adjusting convenient for the various Angle of BGA rework to make adjustments.
Effect to keep the distance between the upper and BGA.
Using high power cross flow fan
Can quickly on PCB, prevent PCB deformation.

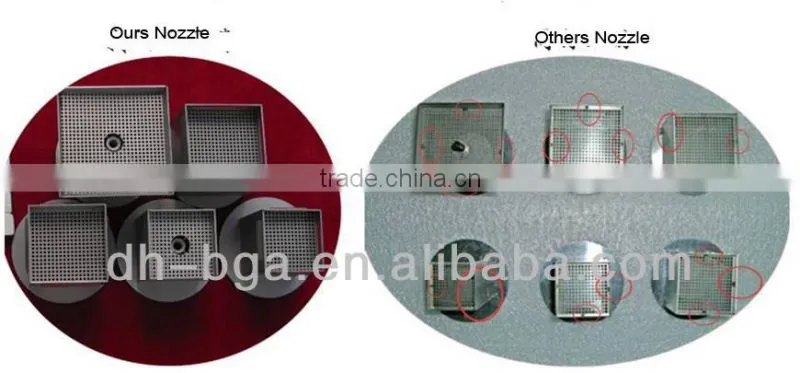

Alloy material. It is not easy to deformation ,and discoloration
and rustiness.
