Specifications
1.Optical Alignment PCB BGA Repair2.BGA Reballing Machine
3.Optical Alignment,CCD Camera
4Laser Positioning,HD Touch Screen

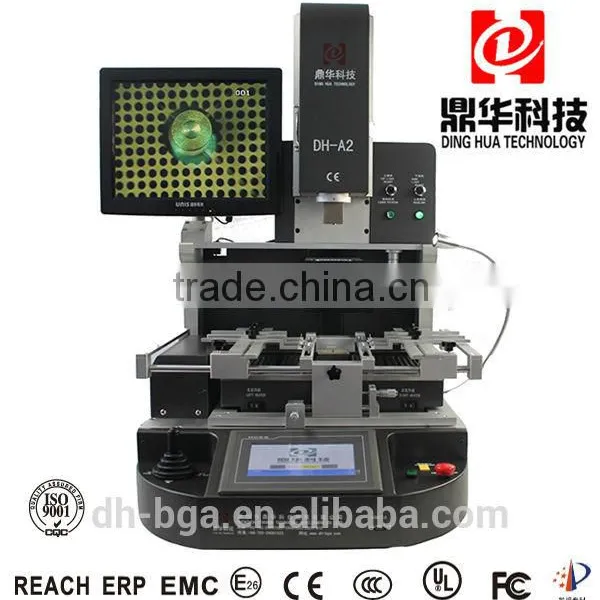

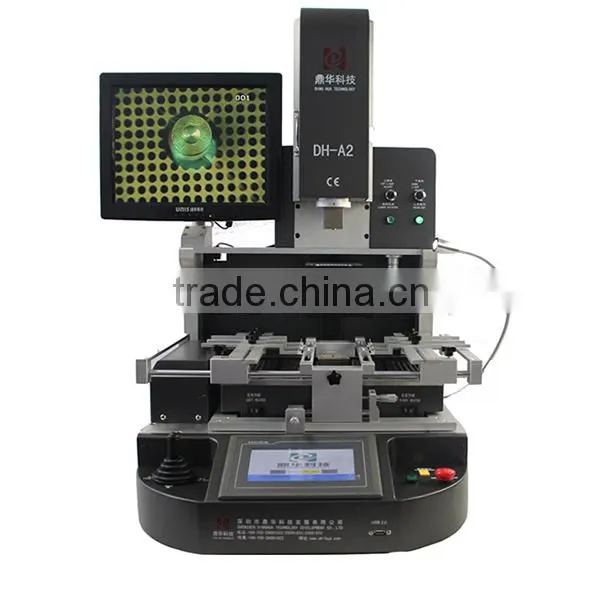

Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2
Specifications of Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2
Power supply |
AC220V±10% 50/60Hz |
Power |
5200W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Current |
20A |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K sensor closed loop control |
Temp accuracy |
±1°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward, ±15mm right/left |
Placement Accuracy |
±0.01MM |
Camera magnification |
10x-100x |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Machine dimension |
(L*W*H): 600*700*850mm |
Packing size |
770*750*730mm |
NW/GW |
70/98 KG |
Features of Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2
1.HD touch screen interface, PLC control
2.HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
3.Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
4.K sensor close loop control and automatic temperature compensation system. It combines with
temperature module, which enables temperature accuracy to ±2°C
5.Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
6.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
7.Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
8.Sound hint system. There is an alarm before the completion of each desoldering and soldering.
9.CE certification, with emergency switch and automatic power-off protection device when emergency happens
10.Three years warranty for the heating system, one year for the whole machine

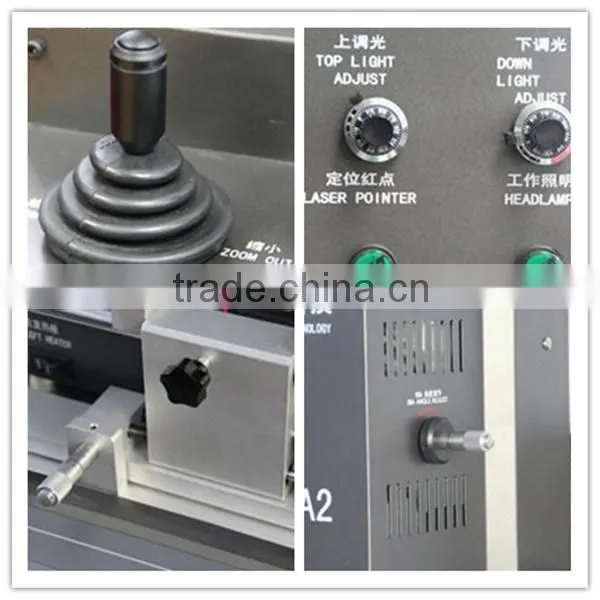

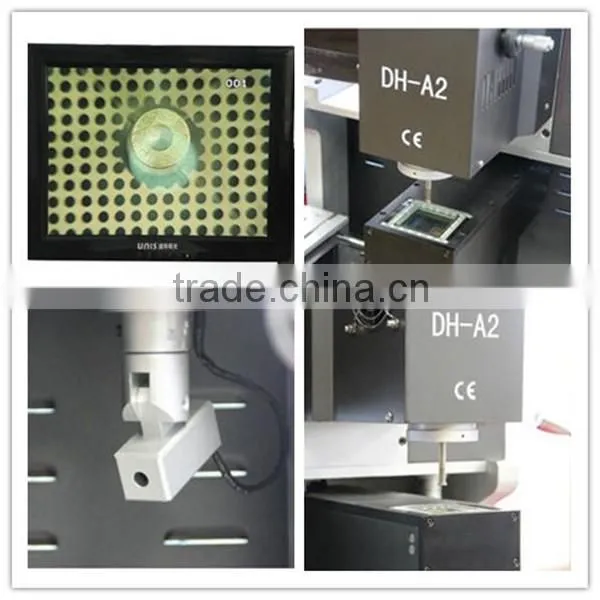

More Photos of Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2
Accessories of Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2
Packing of Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2
Certifications of Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2
Our Company
Why Choose Us
1.We are the professional BGA rework station manufacturer. And have been in this filed for more than 5 years. Engaged in Design, Development, Production and Selling.
2.Our machine is best in quality with low price. Are popular with the repair shop and training schooll all over the worlk. Welcome you to be our agent.
3.Fast delivery: FedEx, DHL, UPS, TNT and EMS. Many models in stock all the time.
4.Payment: Western Union, PayPal, T/T.
5.OEM and ODM is welcome.
6.The machine( Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2 ) will be equipped with user guide and CD.
Warranty
The whole machine( Optical Alignment PCB BGA Repair BGA Reballing Machine DH-A2 ) warranty for one year. And the heating wire for three-years warranty. Our technical support for the whole life.
Thank you for your attention. Should you have any request and question, please feel free to contact me. Your inquiry will get our fast reply. Welcome you to visit our factory.
