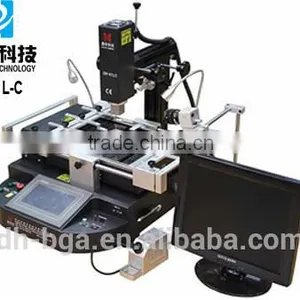

Help CenterDinghua DH-A1L-C Mobile Phone Soldering Iron BGA Rework Station Desoldering Silicone Mat for Phone and Xbox360 Chip Supplier's Choice
Related Products
-
Dinghua DH-A1L-C New Premium Bga Rework Station Solder Wifi Modem Iphone MotherboardUS$ 999 - 1,999MOQ: 1 Set -
Dinghua DH-B1 Bga Chip Desoldering and Soldering Machine for Mobile Phone Repairing Quality ChoiceUS$ 399 - 1,199MOQ: 1 Set
-
BGA Rework Station DH-5830 for Laptop Motherboard Chip RepairUS$ 499 - 1,199MOQ: 1 Set
-
DH-5860 Bga Rework Station the Same as Zm-r5860US$ 999 - 1,499MOQ: 1 Set
-
Dinghua DH-5830 Bga Soldering Machine Desoldering Xbox One Controller With HD Touch Screen Operating and Oven OmegaUS$ 199 - 1,200MOQ: 1 Set

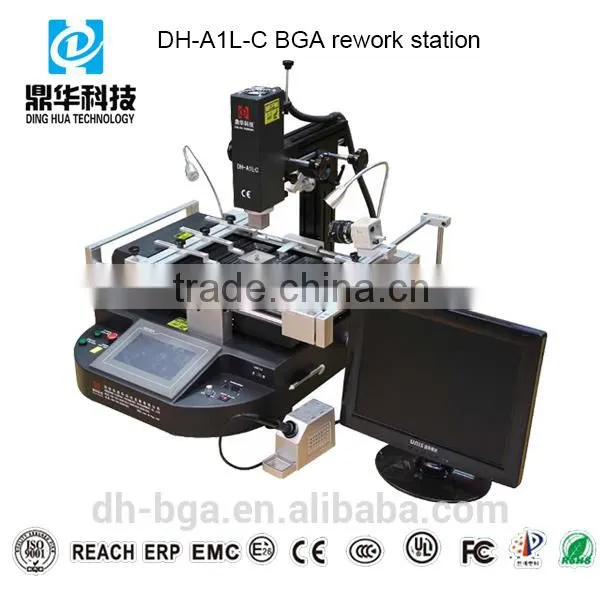

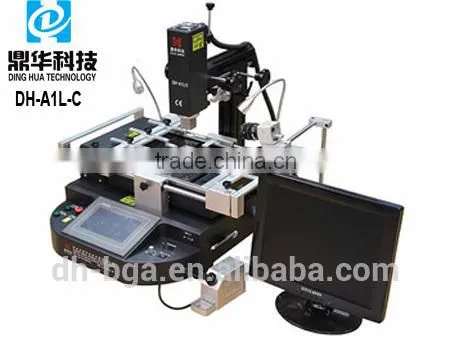

BGA rework station with CCD camera and laser sold by low price repairing automatic led assembly machine and xiaomi motherborads
Specification:
Total Power |
4900W |
Top heater |
800W |
Bottom heater |
Second heater 1200W, IR preheating 2700W, digital thermostat soldering iron 80W |
power |
AC220V±10% 50/60Hz |
Current |
20A |
Dimensions |
L650*W700*H650 mm |
Packing size |
760*680*680mm |
Positioning |
V-groove, PCB support can be adjusted in X and equipped with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2℃ |
PCB size |
Max 500*450 mm Min 22*22 mm |
BGA chip |
2*2- 80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1 pc (optional) |
NW/GW |
51kg/77kg |
Features:
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile
analysis function. Real-time settings and actual temperature profile display can be used to analyzed and
correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system,
with PLC and temperature module to enable precision temperature control of ±1 degrees. External
temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

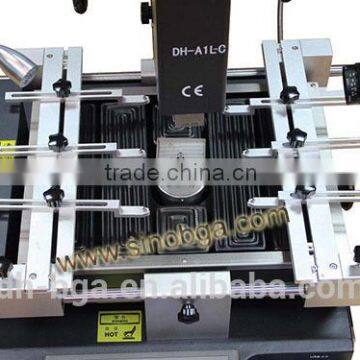

3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB
board.
4.Flexible and convenient removable fixture on the PCB board which protect and prevent damage
to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement;
6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure
best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming
can all be set on the interface.
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature
curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are
all accessible via touch screen. Three heating areas adopts independent PID calculation to control heating
process to enable more accurate and precise temperature control.
8.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation.
There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
9.Laser positioning, fast and effectively fix PCB
10.USB output interface.
11.Equipped with constant temperature digital display soldering iron
12.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or
welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind
stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the
machine will not age after heated up.

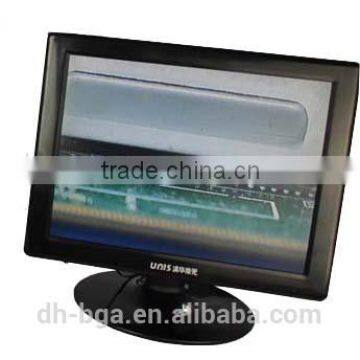

13.HD Display screen+camera + support. With the equipment, we can see the melting ball of outermost
row very clear.
14.CE certification, with emergency switch and automatic power-off protection device when emergency
happens.

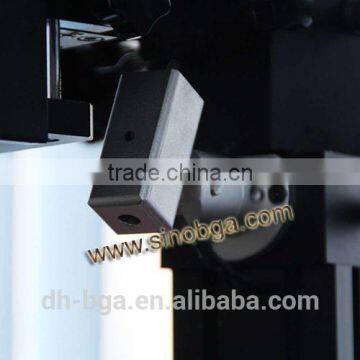

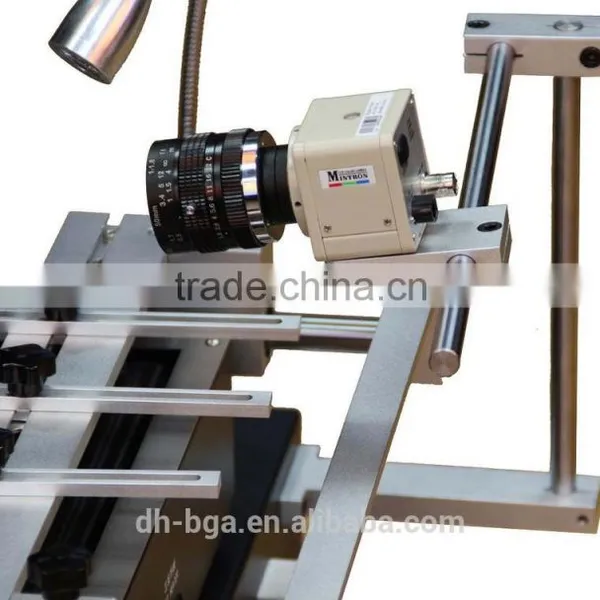

Two LED Lights, CCD Camera, Laser
Soldering Iron

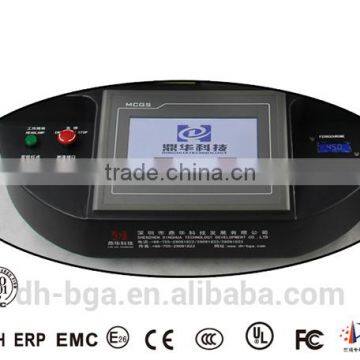

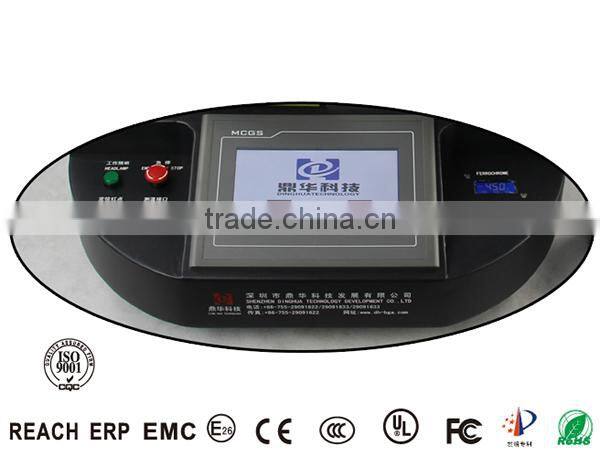

The Touch Panel
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,
please kindly tell us.
Shenzhen Dinghua Technology & Development Co., Ltd is a professional manufacturer of BGA rework station, rework tools and associated equipments, engaging in design, production, sales and service.We commit us to make the professional equipment, provide the high quality a perfect service for the customer. As one of pioneer in this industry, we continue to improve and innovate along with the market demands by absorbing the advanced development experience from home and abroad to adhering to our vision of ‘Professionalism, Honesty, Innovative and Responsibility’.
Science and technology are primary productive forces. Through teamwork, we achieved the core thermal-control technology with related patent. At the same time, our products cover 3 categories: high-end, mid-end and low-end for development and production using manual, semi-auto to fully automated processes. Our market had expanded into industries like: individual repair, factories, education, military and aerospace etc. And we had established the point-of sales and end service at locally and abroad.
Your satisfaction is our target, adhering to customer-focus, market oriented, and our company provides fist class products and high efficient services for customers through continuous innovation. We are honored to work with you to create a brighter future.
Our compay
Our customer
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
a. Your inquiry related to our products or prices will be replied within 24hours.
b.Be Well-trained and experienced to answer all your enquires in fluent English
c. OEM&ODM, any your request we can help you to design and put into product.
d. Distributors are offered for your unique design and some our current models
e. Protection of your sales area, ideas of design and all your private information.
We always answer your questions: 24 hours a day, 7 days a week.
