1. Laptop notebook motherboard bga rework and repair.
2. Game consoles applications such as xbox Ps3 Wii bga rework and repair
3.Large circuit board maintenance, and mobile phone motherboard such small small-sized chip
Specification:
Power supply |
AC220V±10% 50/60Hz |
Power |
4800W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K-sensor closed loop control, independent heating |
Temp accuracy |
±2 degrees |
PCB size |
Max 500*400 mm Min 22*22 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Machine dimension |
(L*W*H): 650*680*600mm |
Packing dimension |
(L*W*H): 75*75*63cm |
NW/GW |
45/68KG |

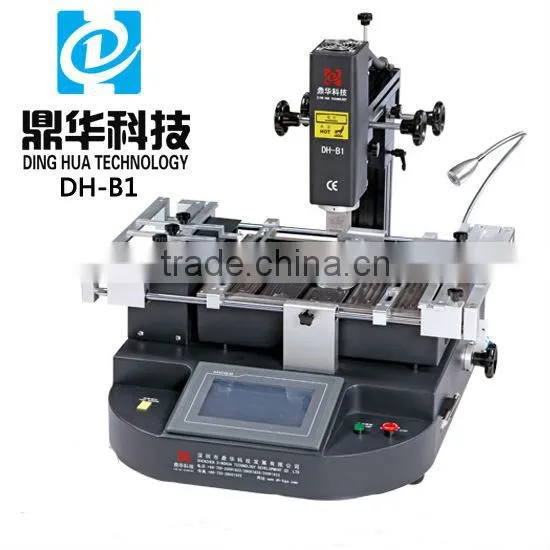

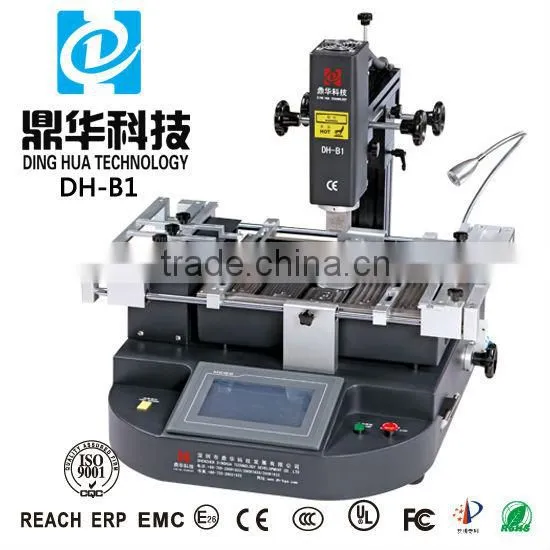

1.Item name:DH-B1

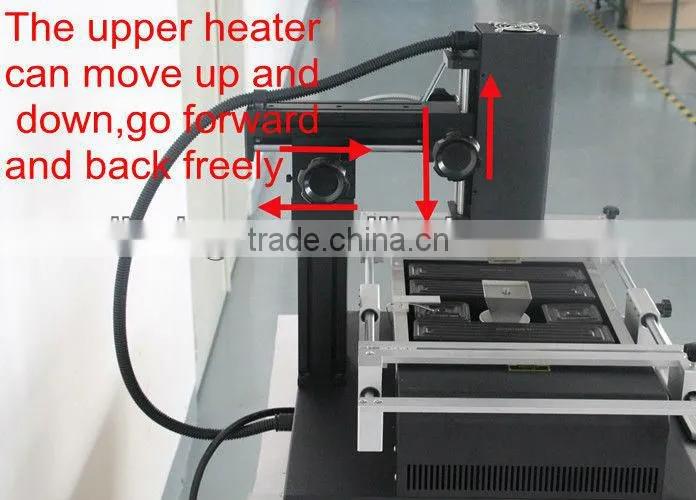

2.Removable top head, you can move it up and down, forward and backward.

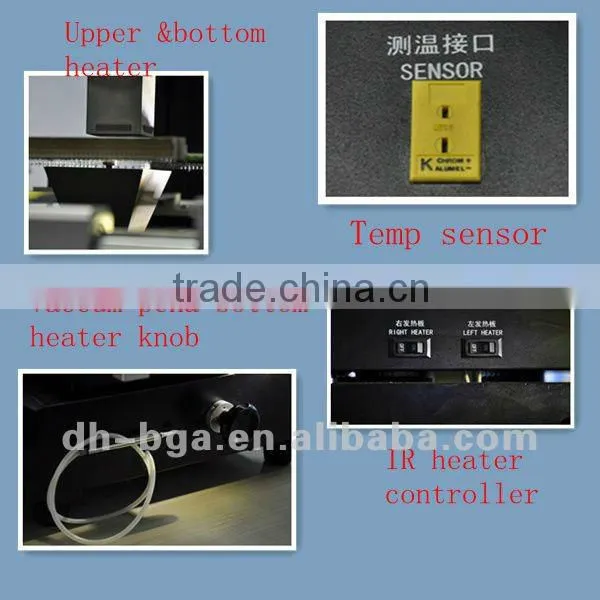

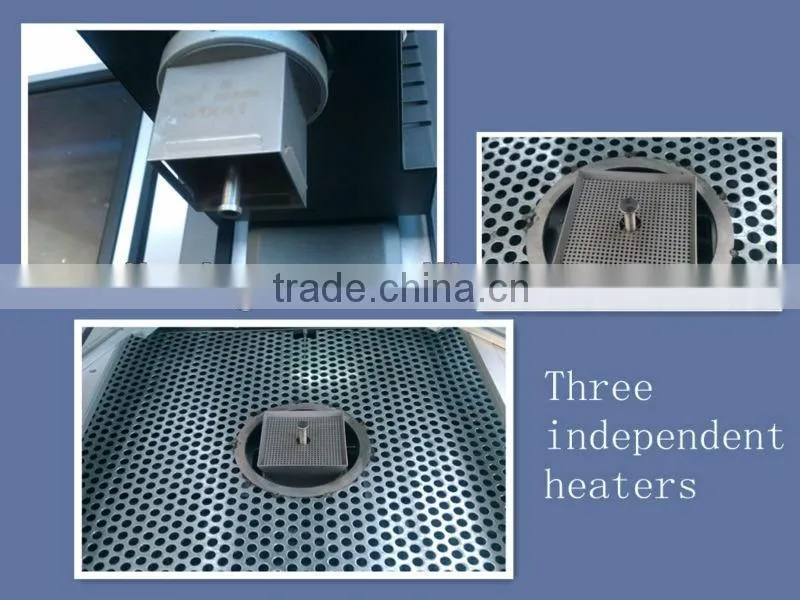

3. Three independent heaters, the upper hot air heater and the lower Infrared heater. all can set 8 segments heating, cooling and constant temperature, can also store 10 groups of temperature .

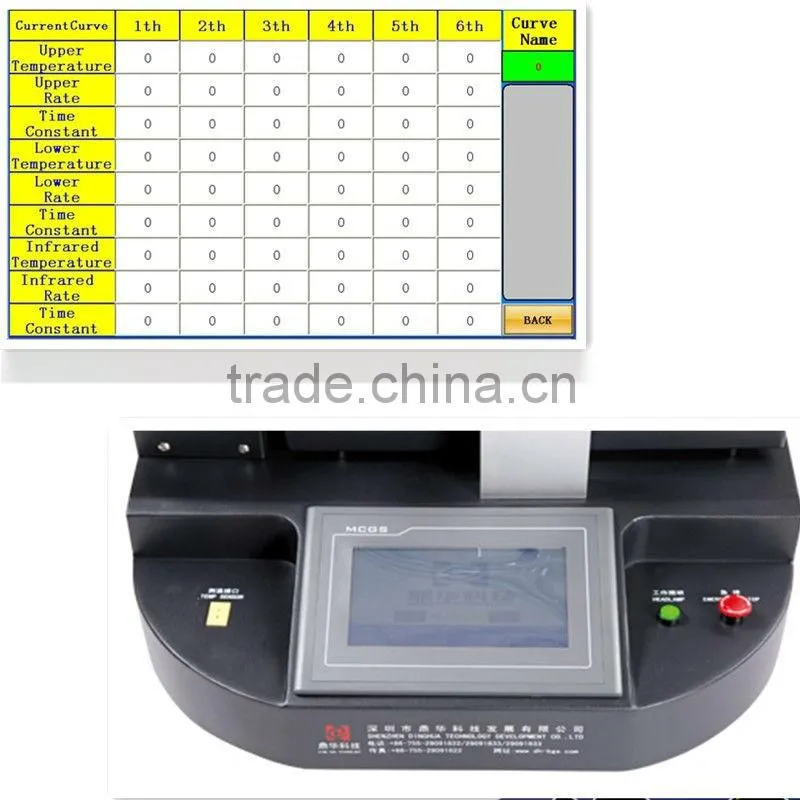

3.Touch Screen Interface

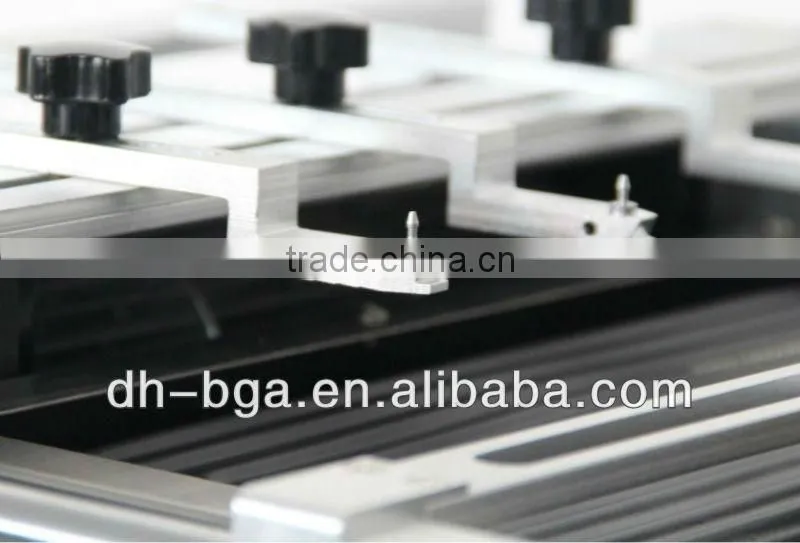

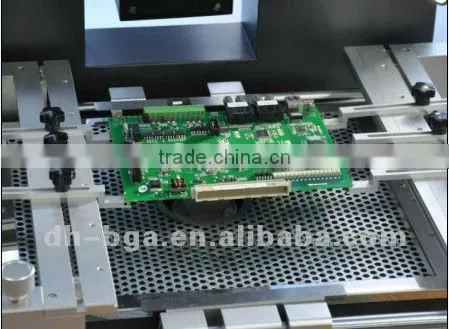

4.V-groove PCB support, rapid positioning, convenience, accuracy, can fit for all kinds of PCB board, We also have FLEXIBLE and CONVENIENT fixtures for all shapes PCB boards. which can protect and prevent well for damage to PCB board.
5.K sensor close control, control heating process precisely.

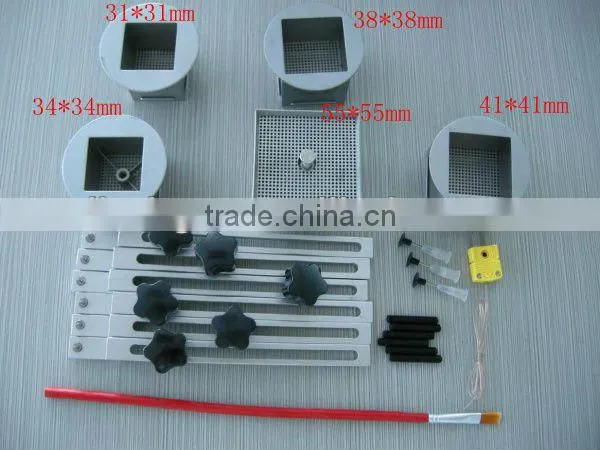

6. Various sizes of BGA alloy nozzles, the min size 31*31mm,the max size is 55*55mm.which can be adjusted 360 degree for easily installation and replacement.
7. Sound hint system. There is a alarm before the completion of each work.

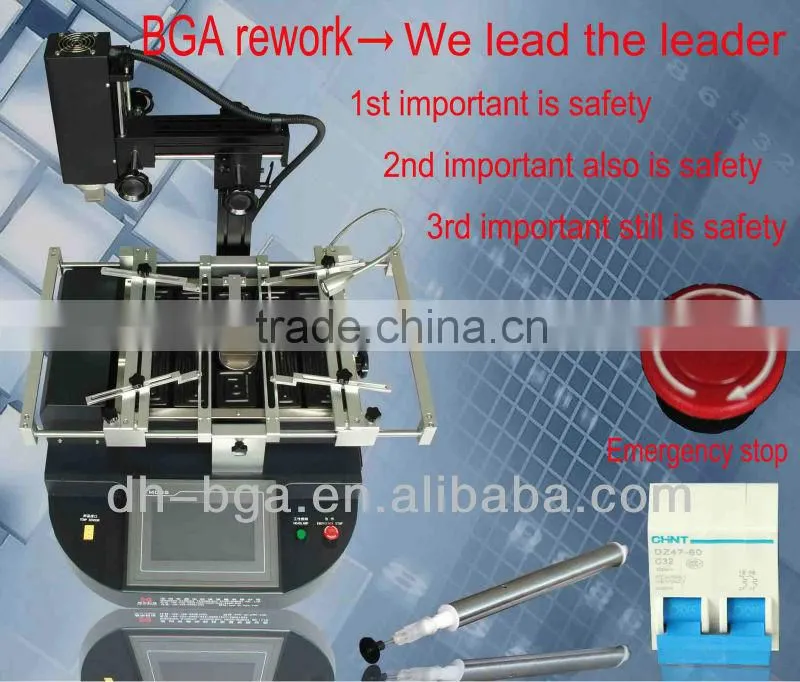

8.With emergency switch and automatic power-off protection device when emergency happens.

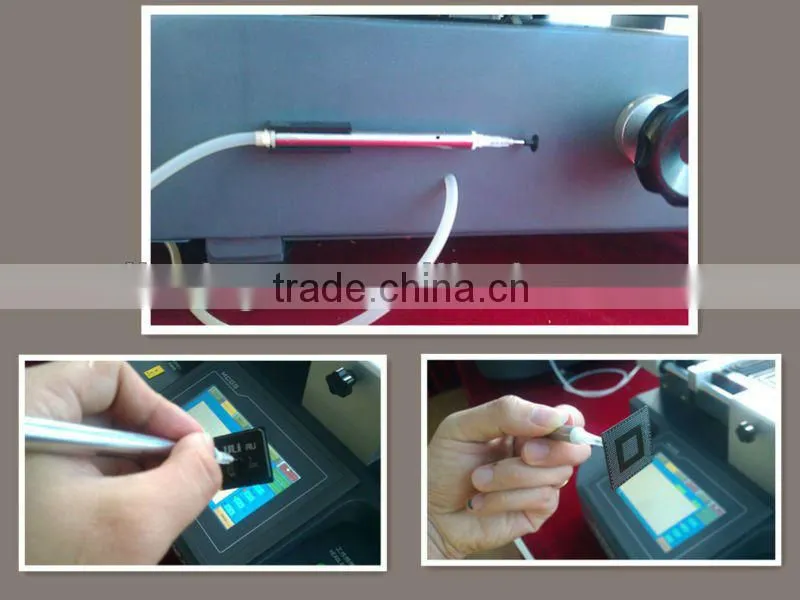

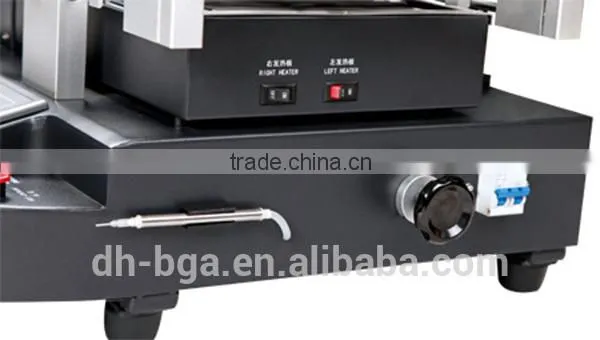

9.External Vacuum pump pen on the right side.
