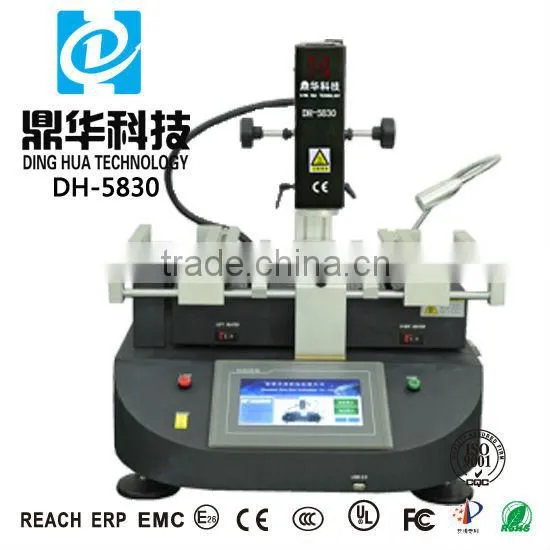

Help CenterBGA Rework Station DH-5830 for Laptop Motherboard Chip Repair
Related Products
-
DH-5860 Bga Rework Station the Same as Zm-r5860US$ 999 - 1,499MOQ: 1 Set -
Dinghua DH-5830 Bga Soldering Machine Desoldering Xbox One Controller With HD Touch Screen Operating and Oven OmegaUS$ 199 - 1,200MOQ: 1 Set
-
Dinghua DH-5860 Pratical and Popular Bga Tool Stand for zd Electric Car Led Bulb Xbox 360 MotherboardUS$ 399 - 1,499MOQ: 1 Set
-
Dinghua DH-A1 BGA Kit Bga Chip Removal Machine Rework Vga Gpu Cpu MotherboardUS$ 399 - 1,599MOQ: 1 Set
-
Dinghua DH-C1 Infrared BGA Welding Soldering Machine for Ps4 Console 500gb Latest 5g Mobile Phone in PakistanUS$ 299 - 1,199MOQ: 1 Set
Dinghua bga rework station for chips of pc, x36 box and other chiosets is the best brand in China providing you 3 years warranty
Total Power |
4500W |
Top heater |
800W |
Bottom heater |
Second heater 1200W, IR preheating 2400w |
Power |
AC220V±10% 50/60Hz |
Dimensions |
L570×W550×H570 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2℃ |
PCB size |
Max 350×400 mm Min 50×50 mm |
BGA chip |
2*2~80*80 |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optinal) |
Net weight |
30KG |
DH-5830 Feature
1.Top and bottom heaters are hot-air heating, the third IR preheatingarea (350x220mm) is infrared heating, temperature accuracy within ±2°C, the top and bottom heaters can set 8 segments rising temperature and 8 segments activity temperature, it can save 100 groups temperature curves for different BGA chips.

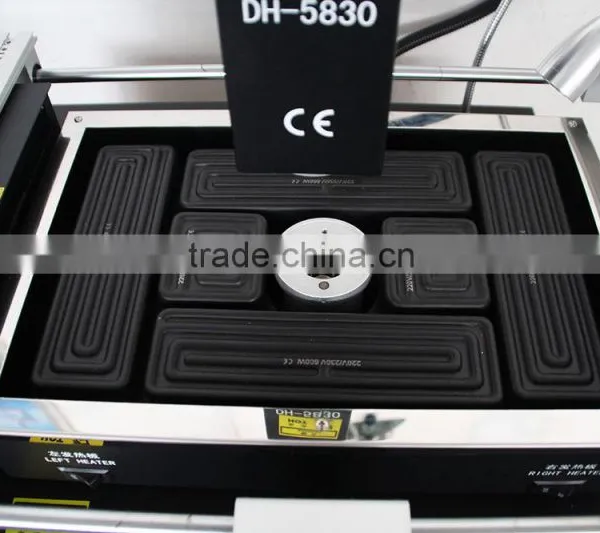

2.The top and bottom heaters can heat PCB from upper and bottom side. And the third IR heater can preheat the PCB board, to avoid PCB from deformation during repair process. The top and bottom heater heat independently.
3.The IR power consumptions of the third IR heater can be adjusted, make PCB board heating evenly, to avoid from deformation.
4.Adopt human-machine interface, High-precision K-type thermocouple with close-loop control, automatic temperature compensation system, precise temperature control, the temperature shown on the touch screen, top heater can be moved freely.
5.Adopted all kinds of BGA nozzles, with 360°rotation, easy for installation and replacement, customized is available.
6.There is BGA soldering support shelf to support PCB board.
7.Multi-functional PCB support shelf, can be moved along X axis,with rapid and easy PCB board positioning , suitable for all kind of PCB position.
8.Powerful cross-flow fan cool the PCB board fast after desoldering and soldering, it can prevent the PCB board from deformation;With vacuum pump and external vacuum suction pen to pick up the chips conveniently.
9.With certification;after desoldering and soldering, there is alarming. when temperature goes out of control;the circuit will automatically power off, it is of double over-temperature protection function.
10.Temperature parameter has a password to avoid fom arbitrary changes, with superior safe protection functions, it can protect PCB board’s components and the machine from damage at any abnormal situation.

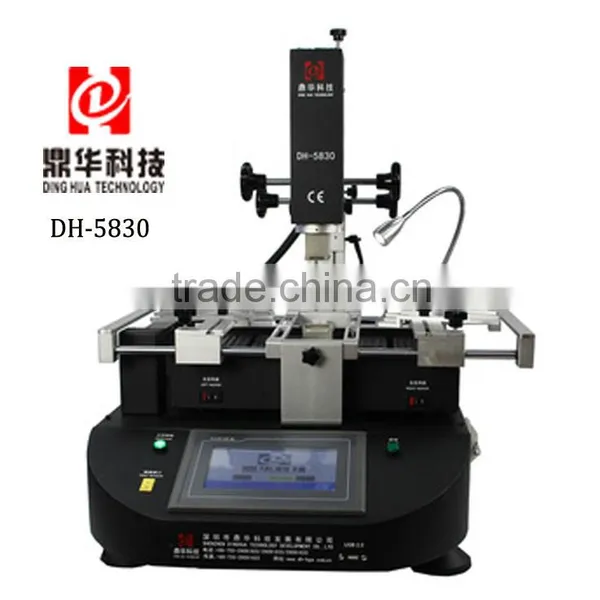

DH-5830 Structure
DH-5830 Function
Number |
Name |
Functions |
Use ways |
1 |
Limit bar |
limit the lowest position of the upper heating |
Rotate to the right place |
2 |
Tension adjustment knob |
lock the upper zone of up and down ,before and after |
Rotate the knob |
3 |
Forward and backward adjustment handle |
Adjust the upper zone of before and after position |
Rotating the handle |
4 |
7 handle |
lock the rotation angle of the upper zone |
Rotating the handle |
5 |
Head light |
Lighting equipment at work |
Press the button |
6 |
PCB plywood |
Move the right position , clamping the PCB |
|
7 |
Bottom heater height adjustment handle |
Adjust the lower nozzle distance from the PCB board |
Rotating the handle |
8 |
Emergency stop button |
Emergency stop |
Press the button |
9 |
light button |
light switch |
Press the button |
10 |
The upper heater |
generate upper hot air |
|
11 |
Y axis handle |
Adjust the upper zone of the position up and down |
Rotating the handle |
12 |
Upper heating nozzle |
To focus the hot air |
Pull air from the BGA suitable location |
13 |
Lower part of the supporting frame |
Prevent the PCB board fall down |
Move the right position to withstand |
14 |
Lower heating nozzle |
To focus the hot air |
Pull air from the BGA suitable location |
15 |
Cross flow fan |
Cooling the PCB board after weilding |
|
16 |
Infrared heater |
BGA rework with warm-up |
|
17 |
Temperature sensor |
Connect an external galvanic , measure the actual temperature |
Directly connect temperature line |
18 |
Touch screen |
Data storage system platform |
|

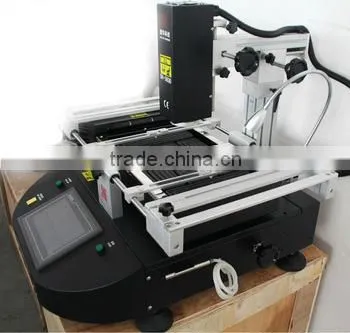

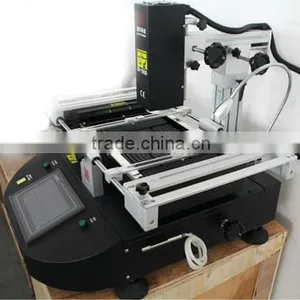

DH-5830 Detail

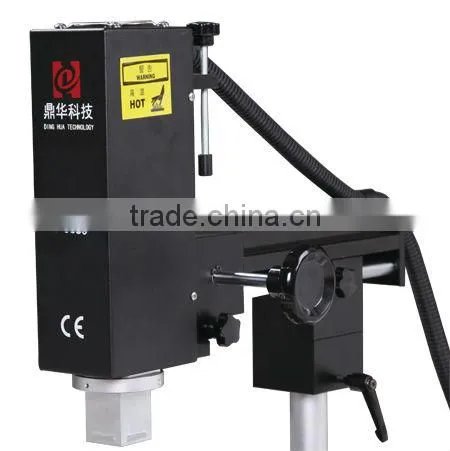

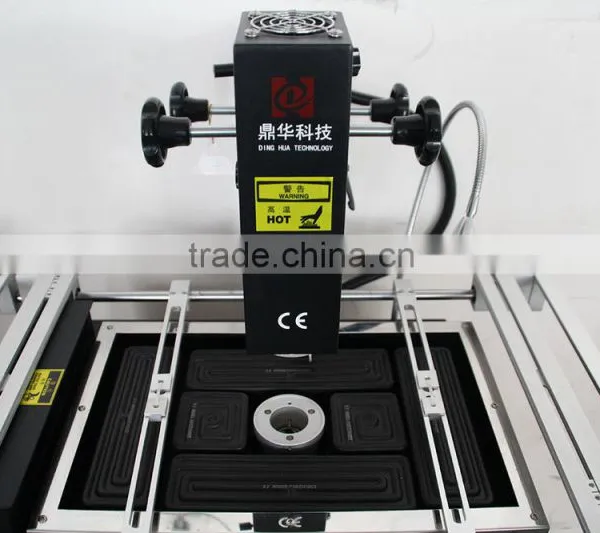

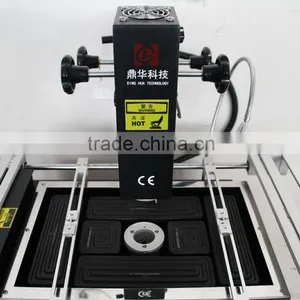

Upper Heater (top hot air) can up and down,front and back move.

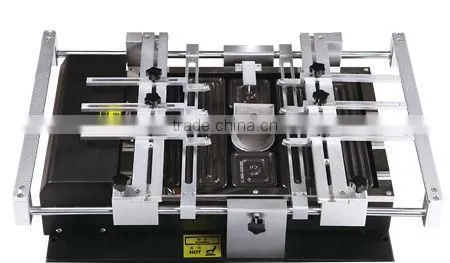

PCB pallet with supporter and external universal fixture,can move around freely, and protect the PCB board from deformation.
High definition touch screen you can easily input by clicking, operation is easy and convenient.
Vacuum pen for handing BGA chips and thermovent
Certifications
Warranty
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
Packing & Shipping
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,
please kindly tell us.
Company Information
Shenzhen Dinghua Technology & Development Co., Ltd is a professional manufacturer of BGA rework station, rework tools and associated equipments, engaging in design, production, sales and service.We commit us to make the professional equipment, provide the high quality a perfect service for the customer. As one of pioneer in this industry, we continue to improve and innovate along with the market demands by absorbing the advanced development experience from home and abroad to adhering to our vision of ‘Professionalism, Honesty, Innovative and Responsibility’.
Science and technology are primary productive forces. Through teamwork, we achieved the core thermal-control technology with related patent. At the same time, our products cover 3 categories: high-end, mid-end and low-end for development and production using manual, semi-auto to fully automated processes. Our market had expanded into industries like: individual repair, factories, education, military and aerospace etc. And we had established the point-of sales and end service at locally and abroad.
Your satisfaction is our target, adhering to customer-focus, market oriented, and our company provides fist class products and high efficient services for customers through continuous innovation. We are honored to work with you to create a brighter future.
Our compay
Our customer
Our cooperation
Why are we?
1. Well-equipped manufacturing facility.
2.Professionalism innovative R&D team, provide professional service for bga rework station solution.
3.Optimum performance,precision temperature control to ensure high rate of success for S&M. As we know, the performance of bga chip soldering and desoldering is high depends on the precise of the temerature. Our bga machine use PID control,the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature), but among the bga rework station industry, most of company just use the PID grab freqency is 30ms.
4.International quality standard range,all our product have got the CE, ISO 9001 20008,Rohs approval.
5.Competitive price. All our machine material select from world class brand (like Omega,SMC,CNB,GS, which is make us insure safer,comvenient speedily operation.
6.Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on. Generally goods can be ready in 7 days after the receipt of the payment.
7.We supply 3 years warranty for this BGA rework station , in the first year, offer spare parts for free,
the other 2 years, only charge fees for spare parts, life long technical support.
