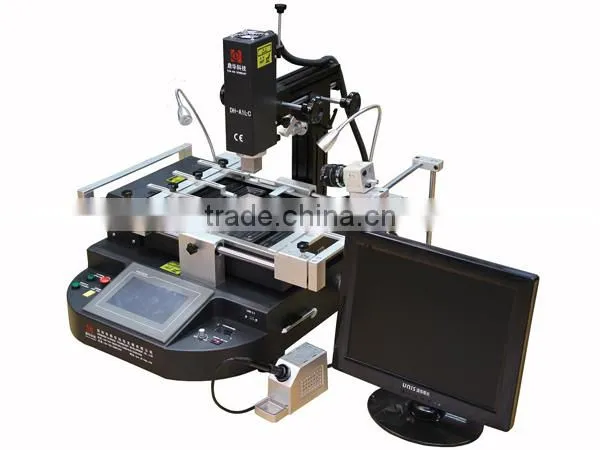

Laser positioning and CCD camera bga rework station sodering or desoldering mainborad of mobile, projector and printer etc.
Specification:
Total Power |
4900W |
Top heater |
800W |
Bottom heater |
Second heater 1200W,IR preheating 2700w,digital thermostat soldering iron 80W |
power |
AC220V±10% 50/60Hz |
Current |
20A |
Dimensions |
650*700*H650mm |
Packing size |
760*680*680mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2℃ |
PCB size |
Max 500*450 mm Min 22*22 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
NW/GW |
51kg/77kg |
DH-A1L-C Feature
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and
instant profile analysis function. Real-time settings and actual temperature profile
display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±1 degC. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for
all kinds of PCB board.
4.Flexible and convenient removable fixture on the PCB board which protectsand
prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement;
6.Three temperature areas can independently heat and are multiple controllable and
adjustable to ensure best integration of different temperature areas. Heating
temperature, time, angle, cooling and vacuuming can all be set on the interface.
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen. Three heating areas adopts independent PID calculation to control heating process to enable more accurate and precise temperature control.
8.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
9.Laser positioning, fast and effectively fix PCB
10.USB output interface.
11.Equipped with constant temperature digital display soldering iron
12.Including Voice "early warning" function. 5-10 seconds before the completion of
uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
13.C:HD Display screen+camera + support. With the equipment, we can see the
melting ball of outermost row very clear.
14.CE certification, with emergency switch and automatic power-off protection device when emergency happens.
DH-A1L-C Detail

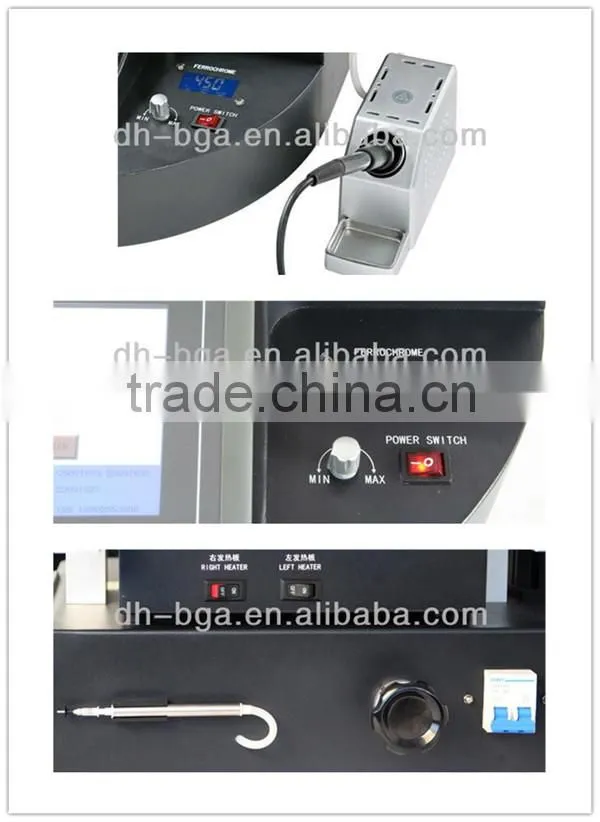

Equipped with constant temperature digital display soldering iron. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.

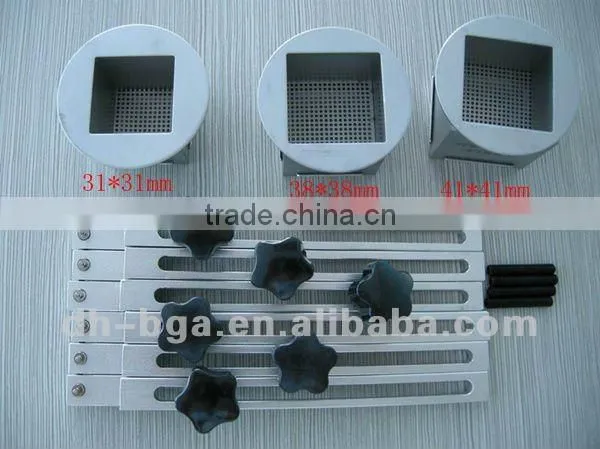

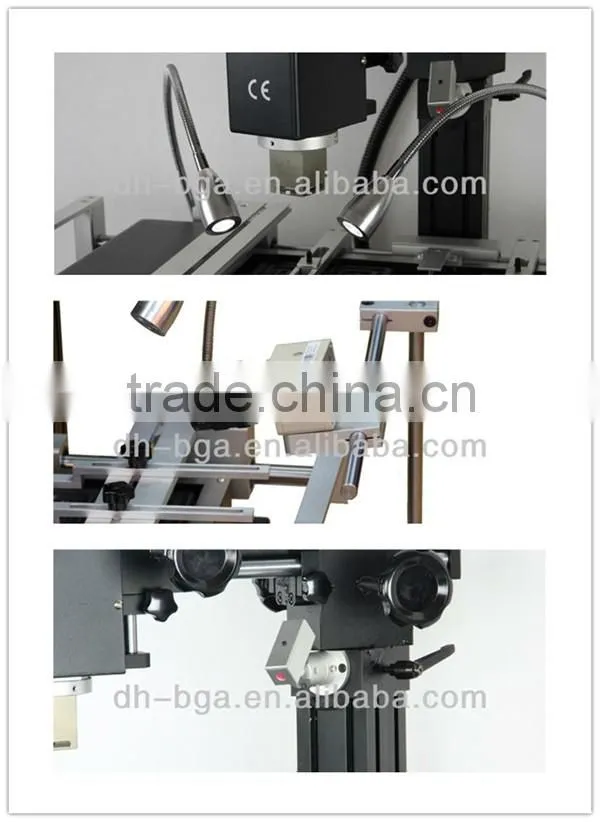

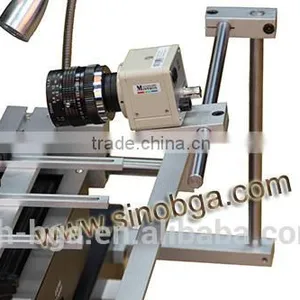

Left and right LED light import from Taiwan.Equipped with different size of nozzle,easy to change and can rotate freely. HD display screen and CCD camera with the equipment, we can see the melting ball of outermost row very clear.

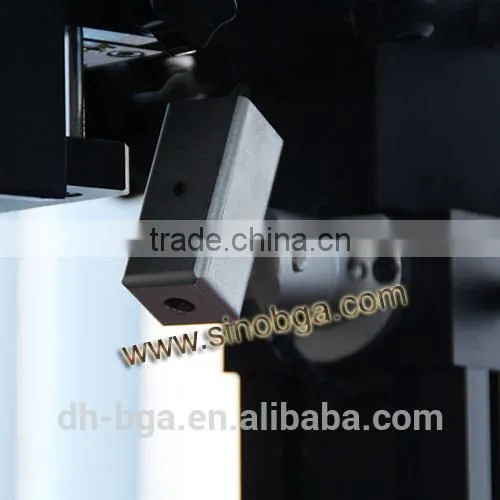

Laser positioning, fast and effectively fix PCB

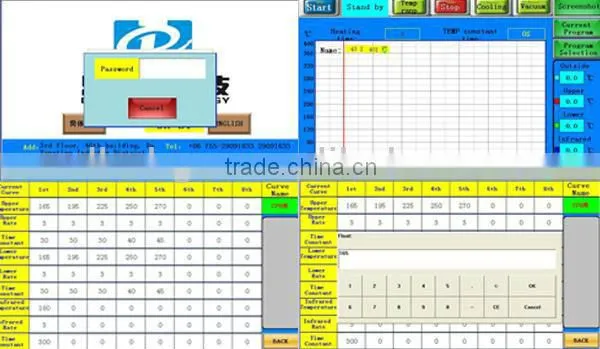

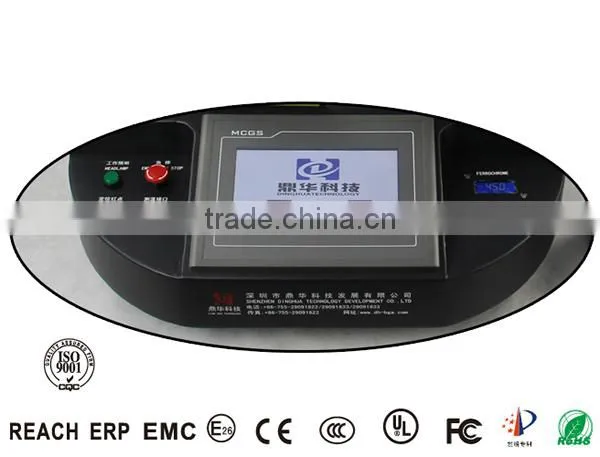

HD operating touch screen there are 6-8 levels of variable and constant temperature controls
DH-A1L-C Accessories
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
