Product Application

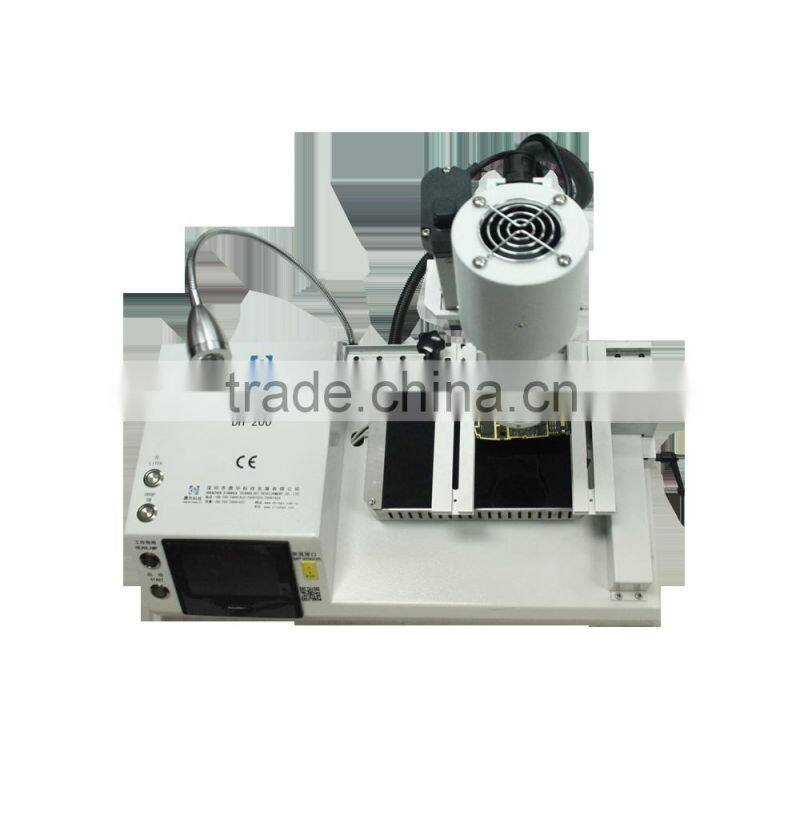

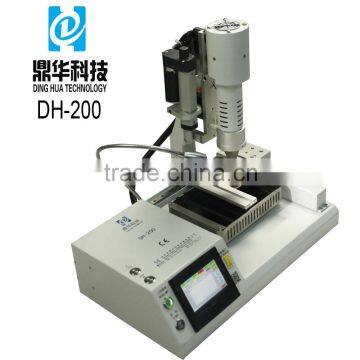

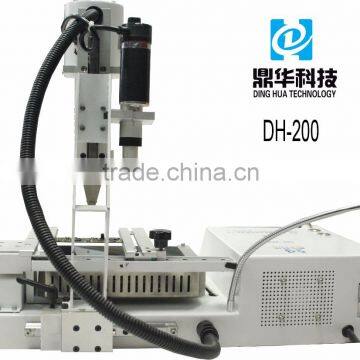

Dinghua bga rework station DH-200 is with 2 independent heaters ,and upper heater is automatic , mainly reworks motherboards of mobile, GPS navigator and wifi mode machine and so on,Dinghua is the best brand of bga rework station made in Shenzhen, China.
Main Features
1) 1.DH-200 special for mobile repairing, such as Samsung, iPhone, Huawei, HTC.... Mini type, lower shipping cost.
2) 2.Top hot air heating, bottom German diode heating zone with glass guard. Top head can move up / down automatic with button. Bottom zone can move frontward / backward. Machine movement with slides, stable and durable.
3)3.Embedded industrial PC, HD touch screen conversational interface, human-machine interface operation, multi-functional integrated control, human structure design, optional numbers storage, apply temperature curve freely. With multi-functions: "keep same temperature", "instant curve analysis" and "voice warning before heating finish". Real-time actual temperature and temperature curve setting can also be used to analyze and correct the curve if necessary.
4) high precise k-type thermocouple closed-loop control, with temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
5) 5.V-groove PCB works for rapid, convenient and accurate positioning, which can suitable for all kinds of PCB board positioning.
6)6.Movable universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
7)7.With different size of magnet nozzles, easy replace and install, rotate freely 360°, any size can be custom if need. Titanium alloy material, never deformation, never rusty
8)Two heating zones can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope and cooling can all be set in touch screen conversational interface. Meanwhile PID calculation to control heating process more accurate and more stable.
9)9.6-8 segments temperature can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.
10)10.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
11)11.CE certification approval. Double protection: Overheating guard + emergency stop function.
Machine Parts
Name: Industrial PC
Brand:PanelMaster
Original: China
Domestic famous touch screen with high definition, real-temperature can be displayed on the screen, so that technician can set different smart temperature profile which prevents PCB boards from being damaged.
Main Features
Name: Top head
Brand: Dinghua
Original: China

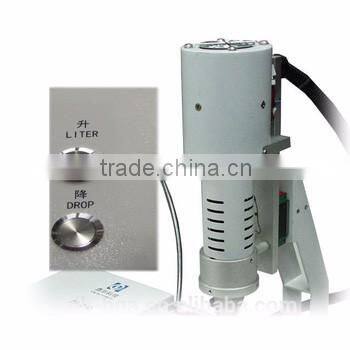

Top hot air heater with automatic up/down button, and manual left/right, adjusted for different PCB and chips.
Machine Parts
Name: Infrard heating board
Brand: Dinghua
Original: China

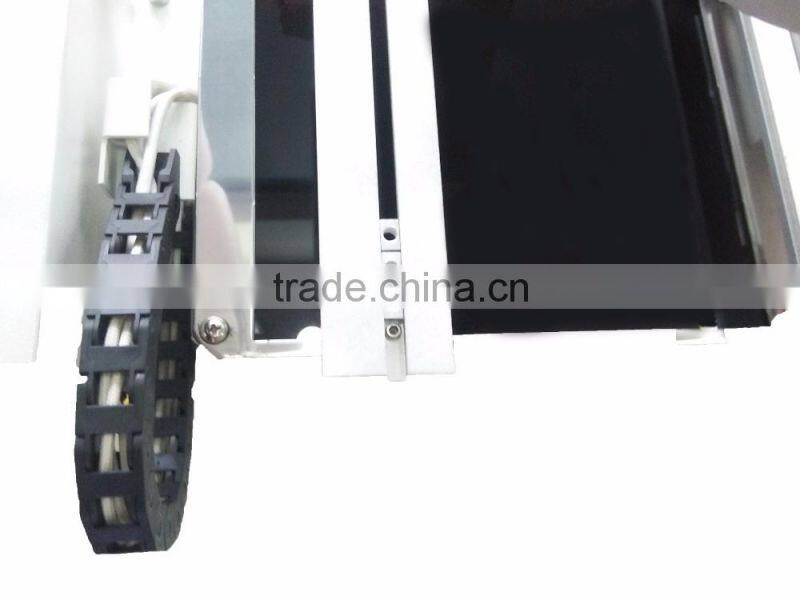

The infrared heating board can be moved forward and backward by convery belt, which is suitable for when chip is placing or pcking on different position.
Main Features
Name:LED Light
Brand: Import from Taiwan
Original: Taiwang Region
Bright and durable, lamp pole can be curve at any angle for lighting, made in Taiwang region.
All of our machines are with 1 year warranty for whole machine, 3 years for heaters. Technical support provided for all life.
