TAEPO - Your Professional STG Module Manufacturer in China.
Get the competitive STG module , Pouyet module price from TAEPO now!
What is a STG Module?

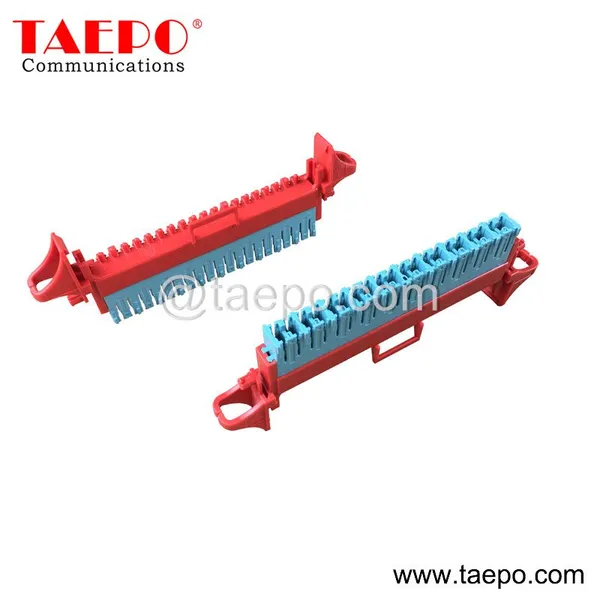

10 pairs STG module (TP-1311-10) is the last revolution of STG range of IDC (Insulation Displacement Connection) disconnection modules, that can be snapped onto STB back mount frame pitch 16mm. It is also called as "Pouyet Module"
This STG module offers category 5 transmission performance (100MHz) as a standard. As a result this module can be used in any modern network and is fully compatible with all kind of application.
With termination and wire removal are easily operated with standard termination tool TP-5908. Cables are managed from the rear and jumpers from the side. The base of the module offers cable and jumper strain relief facilities.
Straight IDC technology offers reliability and outstanding performance like multi termination, wire retention and gas connection. This STG module can connect solid copper conductor in a range of diameters from 0.4-0.8mm with max insulation 1.5mm.
Main Features
Insulation Displacement Connection
No wire-stripping, screw and solder free
Reliable connections
Clear labeling
Modular design and installations
Gas tight connection
One push wire insertion
Robust long-term environmental stability
Flexible indoor and outdoor use

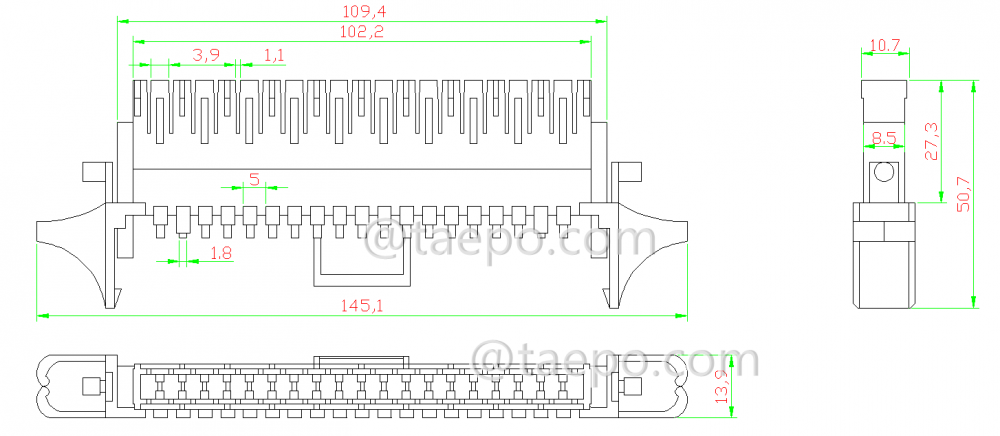

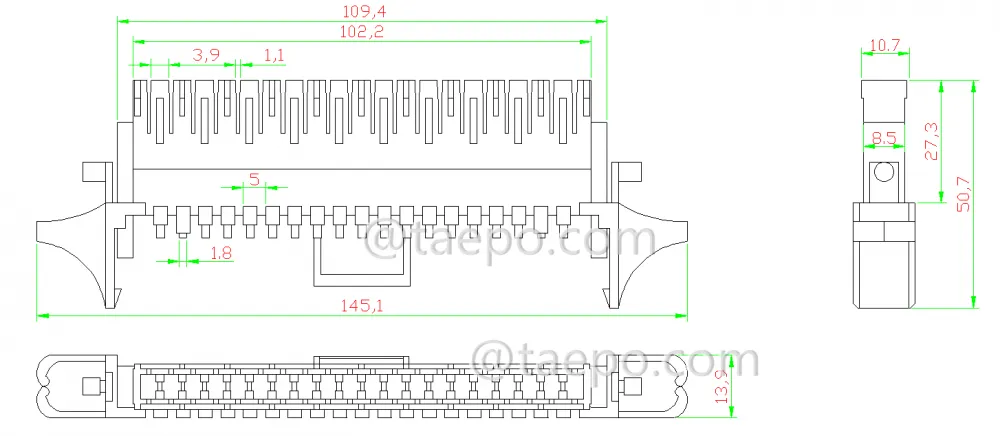

Schematic Diagrams

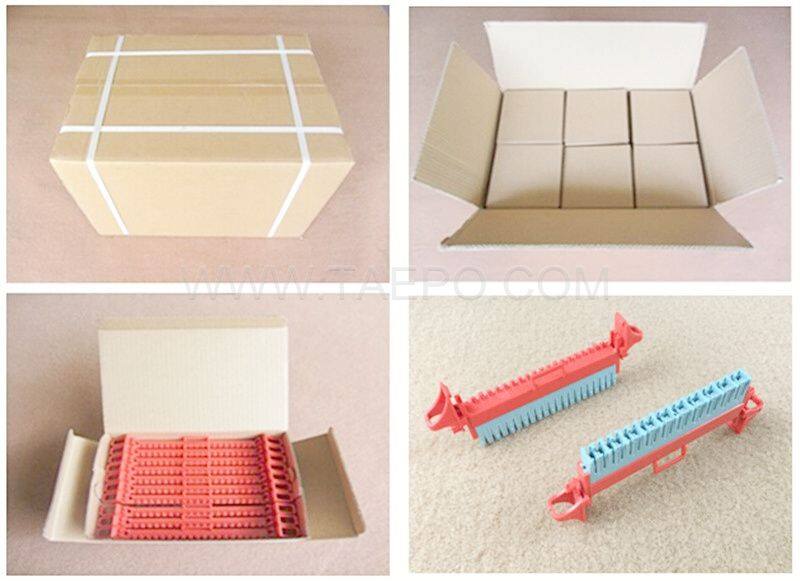

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1311-10 | 10 pairs STG disconnection module |
