Help CenterSample Free D9 Wire Wrapping DDF Block for A8 Connector From China Factory TAEPO
Related Products
-
Sample Free 1 Pair Dropwire STB Module With Over Voltage Protection With Competitive Price From China Factory TAEPOUS$ 0.8 - 1.5MOQ: 5000 Pieces -
Sample Free Without Over Voltage Protection 1 Pair Dropwire STB Module With Competitive Price REACH Test Report From China Factory TAEPOUS$ 0.5 - 0.8MOQ: 5000 Pieces
-
Sample Free 10 Pairs Disconnection STG 2000 Pouyet Module With REACH Test Report From China Factory TAEPOUS$ 0.8 - 1.5MOQ: 3000 Pieces
-
Sample Free 8 Pins KRONE PCB Connection Module With RoHS Certificate From China FactoryUS$ 0.06 - 0.12MOQ: 5000 Pieces
-
Sample Free 4 Pins 110 Idc Connector Telephone Wire PCB Connection Module for Terminal Block With RoHS CertificateUS$ 0.05 - 0.1MOQ: 10000 Pieces
Service & Certificate
Descriptions

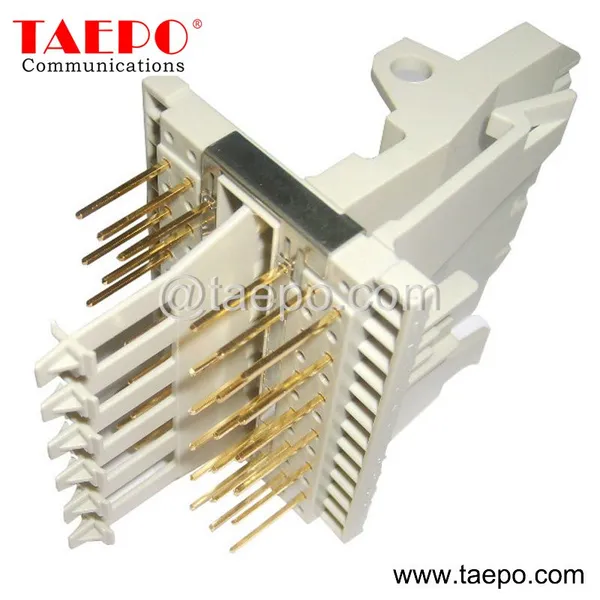

12 systems D9 DDF block 120Ω (TP-1306-D9) is used on Digital Distribution Frame (DDF) working as the interface for E1/T1 (2Mbps) where the 120ohm shielded twisted pair cable has to be interconnected, cross-connected and organized. It also features monitoring of signals for supervising digital transmission equipment.
In fixed networks the DDF should be placed in a centralized location and serve as the interface between the exchange and transmission equipment
In mobile networks, the DDF serves as the interface between a MSC (Mobile Service Switching Center) or BSC (Base Station Controller) and the transmission equipment.
Main Features
Modular Design: DDF blocks have a modular design, allowing for easy expansion or customization as the network's requirements change.
Cable Management: DDF blocks typically offer cable management features, such as cable routing channels, cable ties, and cable entry/exit points, to ensure organized and neat cable installations.
Termination Points: DDF blocks have termination points where incoming and outgoing cables can be connected.
Front Access: DDF blocks are designed with front access, which can be useful for maintenance and cable management. Front access allows for easy connection changes.
Ease of Installation: Consider the ease of installation and setup of the DDF block, especially if it requires complex configurations.
Cross-Connect Density: a high cross-connect density is essential to accommodate a large number of cross-connections between cables and equipment.

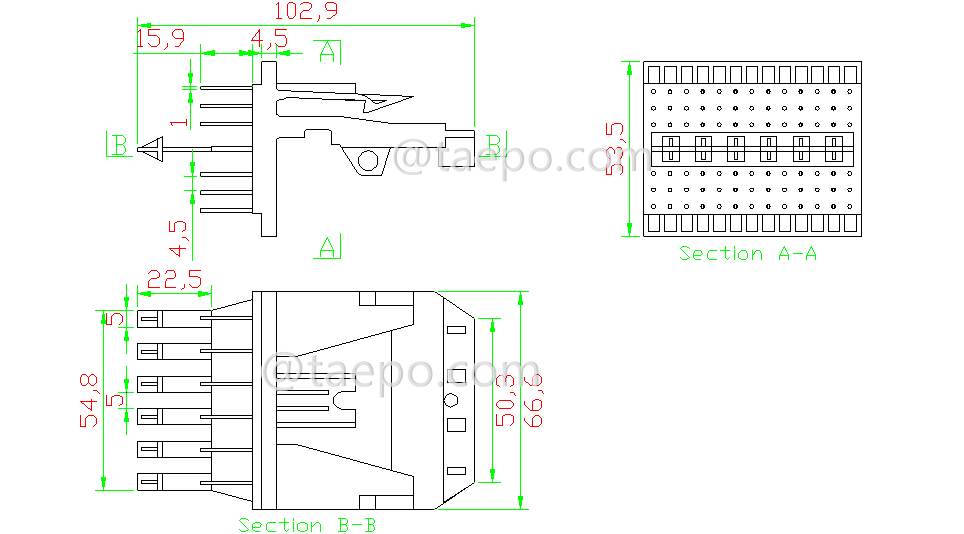

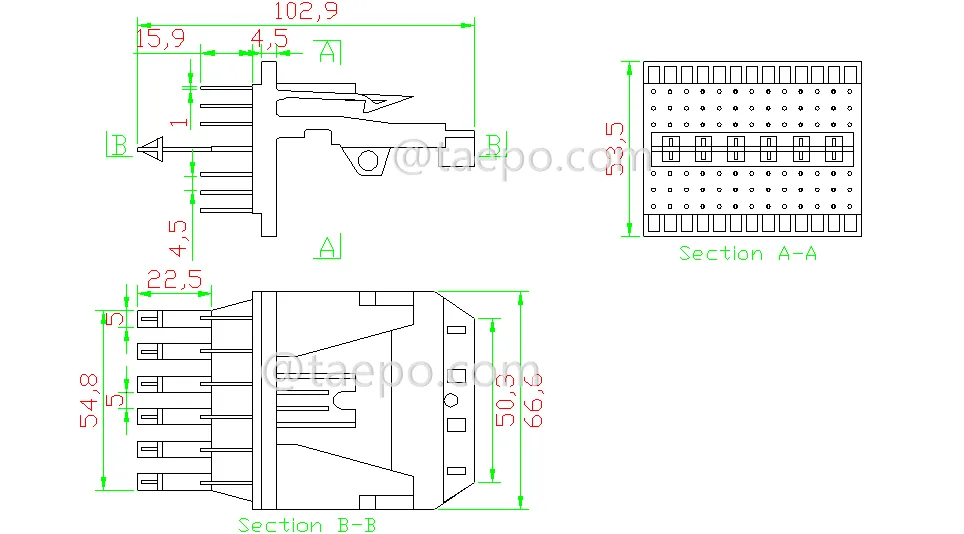

Schematic Diagrams

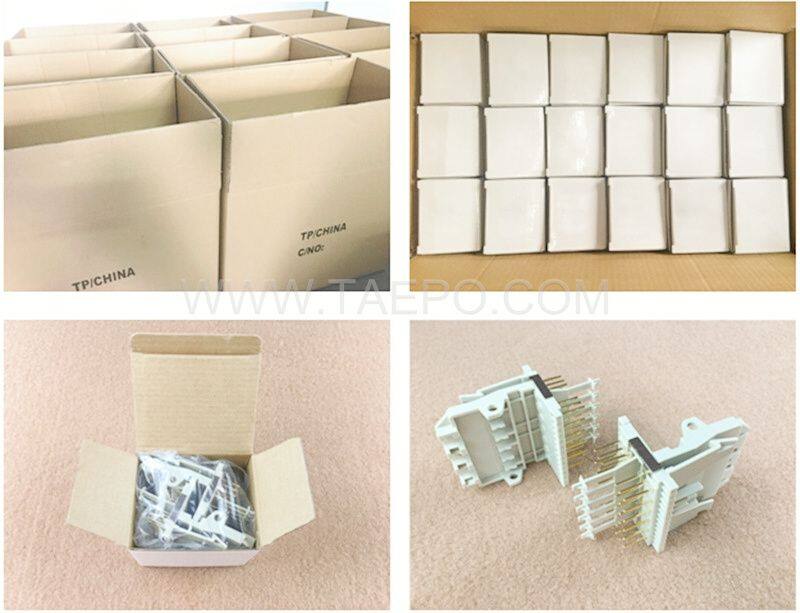

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1306-D9 | D9 DDF block |
