Help CenterSample Free 25 Pairs Gel Filled 710 Straight Splicing Module From China Factory TAEPO
Related Products
-
Sample Free With Wire Guide 10 Pair Super Compact Profile Connection Module From China Factory TAEPOUS$ 0.6 - 1.2MOQ: 3000 Pieces -
Sample Free 10 Pairs Switching Module With Wire Guide and Earth Bar With REACH Test Report From China Factory TAEPOUS$ 1 - 2MOQ: 3000 Pieces
-
Sample Free D9 Wire Wrapping DDF Block for A8 Connector From China Factory TAEPOUS$ 8 - 12MOQ: 1000 Pieces
-
Sample Free 1 Pair Dropwire STB Module With Over Voltage Protection With Competitive Price From China Factory TAEPOUS$ 0.8 - 1.5MOQ: 5000 Pieces
-
Sample Free Without Over Voltage Protection 1 Pair Dropwire STB Module With Competitive Price REACH Test Report From China Factory TAEPOUS$ 0.5 - 0.8MOQ: 5000 Pieces
Service & Certificate
Descriptions
25 pairs gel filled 710 straight splicing modules (TP-1307-25G) are designed to mass terminate communication cables of solid copper or aluminum conductor wires ranging from 0.32 to 0.8 mm of diameter (28 to 20 AWG), with a maximum conductor outside diameter (OD) of 1.65 mm. The connectors are equipped with insulation displacement tin plated contacts that provide a gas-tight termination.
This splicing modules feature an array of U-shaped, phosphor-bronze contacts and stainless steel cut-off blades. As a module is crimped, each contact strips the insulation from the positioned wire and securely grips the conductor. During this crimping operation, the cut-off blades inside each module trim the excess wire. A single crimp completes a gas-tight connection on all 25 pairs in the module, making the entire process simple and fast.
Test entry ports in the front side of the modules allow you to test without opening the module, stripping insulation, or otherwise interrupting service. Module covers, bodies, and bases are constructed of durable polycarbonate, and are compatible with materials common to telecommunications installations. The rugged design and construction of the modules withstands crimping and reopening, facilitating transfers and cable rearrangements at any time.
This type of splicing module is coverd by gel for protection against moist.
Main Features
Insulation Displacement Connection
U-shaped contacts
No Wire-stripping, screw and solder free
Reliable connections
Connectors for straight splicing
Gas tight connection
Robust long-term environmental stability
Flexible indoor and outdoor use

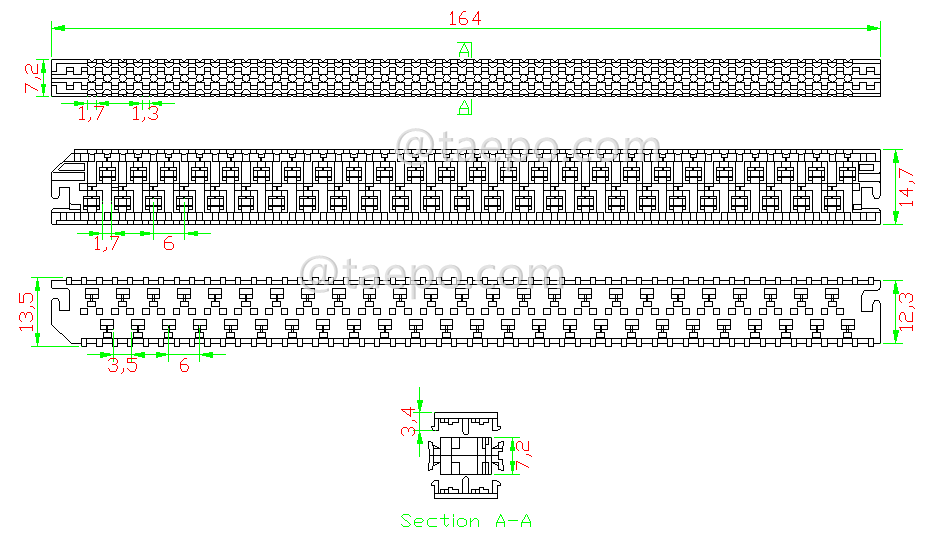

Schematic Diagrams
Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1307-25G | 25 pairs gel filled straight splicing module |
