TAEPO - Your Professional UY Connector Manufacturer in China!
What is UY Connector ?
UY connector (TP-1310-UY) which we also call "UY box". The small size of the UY connector reduces the splicing bundle O.D. The connector’s two ports accept two solid copper conductors. The connector is filled with a sealant to provide moisture resistance.It is employs an insulation displacement contact (IDC) so that stripping of the conductor insulation prior to installation is not required,and easily installed and crimped using any of the connector crimping tools (TP-5931-311)
This UY connector is applied to telephone wiring connection. The butt connector is designed for 0.4mm-0.7mm solid copper cables with max insulation diameters 1.52mm.
The connector is filled with a moisture resistant compound in order to provide moisture proof connections.The connector can provide total environmental sealing around IDC-contacts. Traction resistance must be at least 75% of cable rupture resistance Category 5, according to EIA/TIA 568A.
Main Features
Insulation Displacement Connection
No Wire-stripping, screw and solder free
Reliable connections
Gas tight connection
One crimping wire connection
Robust long-term environmental stability
Translucent material-less mistakes

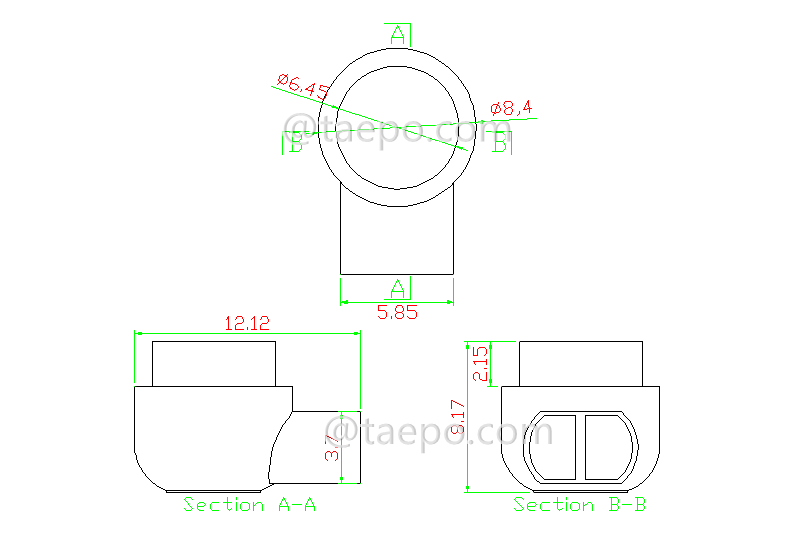

Schematic Diagrams

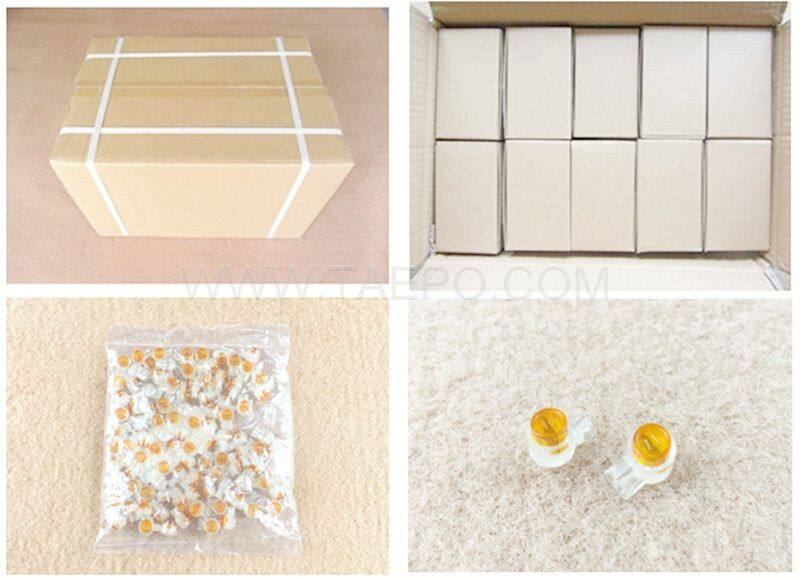

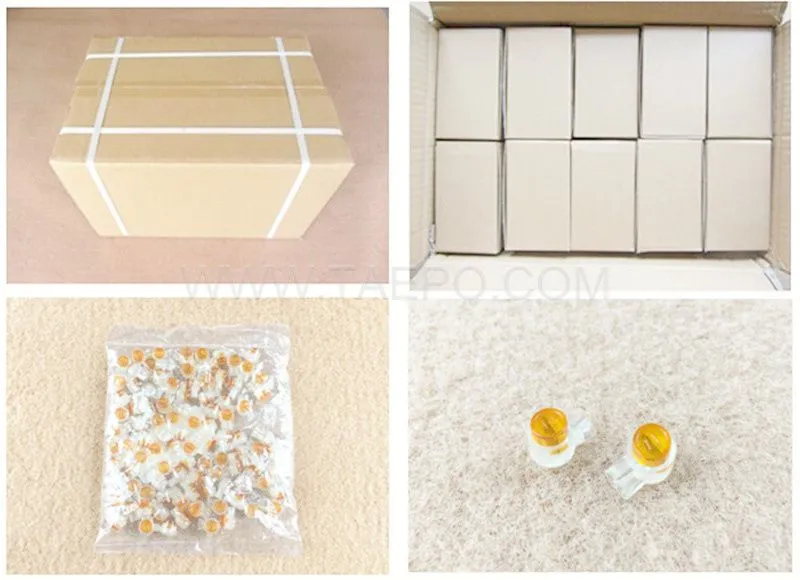

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1310-UY | UY butt connector, 2-wire, 0.4-0.7mm conductor, max insulation 1.52mm, single pin, gel filled |
