Descriptions
10 pairs QCS Quick Connection system terminal block gel filled (TP-1323-10G) also known as QCS strip is an insulation displacement connection (IDC) termination system. The QCS system is a simple-to-use, tool-less copper block, an ideal solution for outside plant applications. Whether in cross-connect cabinets, distribution point boxes or at the edge of the network, the gel-filled QCS is the solution.
Contact integrity is critical, not only at the time of installation but over the life of the connector. The QCS system can be re-opened without breaking the circuit for visual validation of the IDC connection. High-integrity gel encapsulation protects against moisture and corrosion, and is designed to remain in place even after multiple wire insertions.
Main Features
Insulation Displacement Connection
No Wire-stripping, screw and solder free
Reliable connections
Clear labeling
Exact cable guiding
Flame retardant performance
Modular design and installations
Gas tight connection
One push wire insertion
Termination cap for protection from dust
Tool-less jumpering
Gelled interconnect
Visibility to jumpers
Pair-at-once termination
Robust long-term environmental stability

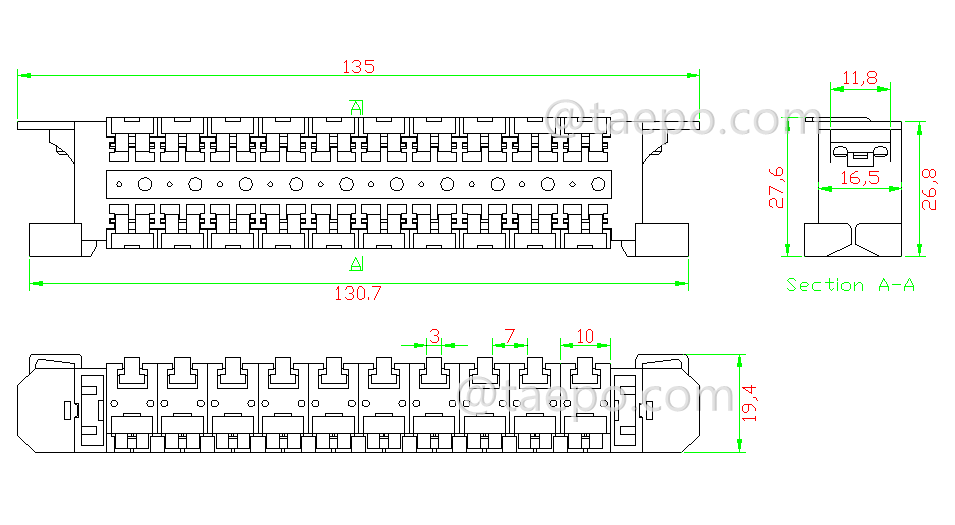

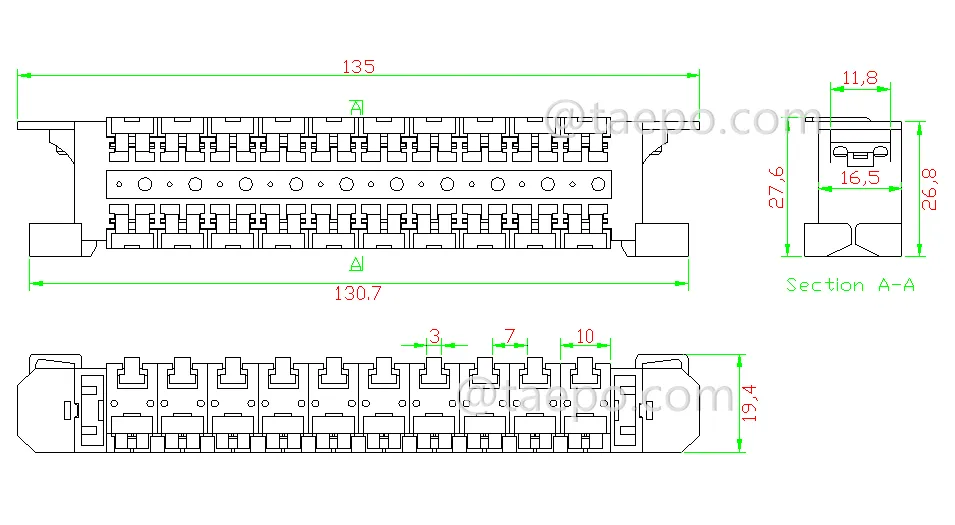

Schematic Diagrams

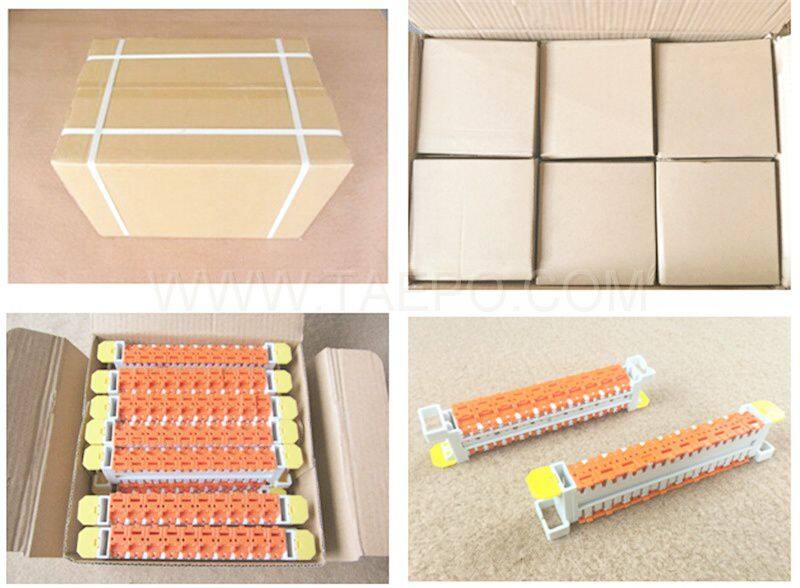

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1323-10G | 10 pairs QCS cross connection terminal block, gel filled |
