Descriptions
TAEPO -Your Professional UDW2 Connector Manufacturer In China !
What is a UDW2 Connector?
4 wire UDW2 dropwire inline connector (TP-1310-UDW2) is a full pair moisture-resistant dropwire connector especially designed for 16 - 19 AWG (1.3 mm - 0.9 mm) copper or copper clad steel conductors with insulation diameters up to .175" (4.4 mm) O.D.
A sealed moisture resistant, one pair inline aerial dropwire connector for copper or steel conductors, the inline connector is for mid-span splices where strain-relief is provided. The connector can provide total environmental sealing around IDC-contacts. It is recommended to use the crimping tool TP-5940-998.
Main Features
Insulation Displacement Connection
No wire-stripping, screw and solder free
Reliable connections
Moisture resistant
Gas tight connection
One push wire insertion
Robust long-term environmental stability
Flexible indoor and outdoor use

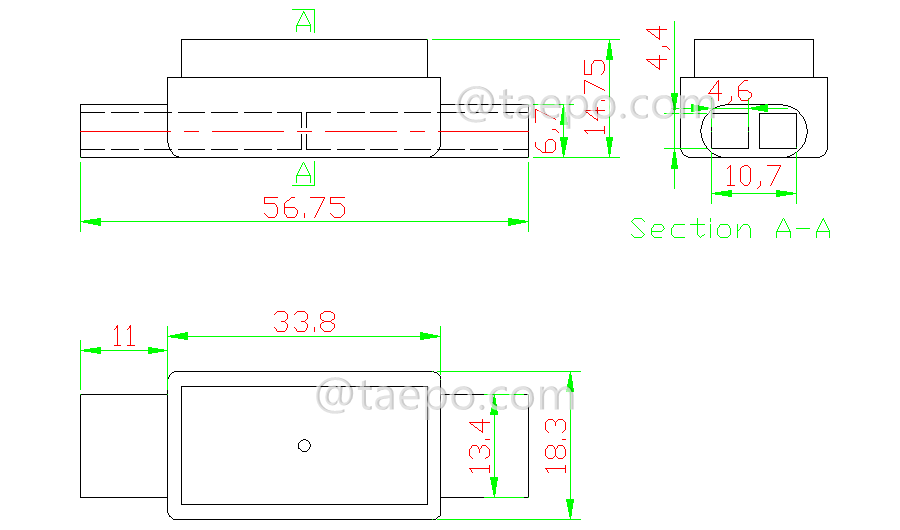

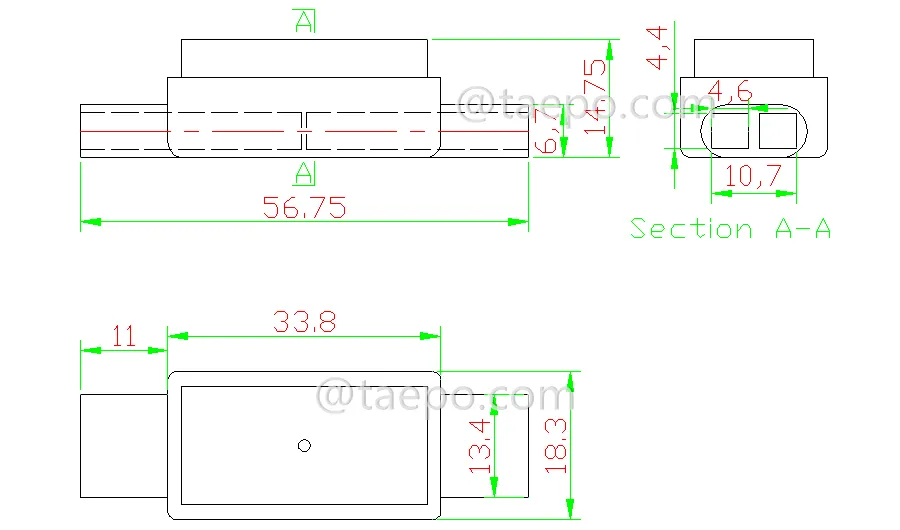

Schematic Diagrams

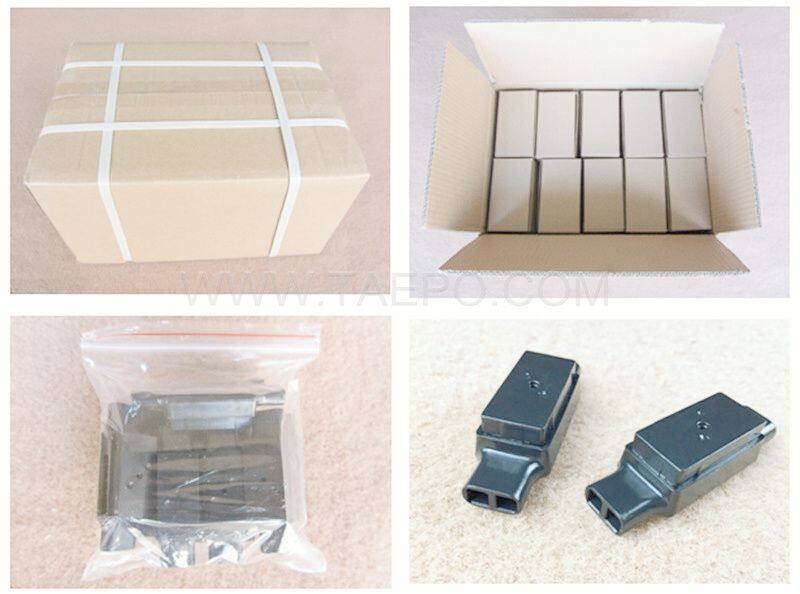

Packing Pictures
Order Data
| Item NO | Descriptions |
| TP-1310-UDW2 | UDW2 dropwire inline connector, 4-wire, 0.9-1.3mm conductor, max insulation 4.4mm, single-pin, gel filled |
