Home > Products > IDC Module > Sample Free With Wire Guide 10 Pair Super Compact Profile Connection Module From China Factory TAEPO
Sample Free With Wire Guide 10 Pair Super Compact Profile Connection Module From China Factory TAEPO
- Ningbo
- T/T L/C PayPal
- 7 days
You May Like
-
Sample Free 10 Pairs Switching Module With Wire Guide and Earth Bar With REACH Test Report From China Factory TAEPO
-
Sample Free D9 Wire Wrapping DDF Block for A8 Connector From China Factory TAEPO
-
Sample Free Idc Ur2 K3 Connector With CE Certificate From China Factory TAEPO
-
Sample Free 3 Wire Gel Filled TL1 Self-stripping Electrical Connectors With 3 Plugs From China Factory TAEPO
-
50 Pairs S 66M Wiring Phone Punch Down Block With 1 Female 50 Pin RJ21 Connection From China Factory TAEPO
-
Sample Free 3 Electrode Gas Discharge Tube GDT for LSA Over Voltage Protection Magazine From China Factory TAEPO
Product Details
| Brand Name | Neutral / OEM / TAEPO | Place of Origin | China | |
| Model Number | TP-1319-10P |
Product Description
Service & Certificate
TAEPO - Your Professional Connection Module Manufacturer In China!
Descriptions
What is profile Connection Module?
10 pair super compact profile connection module (TP-1319-10P), also called the M10 SC terminal block, is used throughout the distribution level, in the main distribution frame (MDF), in the cross connection cabinet (CCC) and in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.
It adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.
LSA connection modules use a normally one-piece contact, thus only having the function of connection instead of disconnection performances.
Main Features
Insulation Displacement Connection
No wire-stripping, screw and solder free
Reliable connections
Clear labeling
Modular design and installations
Gas tight connection
One push wire insertion
Robust long-term environmental stability
Flexible indoor and outdoor use

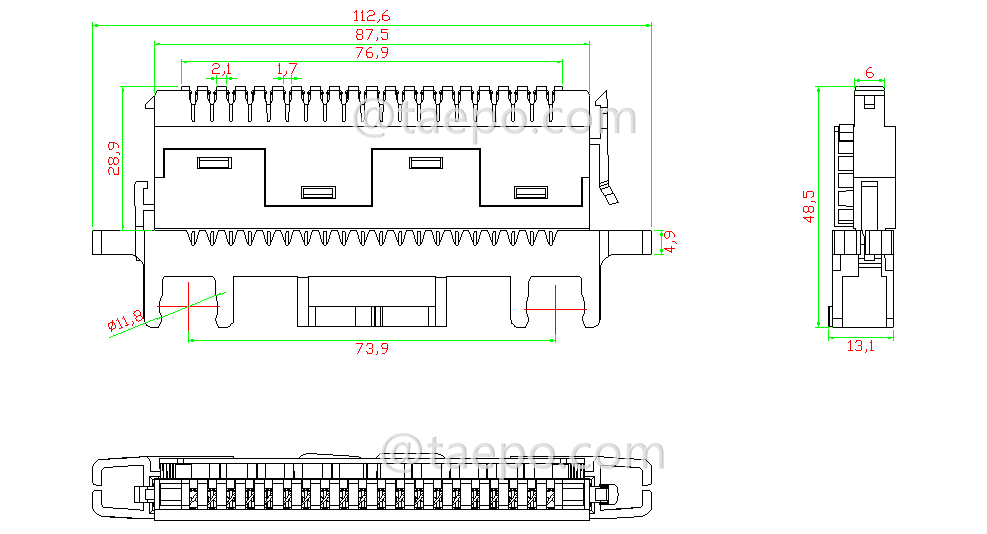

Schematic Diagrams

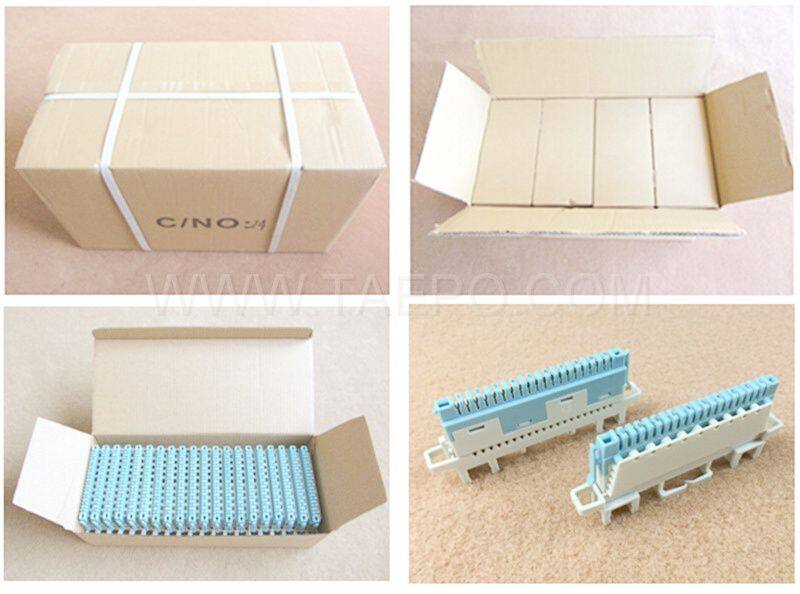

Packing Pictures
Order Data
| Item No | Descriptions |
| TP-1319-10P | 10 pairs super compact profile connection module, with wire guide |
