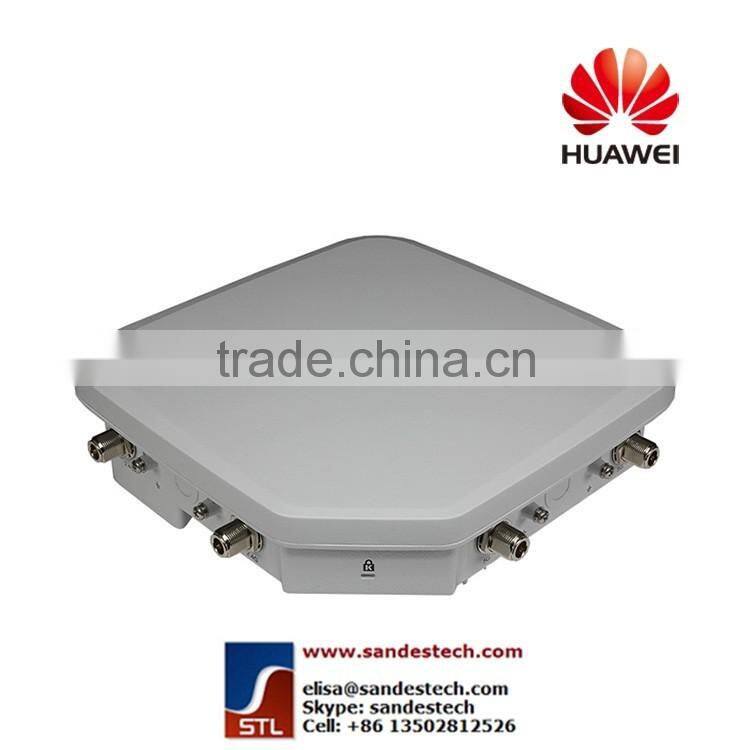

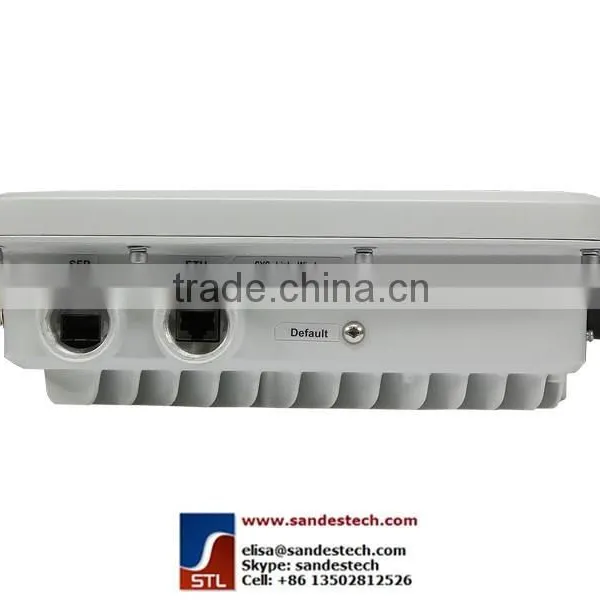

HUAWEI AP6610DN-AGN Access Point Outdoor AP 802.11n Outdoor Access Points Dual-polarization antenna 2 x 2 MIMO
AP6510DN-AGN and AP6610DN-AGN 802.11n Outdoor Access Points
Huawei AP6510DN-AGN and AP6610DN-AGN performance-enhanced 802.11n outdoor APs provide dual-band connectivity for wireless throughput up to 600 Mbit/s. Industrial-grade protection includes a dustproof and waterproof hardened metal casing that is high- and low-temperature resistant.
These APs are designed for challenging outdoor or industrial high-demand/density environments, such as pedestrian areas and factories. They also work well in bridge and wireless backhaul applications for wireless harbor, video surveillance, and train or ground vehicle scenarios.
Build a robust, secure, and scalable outdoor WLAN with Huawei AP6x10DN-AGN APs.
Features
- Extensive industrial-grade protection ensures secure, reliable, wireless operation in outdoor environments
- High-speed, reliable wireless access services at 600 Mbit/s (2.4 GHz and 5 GHz radios); 2 x 2 MIMO; 802.11a/b/g/n compatibility
- Flexible, robust connectivity with Fit or Fat mode operation, IP4/IP6 dual stacking, and RJ45 Ethernet uplink with PoE (802.3at-compliant); the AP6610DN-AGN adds an SFP optical uplink
- Internal 5-kA feeder surge protection and 6-kA or 6-kV surge protection on the Ethernet port plus an internal 20-kA surge protector for the AC input on the AP6610DN-AGN
- Strong environmental adaptability with fast startup in low temperatures with adaptive bandwidth management and dynamic management of radio interference
- Enhanced security features include multiple authentication, encryption modes, and security protection; supports unified authentication on the AC or NMS

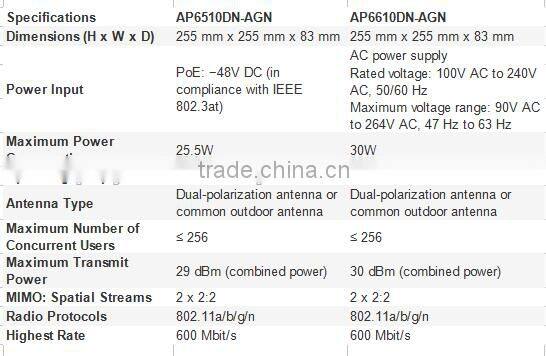

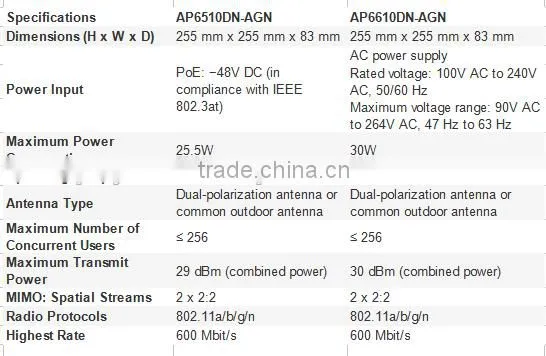

Specifications
Item |
Description |
|
Technical specifications |
Dimensions (H×W×D) |
83 mm×255 mm×255 mm |
Weight |
2.2 kg |
|
System memory |
128 MB DDR2 |
|
Power specifications |
Power input |
POE Power: -48V DC |
Maximum power consumption |
25.5 W |
|
Environment parameters |
Operating temperature |
-40°C to +60°C |
Storage temperature |
-40°C to +70°C |
|
Humidity |
0% to 100% (non-condensing) |
|
Waterproof grade |
IP67 |
|
Altitude |
–60 m to 4000 m |
|
Radio Specifications
Item |
Description |
|
Antenna type |
Dual-polarization antenna or common outdoor antenna |
|
Maximum number of concurrent users |
128 |
|
Maximum transmit power |
2.4G: 26dBm |
|
Maximum |
2.4 GHz |
5 GHz |
NOTE:The number of non-overlapping channels allowed varies in different countries. For details, see the Country codes & Channels compliance status | ||
About the distribution:
As a golden distributor of HUAWEI, all of HUAWEI prodcucts from Polytrade/Sandes Technology are 100 % Original and Brandnew unless per clients’ requests; customers could claim 10time cost if you find we offer used or fake products. We offer one year warranty for all on-display products.
The HUAWEI products by us are whole series of hot-sell products, and if you did not find what you need on alibaba web, please contact us via sales[at] to gain supports.
