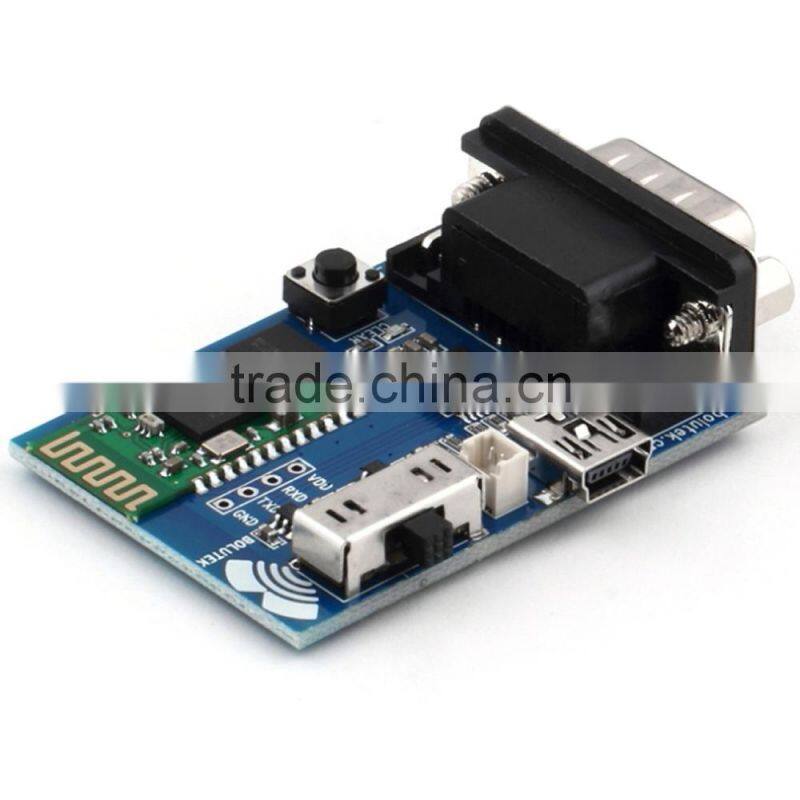

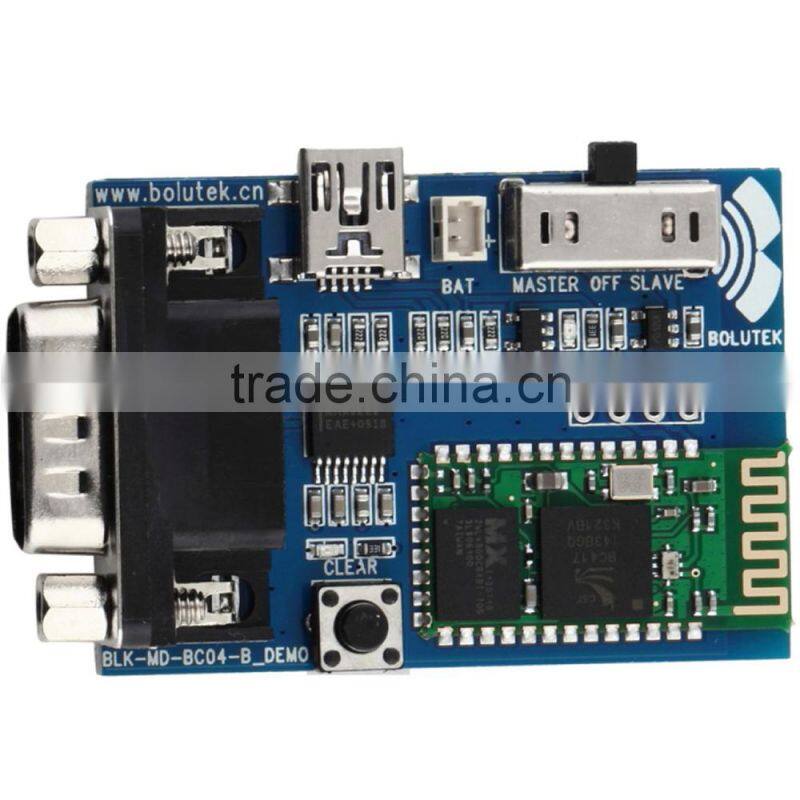

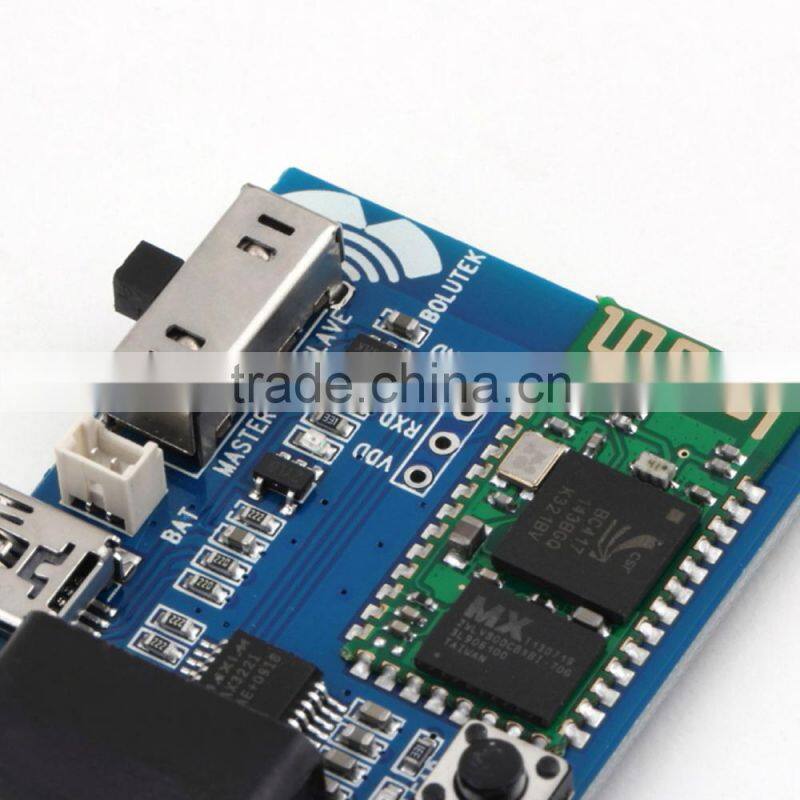

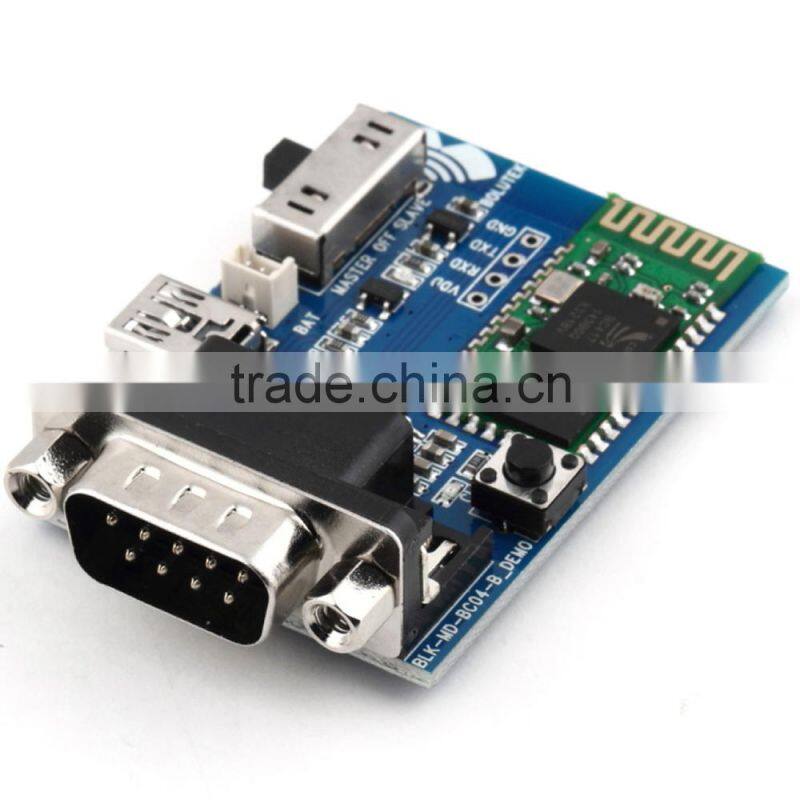

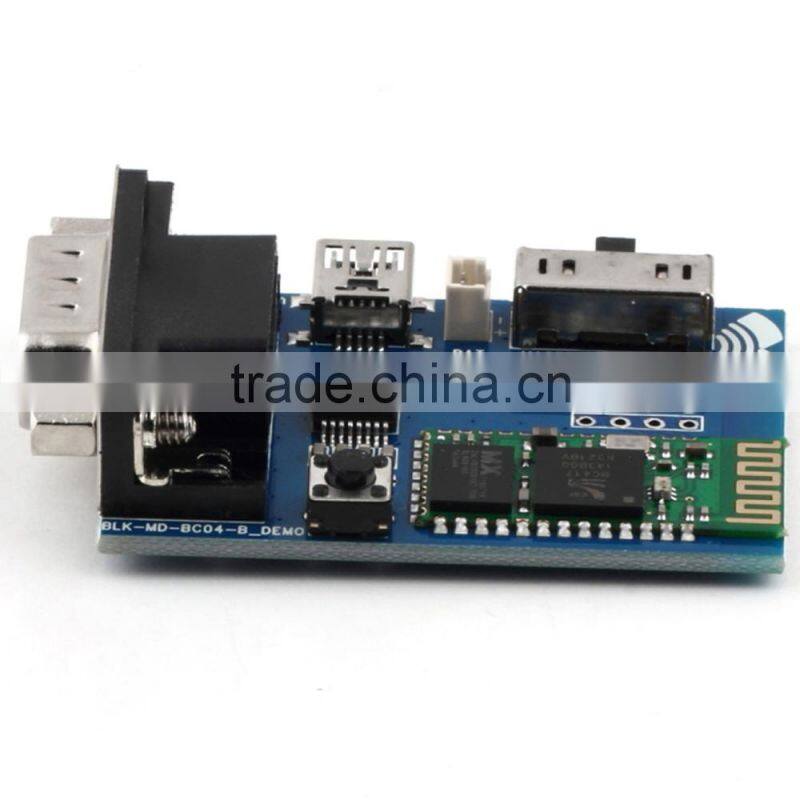

Bluetooth Audio Module RS232 Serial Bluetooth Module HC-06 Adapter Communication Master-Slave 2 Modes MINI USB

Bluetooth Audio Module RS232 Serial Bluetooth Module HC-06 Adapter Communication Master-Slave 2 Modes MINI USB

Features:

This item is embedded in the bluetooth communication protocol , so there is no need to install the driver . It is applied to Windows DOS, Linux and other non - graphical operating system.

Csr bluetooth chip bluetooth 2.1 standard improves the BER performance of the system and automatic frequency-hopping spread spectrum, which enables highly efficient secure communication and improves strong anti-interference ability

Users can set by using the at command from 1200bps nm total 12 different baud rate (default is 9600,n,8,1), and can also set for the device more personalized bluetooth name

It supports the bluetooth serial port profiles (spp)

Specifications:

Model:RS232

Sch download

Executive standard bluetooth sig, v2.1 edr

Bluetooth protocol the bluetooth serial port profile ( the spp )

Interface rs232

Communication speed :1200,2400,4800,9600,19200,38400,57600,115200,230400,460800,921600,1382400 bps

Modulation 2.4g ism direct sequence frequency hopping (fhss)

Communication distance: 15 meters

Transmit power: 4 dbm

Receiving sensitivity -79dbm

Operating voltage: 5V

Sleep current operating current: 40mA 1.6mA ( typical value)

Operating temperature storage temperature -10-50 ℃ -20-80 ℃

Size:5.7x 308 x 1 cm

Net weight:18g

Package weight:28 g

Package Content:

1 x RS232 Bluetoothmodule
