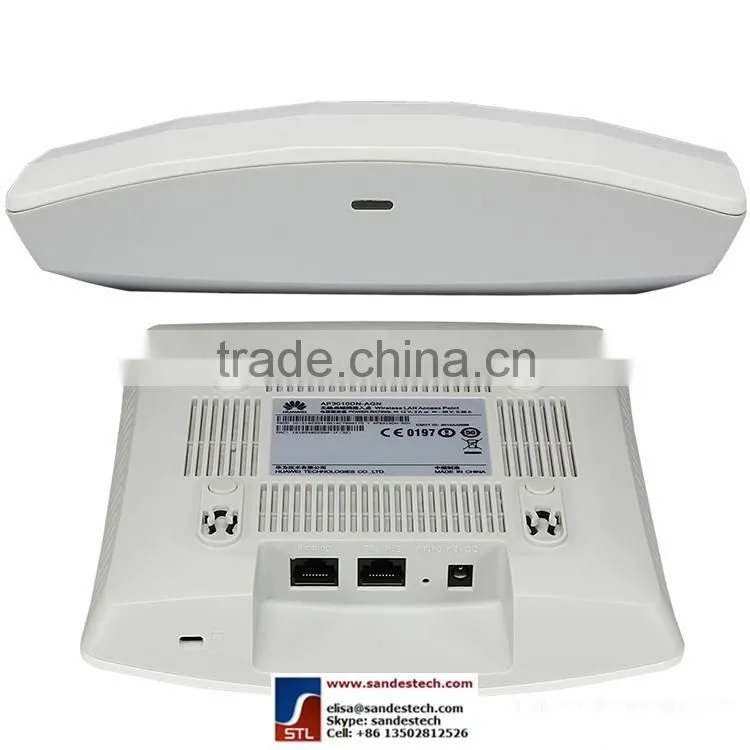

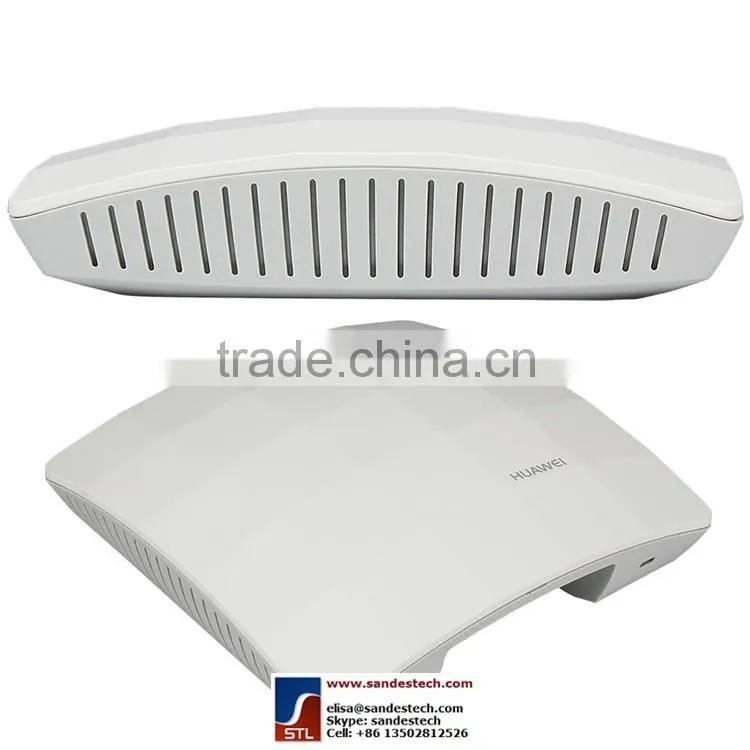

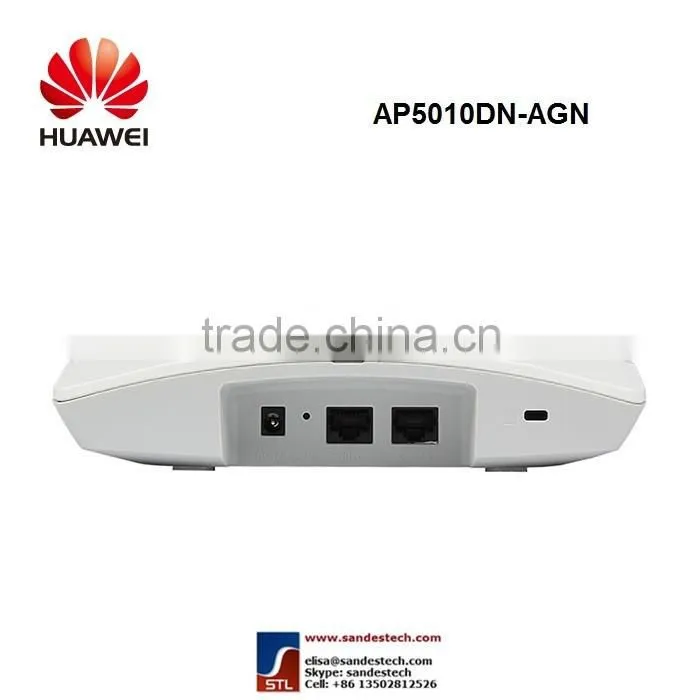

HUAWEI AP5010 Access Point Indoor AP AP5010SN-GN AP5010DN-AGN 2 x 2 MIMO 2.4 GHz 5 GHz bands
AP5010 Series Access Points
Huawei AP5010 Series wireless APs offer superior value and flexibility with 2.4 GHz and 5 GHz radios, IEEE 802.11a/b/g/n standards compliance, and Fit AP or Fat AP operation. These latest-generation APs support MIMO technology, provide wider coverage, and offer services simultaneously on 2.4 GHz and 5 GHz frequency bands to connect more users.
Recommended for SMEs and high user-density locations such as enterprise offices, campuses, hospitals, large shopping malls, and exhibition centers.
Deploy Huawei’s AP5010 Series for an efficient, cost-effective 802.11n AP with future-friendly flexibility.
Features
- Achieve highly stable, secure 802.11n Internet connectivity at reduced cost for public and private spaces
- Uses an energy-efficient, new-generation 2 x 2 MIMO chip and provides up to 300 Mbit/s for each radio frequency
- Comprehensive security includes group-based user access control and multiple authentication and encryption modes as well as rogue AP and STA detection, WIDS, and WIPS
- Available in two models: AP5010SN-GN supports the 2.4 GHz frequency band for data rates up to 300 Mbit/s; AP5010DN-AGN supports 2.4 GHz and 5 GHz frequency bands for data rates up to 600 Mbit/s
- Supports IPv4/IPv6 dual stack and can be configured as a Fat AP, Fit AP, or wireless bridge (AP AP5010DN-AGN only) or in 80211.n networks (WDS or mesh) for maximum flexibility
- Use with an AC and Network Management System (NMS) to monitor network performance in real time
Specifications
Specifications |
AP5010DN-AGN |
AP5010SN-GN |
Dimensions (H x W x D) |
180 mm x 180 mm x 50 mm |
180 mm x 180 mm x 50 mm |
Power Input |
12V DC ± 10% PoE: –48V DC (in compliance with IEEE 802.3af/at) |
12V DC ± 10% PoE: –48V DC (in compliance with IEEE 802.3af/at) |
Maximum Power Consumption |
9.5W |
6.0W |
Operating Temperature |
–10℃ to +50℃ |
–10℃ to +50℃ |
Antenna Type/Antenna Gain |
Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi |
Built-in antenna/4 dBi |
Maximum Number of Concurrent Users |
≤ 128 |
≤ 128 |
Maximum Transmit Power |
20 dBm (combined power) |
20 dBm (combined power) |
MIMO: Spatial Streams |
2 x 2:2 |
2 x 2:2 |
Wireless Protocol |
802.11a/b/g/n |
802.11b/g/n |
Maximum Speed |
600 Mbit/s |
300 Mbit/s |
Specifications
Item |
Description |
|
Technical specifications |
Dimensions (H×W×D) |
50 mm×180 mm×180 mm |
Weight |
0.4 kg |
|
System memory |
128 MB DDR2 |
|
Power specifications |
Power input |
DC 12V±10% |
Maximum power consumption |
AP5010DN-AGN: 9.5 W |
|
Environment parameters |
Operating temperature |
-10°C to +50°C |
Storage temperature |
-40°C to +70°C |
|
Humidity |
5% to 95% (non-condensing) |
|
Waterproof grade |
IP31 |
|
Altitude |
–60 m to 4000 m |
|
Radio Specifications
Item |
Description |
|
Antenna type |
Built-in antenna |
|
Antenna gain |
AP5010DN-AGN: 2.4 GHz: 4 dBi |
|
Maximum number of concurrent users |
128 |
|
Maximum transmit power |
17dBm |
|
Maximum number of non-overlapping channels for AP5010DN-AGN |
2.4 GHz |
5 GHz |
NOTE:The number of non-overlapping channels allowed varies in different countries. For details, see the Country codes & Channels compliance status | ||
Maximum number of non-overlapping channels for AP5010SN-GN |
802.11b/g |
|
NOTE:The number of non-overlapping channels allowed varies in different countries. For details, see the Country codes & Channels compliance status | ||
About the distribution:
As a golden distributor of HUAWEI, all of HUAWEI prodcucts from Polytrade/Sandes Technology are 100 % Original and Brandnew unless per clients’ requests; customers could claim 10time cost if you find we offer used or fake products. We offer one year warranty for all on-display products.
The HUAWEI products by us are whole series of hot-sell products, and if you did not find what you need on alibaba web, please contact us via sales[at] to gain supports.
