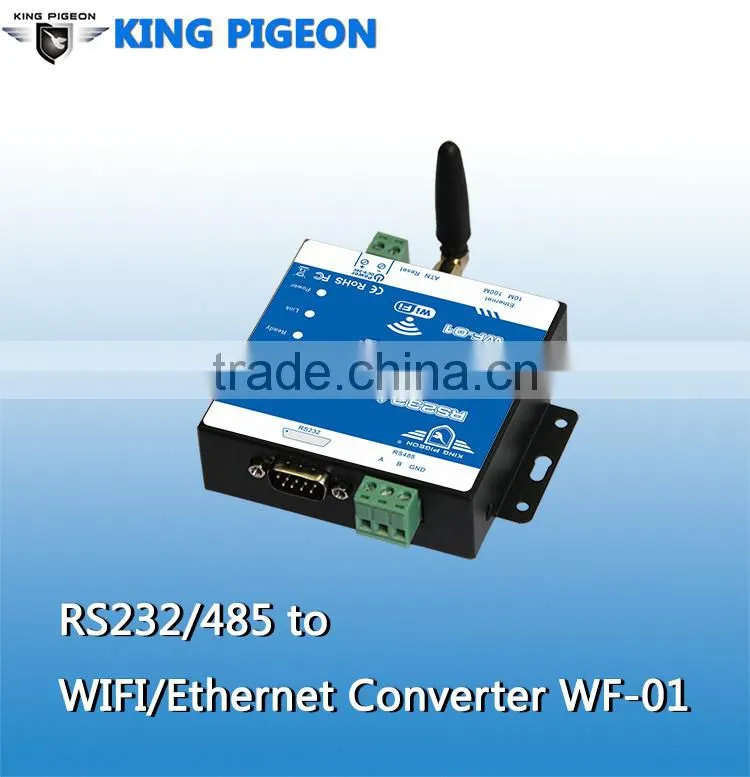

Serial wifi module wire Ethernet PCB antenna transparent transmission WF-01
Serial wifi module wire Ethernet PCB antenna transparent transmission WF-01 Converter (RS232/485+RJ45)
Fast Access WiFi!
RS232 RS485 automatic switching!
RJ45 network connection, support wired Ethernet transmission!
Multiple applications for data transmission from wired to wireless!

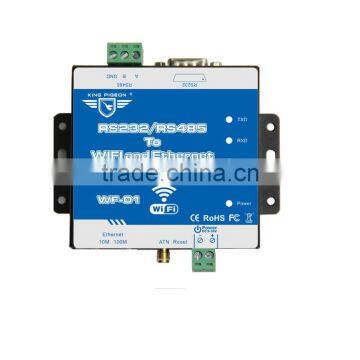

WF-01 is a wireless networking router, which is used for project of RS232/ RS485 serial equipment to WIFI or Ethernet networking! Because of it, lots of industrial data transmission via serial to WIFI or Ethernet can be possible!

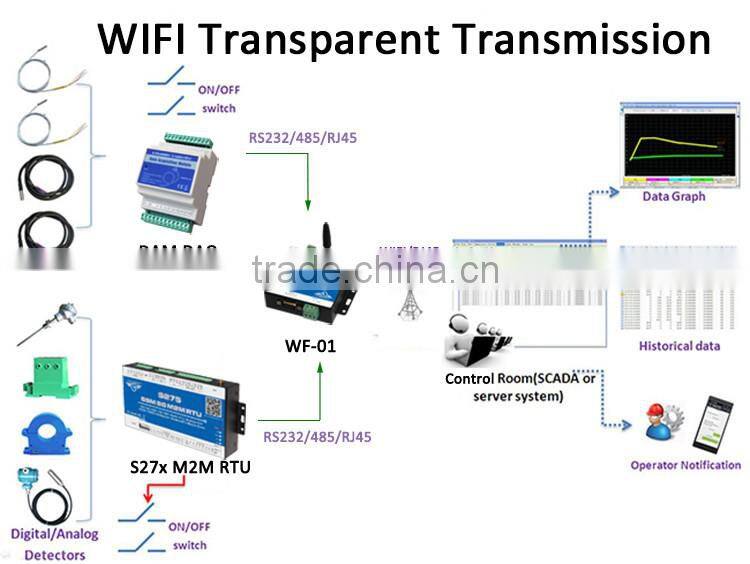

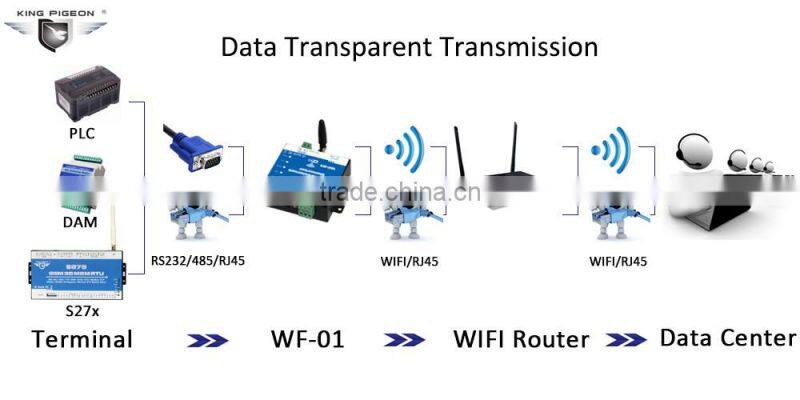

WF-01 provides a serial port to WIFI function, can be RS-232/485 converted into a TCP/IP serial network interface, RS-232/485 serial port and WIFI/ Ethernet bidirectional data transparent transmission.The serial device can transfer the data to TCP/IP network interface connect to the network for data communication, communication extended the range to serial device greatly!
Advantages:
1.Can use as a Router;
2. Support Hardware AP, HTTPD Client and WEB IO;
3.Suport TCPB Function;
4.Fast Access WiFi;
5.Support hardware flow control (RTS/CTS) RS232 interface, male mouth(needle) consistent with
puter pin definition;
7.RS232 RS485 automatic switching;
8. Support Webpage Configuration;
9.RJ45 network connection, support wired Ethernet transmission;
10.Rich status indicator light: Power/Ready/Link/RXD/TXD;
11. Reload button, do not worry incorrect settings(in working status, press the button 3s then it load to 12.default settings and automatic restart);
13. Design with positioning hole, convenient installation;
14.Highest support baud rate 460800 bps;
15.Optional TCP Server/TCP Client/UDP Client/ UDP Server mode, the TCP Server mode can support up to
16.32 Client connection;
17.Multiple applications for data transmission from wired to wireless.
Setting
1.Webpage Configuration;
2.Highly Security & Fast Speed for data transmission;
Applications:
1.Data transmission System applications;
2.Automatic monitoring system;
3.Weather Stations remote control and data logging;
4.Oil and gas pipelines remote control and data logging;
5.Transformer stations;
6.Supervision and monitoring alarm systems
7.Transformer stations;
8.River Monitoring and Flood Monitoring;
9.Tanks, levels, temperatures,water leakage applications;
10.PLC and Automation System, M2M;
Specifications
|
Item |
Parameter |
Wireless |
Certification |
FCC/CE |
Wireless standard |
802.11 b/g/n |
|
Frequency range |
2.412GHz-2.484GHz |
|
Transmit power |
802.11b: +20dBm(Max.) |
|
802.11g: +18dBm(Max.) | ||
802.11n: +15dBm(Max.) | ||
configurable | ||
|
Receiver Sensitivity |
802.11b: -89dBm |
|
802.11g: -81dBm | ||
802.11n: -71dBm | ||
Antenna Option |
External 3Dbi antenna |
|
Hardware |
Data Interface |
UART: 1200bps - 230400bps |
Ethernet: 100Mpbs | ||
GPIOs | ||
Operating voltage |
5-18V (+/-5%) |
|
Operating current |
170mA~300mA |
|
Operating temp |
-40℃- 85℃ |
|
Storage temp |
-40℃- 125℃ |
|

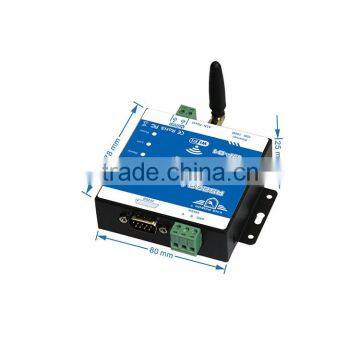

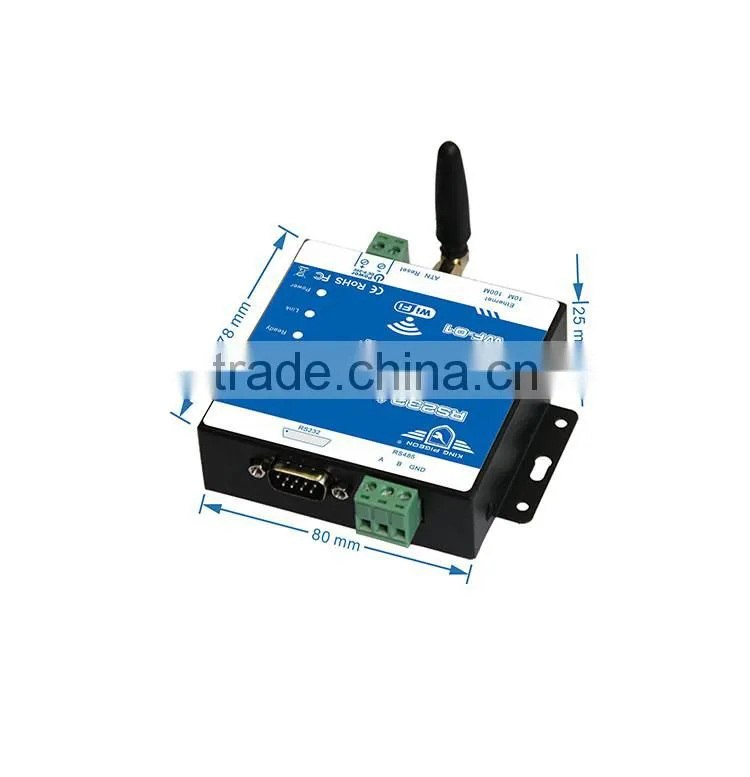

Dimensions |
80×78×25mm |
|
Software |
Network type |
Station/AP mode, STA+AP |
Security mechanisms |
WEP/WPA-PSK/WPA2-PSK |
|
Encryption |
WEP64/WEP128/TKIP/AES |
|
Work mode |
Transparent Transmission |
|
Serial command |
AT+instruction set |
|
Network Protocol |
TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP |
|
Max. TCP Connection |
32 |
|
User Configuration |
Web Server&AT command |
|
User Application |
Supportcustomizedapplication software |
