HUAWEI AC6005 Wifi WLAN AC access controller AC6005-8-PWR AC6005-8 L-AC6005-8AP-S L-AC6005-1AP-S

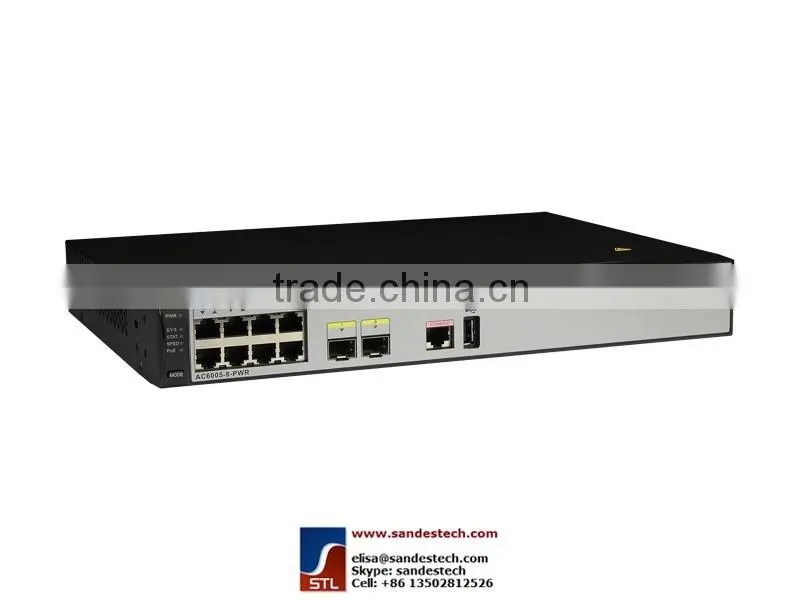

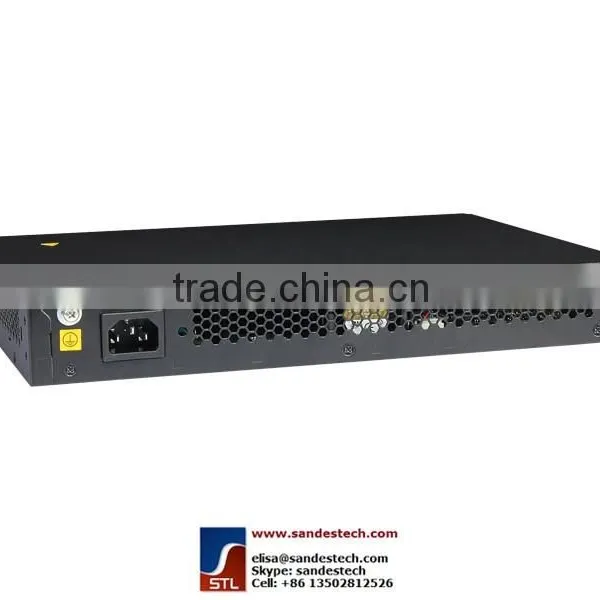

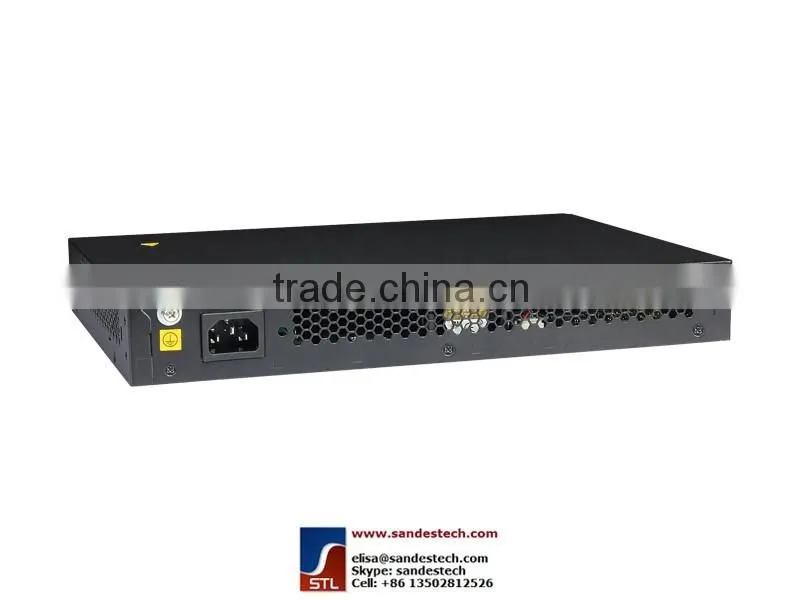

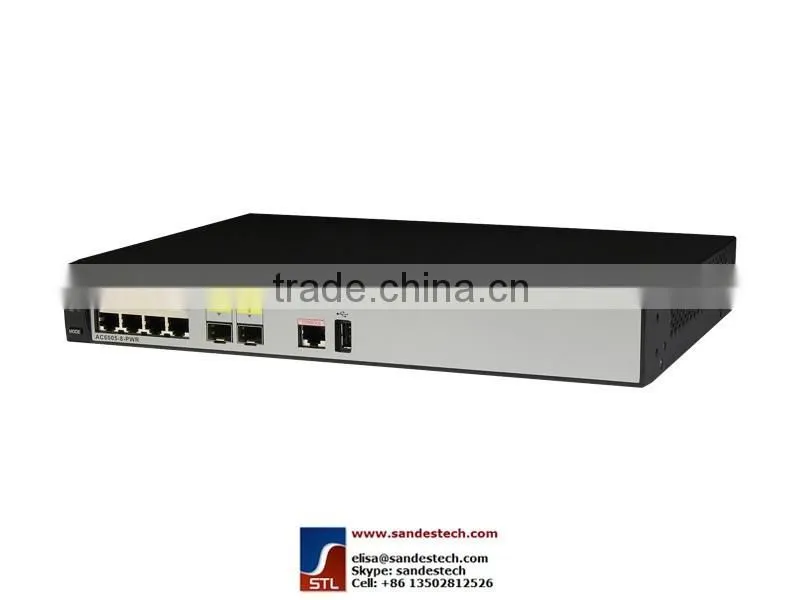

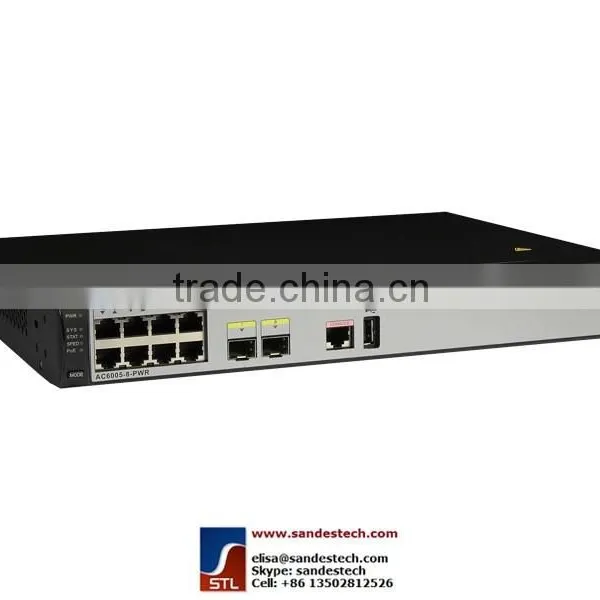

HUAWEI Access Controller AC6005-8-PWR AC6005-8
The Huawei AC6005 Access Controller provides wired and wireless access services for campus and office networks in small- to medium-sized enterprises and branches. Flexible and robust Fit AP + AC architecture delivers 4 Gbit/s forwarding, supports up to 2,048 access users, and easily scales.
Huawei AC6005 is a small box wireless access controller that provides wired and wireless access services. It delivers flexible campus and office networking solutions for small-to medium-sized enterprises and branches. Huawei offers two AC6005 models: AC6005-8 and AC6005-8-PWR with PoE support.
There are two models are available: Model AC6005-8 features 6 x GE + 2 x GE Combo (copper or SFP optical) ports; Model AC 6005-8-PWR adds PoE support for eight ports (802.3af) or PoE+ (802.3at) for four ports.
Get a cost-effective mobility solution and simplify mobility management with the Huawei AC6005.
Features
- Extend business capabilities with high-performance mobility
- Small size, large capacity, and high performance AC with 8 x GE ports, 4 Gbit/s forwarding capability, 256 managed APs, and 2K access users; easily deployed as a standalone device or rack-mounted
- Flexible data forwarding provides direct forwarding and tunnel forwarding; compatible with 802.11/a/b/g/n wireless Access Points (APs) and Huawei new-generation 802.11ac APs
- Fine-grained user rights management with user-and role-based access controls; rich authentication mechanisms minimize WLAN security threats
- Flexible operation and maintenance methods: eSight, web, or Command Line Interface (CLI)
- Dynamic energy management reduces total power consumption; provides even higher performance and lower power consumption when coupled with an intelligent device management system, such as the eSight NMS
Specifications
Specifications |
AC6005 |
Ports |
6 x GE + 2 x GE Combo |
PoE |
8-port PoE or 4-port PoE+ |
Power Supply |
AC |
Forwarding Capability |
4 Gbit/s |
Maximum Number of Managed APs |
256 |
Maximum Number of Access Users |
2K |
AP-AC Networking |
Layer 2 or Layer 3 networking |
Forwarding Modes |
Direct forwarding (distributed forwarding or local forwarding) or tunnel forwarding (centralized forwarding) |
AC Active/Standby Mode |
1+1 HSB or N+1 backup |
Radio Protocols |
802.11a/b/g/n/ac |
Physical Specifications
Item |
Description |
|
Dimensions (width x depth x height) |
320 mm×233.6 mm×43.6 mm |
|
Maximum power consumption |
AC6005-8-PWR: 163.6 W (device power consumption: 39.6 W, PoE: 124 W) |
|
Weight |
AC6005-8-PWR: 2.30 kg |
|
Operating temperature |
-5ºC to +50ºC |
|
Relative humidity |
5% RH to 95% RH, non-condensing |
|
Operating altitude |
-60 m to 5000 m |
|
AC input voltage |
Rated voltage |
100 V AC to 240 V AC, 50/60 Hz |
Voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
System Configuration
Item |
Specifications |
Processor |
Dominant frequency: 1 GHz |
Switching capacity |
20 Gbit/s |
Packet forwarding capacity |
4 Gbit/s |
DDR memory |
2 GB |
Flash memory |
2 GB (SD card) |
Protocol and Management Capabilities
Parameter |
Specifications |
Number of managed APs |
128 |
Number of access users |
Entire device: 2K Single AP: a maximum of 256 (depending on the AP model) |
Number of MAC address entries |
4K |
Number of VLANs |
4K |
Number of routing entries |
4K |
Number of multicast forwarding entries |
4K |
Number of DHCP IP address pools |
4K |
Number of local users |
128 IP address pools, each of which contains a maximum of 16K IP addresses |
Number of ACLs |
1000 |
Number of ESSIDs |
4K |
User group management |
1K |
About the distribution:
As a golden distributor of HUAWEI, all of HUAWEI prodcucts from Polytrade/Sandes Technology are 100 % Original and Brandnew unless per clients’ requests; customers could claim 10time cost if you find we offer used or fake products. We offer one year warranty for all on-display products.
The HUAWEI products by us are whole series of hot-sell products, and if you did not find what you need on alibaba web, please contact us via sales[at] to gain supports.
