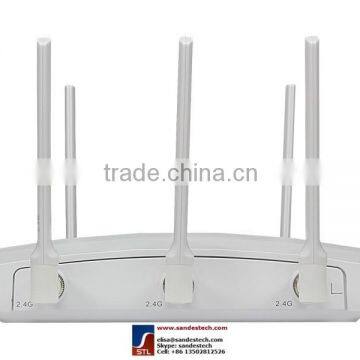

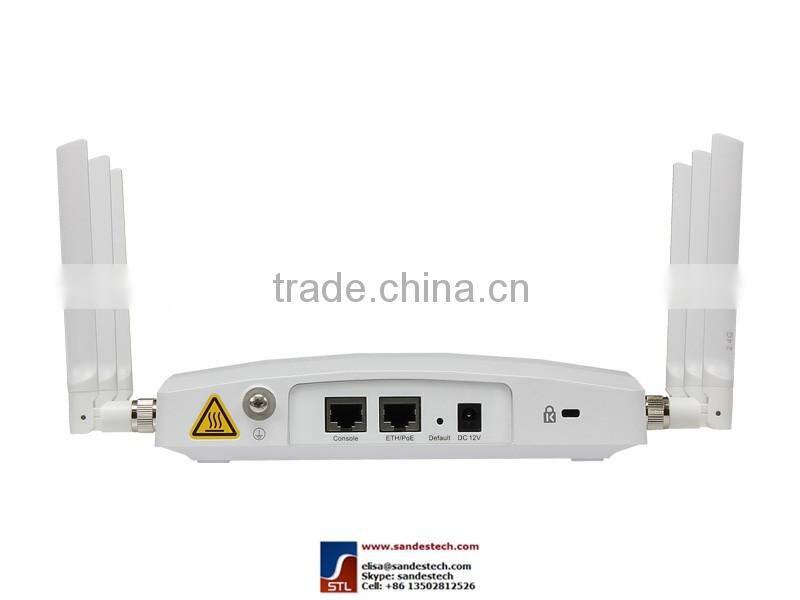

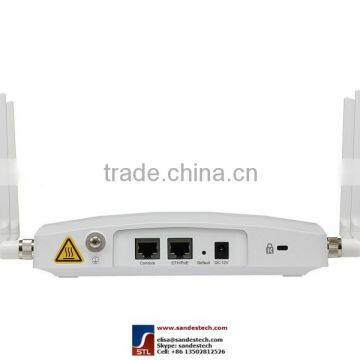

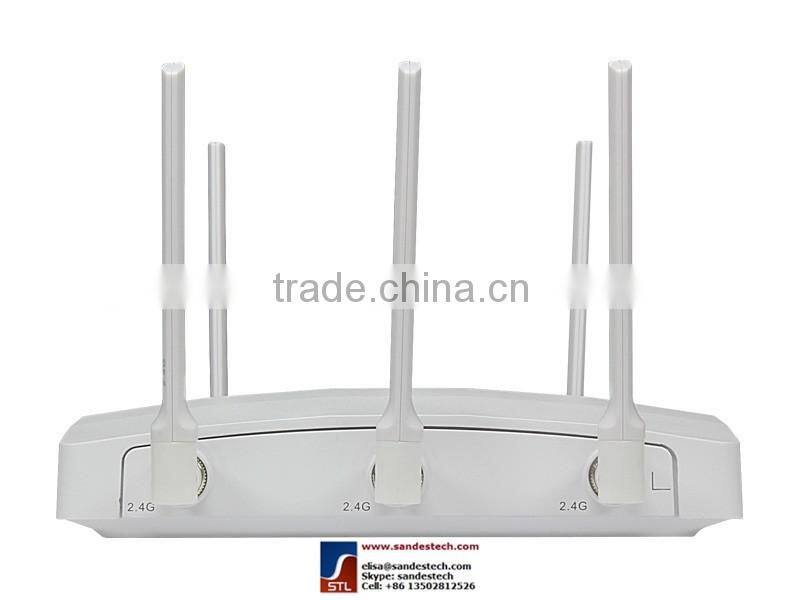

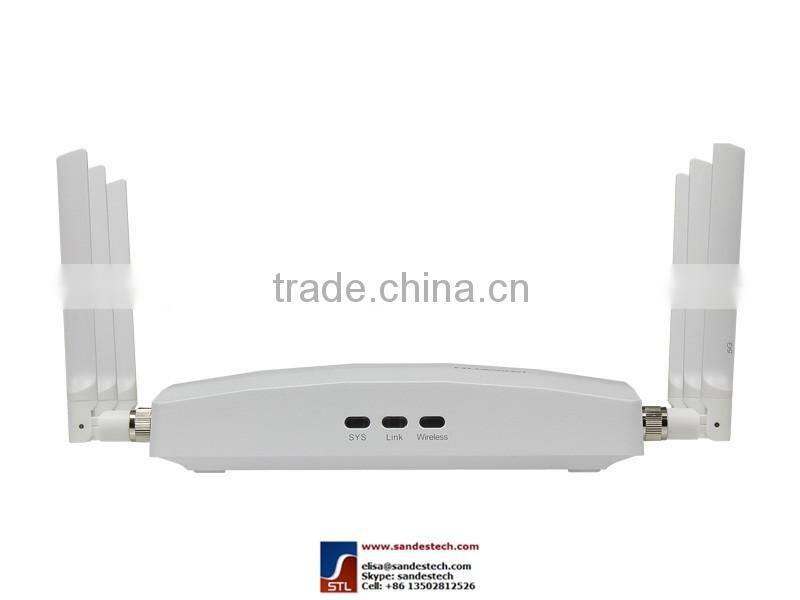

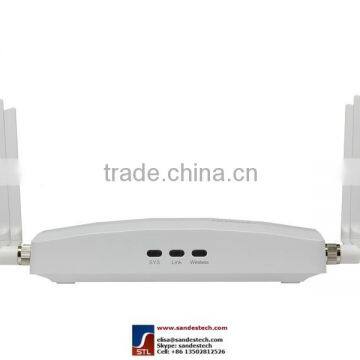

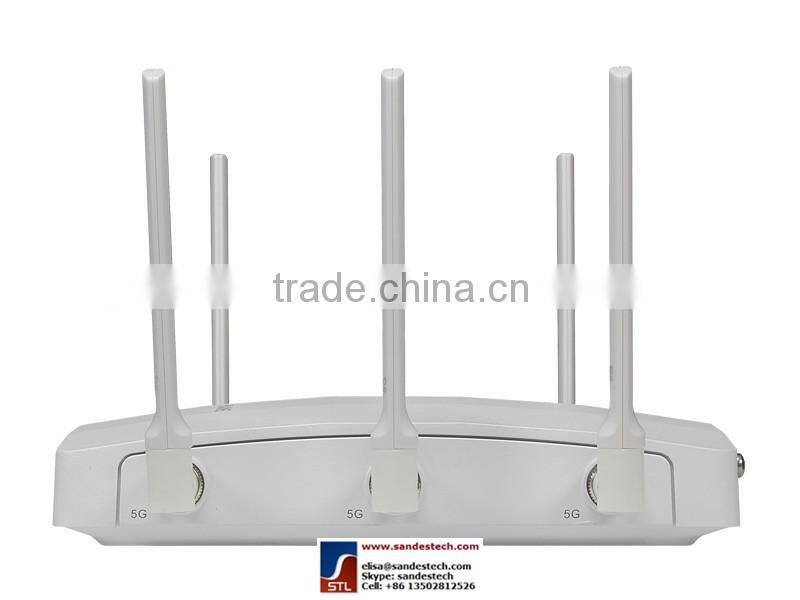

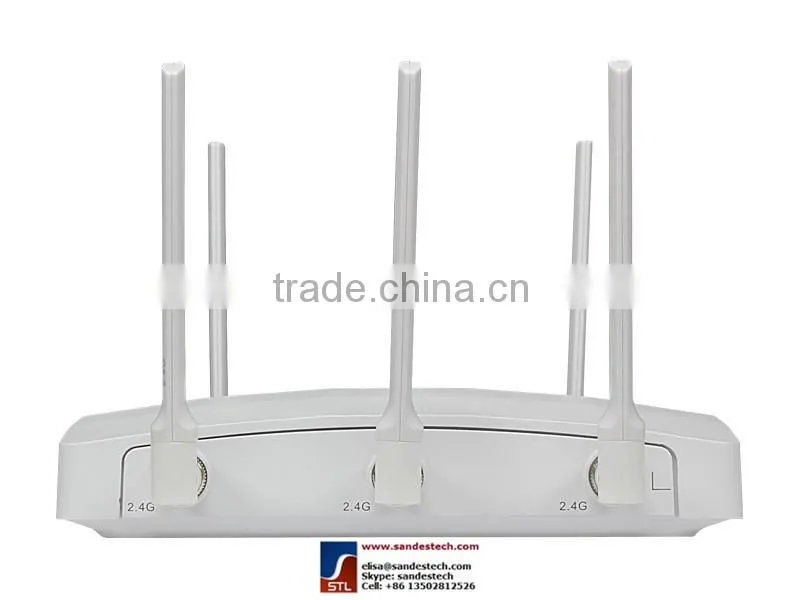

Huawei AP7110 AP7110DN-AGN AP7110SN-GN Access Points 3 x 3 MIMO Fit AP bridge WDS &Mesh networking PoE AP
AP7110 Series Premium Access Points
Huawei AP7110 Series Access Points offer powerful WLAN connectivity for data forwarding speeds up to 900 Mbit/s. These top-of-the-line 802.11n APs integrate multiple Huawei-patented technologies to deliver quality wireless services in high-user density or large-scale deployment scenarios, such as enterprise offices, airports, digital trains, and sports venues. 3 x 3 MIMO high-gain omni-directional external antennas provide superior coverage and connect up to 256 users.
Get secure, super-fast broadband services and comprehensive WLAN coverage with Huawei AP7110 Series Premium APs.
Features
- Easily deploy a wireless network with superior radio performance in challenging indoor environments
- 3 x 3 MIMO, dynamic optimization, interference suppression, and specially crafted antennas deliver superior QoS and coverage in high-density access or bursty traffic scenarios
- External removable and adjustable antennas enable flexible configuration of antenna gain and positioning
- Easy deployment with Fit AP, bridge, WDS, and Mesh networking, PoE or 12V DC power, and plug-and-play installation
- Unified user authentication and mobility management, monitoring, and maintenance at the AC or NMS
- AP7110SN-GN features 2.4 GHz access, up to 450 Mbit/s throughput, 802.11b/g/n compatibility, and PoE 802.3af/at compliance; AP7110DN-AGN features up to 900 Mbit/s throughput, PoE 802.3at, 802.11a/b/g/n compatibility, and dual-band connectivity with 2.4 GHz and 5 GHz radios
Specification
Specifications |
AP7110DN-AGN |
AP7110SN-GN |
Dimensions (H x W x D) |
200 mm x 200 mm x 45 mm |
200 mm x 200 mm x 45 mm |
Power Input |
12V DC ± 10% PoE: −48V DC (in compliance with IEEE 802.3at) |
12V DC ± 10% PoE: −48V DC (in compliance with IEEE 802.3af |
Maximum Power Consumption |
15.7W |
8.7W |
Operating Temperature |
−10℃ to +55℃ |
−10℃ to +55℃ |
Antenna Type/Antenna Gain |
Removable RP-SMA antenna/2.4 GHz: 2.5 dBi, 5 GHz: 4 dBi |
Removable RP-SMA antenna/2.5 dBi |
Maximum Number of Concurrent Users |
≤ 256 |
≤ 256 |
Maximum Transmit Power |
25 dBm (combined power) |
25 dBm (combined power) |
MIMO: Spatial Streams |
3 x 3:3 |
3 x 3:3 |
Radio Protocols |
802.11a/b/g/n |
802.11b/g/n |
Highest Rate |
900 Mbit/s |
450 Mbit/s |
Specifications
Item |
Description |
|
Technical specifications |
Dimensions (H×W×D) |
45 mm×200 mm×200 mm |
Weight |
1.0 kg |
|
System memory |
256 MB DDR3 |
|
Power specifications |
Power input |
DC 12V±10% |
Maximum power consumption |
AP7110DN-AGN: 15.7 W |
|
Environment parameters |
Operating temperature |
-10°C to +55°C |
Storage temperature |
-40°C to +70°C |
|
Humidity |
5% to 95% (non-condensing) |
|
Waterproof grade |
IP41 |
|
Altitude |
–60 m to 4000 m |
|
Radio Specifications
Item |
Description |
|
Antenna type |
Removable RP-SMA antenna |
|
Antenna gain |
AP7110DN-AGN |
|
Maximum |
≤256 |
|
Maximum |
20dBm |
|
Maximum number of non-overlapping channels for AP7110DN-AGN |
2.4 GHz |
5 GHz |
NOTE:The number of non-overlapping channels allowed varies in different countries. For details, see the Country codes & Channels compliance status | ||
Maximum number of non-overlapping channels for AP7110SN-GN |
802.11b/g |
|
NOTE:The number of non-overlapping channels allowed varies in different countries. For details, see the Country codes & Channels compliance status | ||
