TYT smarthome gateway / home applainces remote comtroller in zigbee coordinator system
Wireless Zigbee/Zigbee home automation/Zig

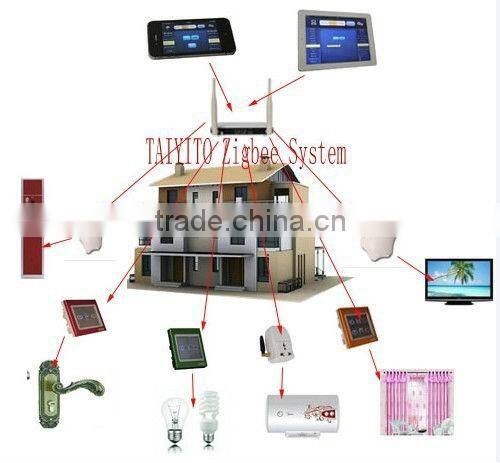

1. Smart home system
2. Feature & Specification
l ZigBee HA1.2 compliant

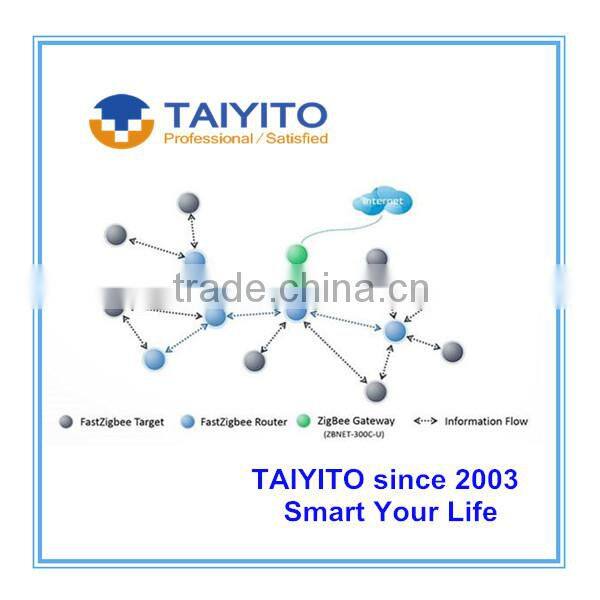

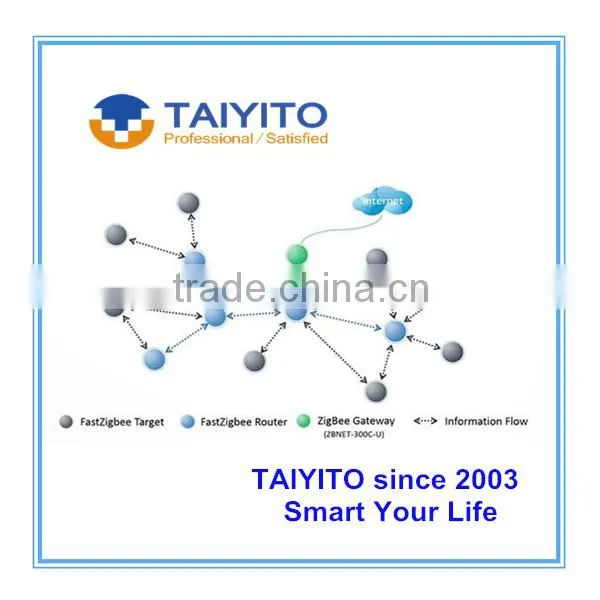

l ZigBee coordinator of the home area network
l Powerful CPU for complicated calculation
l Mass storage capacity for historic data
l WiFi-to-Router internet accessibility
l WiFi Direct-Link with mobile devices
l Cloud server interoperability
l Firmware upgradable via micro USB port
l Affiliate mobile apps
l Open API available for third party integration
Wireless Specification
Item |
Content |
Cellular Module |
Industrial cellular module |
|
Standard and Band |
EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional) Compliant to GSM phase 2/2+ GPRS class 10, class 12(optional) |
Bandwidth |
85.6Kbps |
TX power |
GSM850/900: <33dBm GSM1800/1900: <30dBm |
RX sensitivity |
<-107dBm |
WIFI Specification
Item |
Content |
Standard |
IEEE802.11b/g/n |
Bandwidth |
IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
Security |
WEP, WPA, WPA2, etc. WPS (optional) |
TX power |
21.5dBm(11g),26dBm(11b) |
RX sensitivity |
<-72dBm@54Mpbs |
ZigBee Specification
Item |
Content |
ZigBee Module |
Industrial ZigBee Platform |
Standard and Band |
IEEE 802.15.4 ISM 2.4 ~2.5GHz |
Indoor/Urban Range |
30m 90m(With PA) |
Outdoor/RF Line-of-Sight Range |
500m 2000m(With PA) |
Transmit Power |
2.82 mw (+4.5dBm) 100 mw (+20dBm) (With PA) |
Bandwidth |
250Kbps |
Receiver Sensitivity |
-97dBm -103dBm(With PA) |
Network Topologies |
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh |
Number of channels |
16 Direct Sequence Channels |
Channel |
11 to 26 |
Max packge size |
300Bytes |
3. Function List
- A. Intelligent lighting, electrical appliances, curtains...System
- B. Intelligent security system
- C. Intelligent monitoring system
- D. Intelligent AV system
- E. Intelligent visual intercom system
-
F. Intelligent healthy energy-saving safety environmental protection system
Packaging & Delivery
If you have any more questions, please don't hesitate to contact us.
Contact us

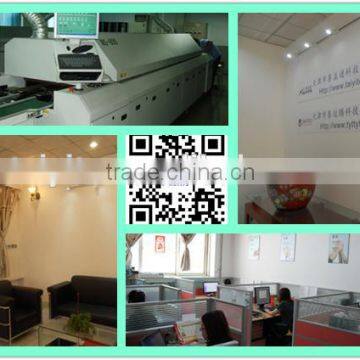

Our office in Tianjin covers more than 300 square meters, allowing us to have a large and comprehensive demo room. All of our new zigbee products have been being displayed here.
TIANJIN TAIYITO TECHNOLOGY CO.,LTD
Office Address:
No.248, Baidi Road, NanKai District, TianJin, China
Zip Code: 300192
Website: Http://
Tel: 0086-22-87899781 / 0086-22- 27611356
In the end, warmly welcome new and old customers to our office and give guidance!
Hope you can enjoy a good time in our showroom here for the smart home system !
