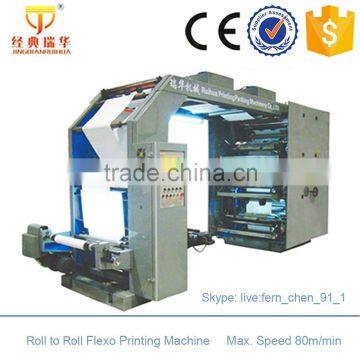

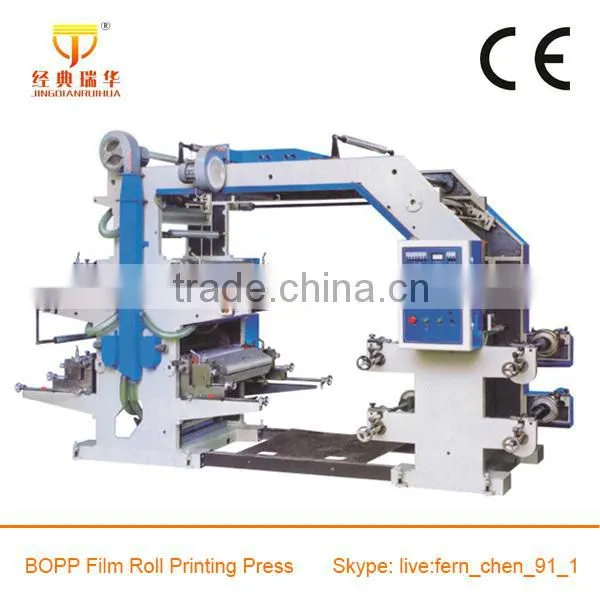

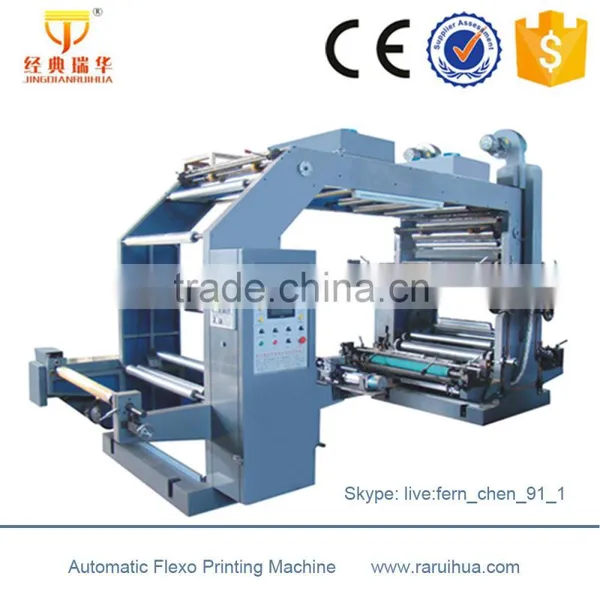

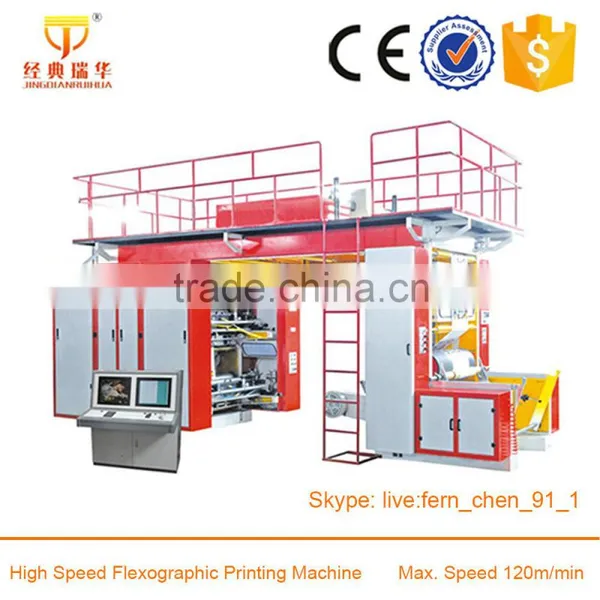

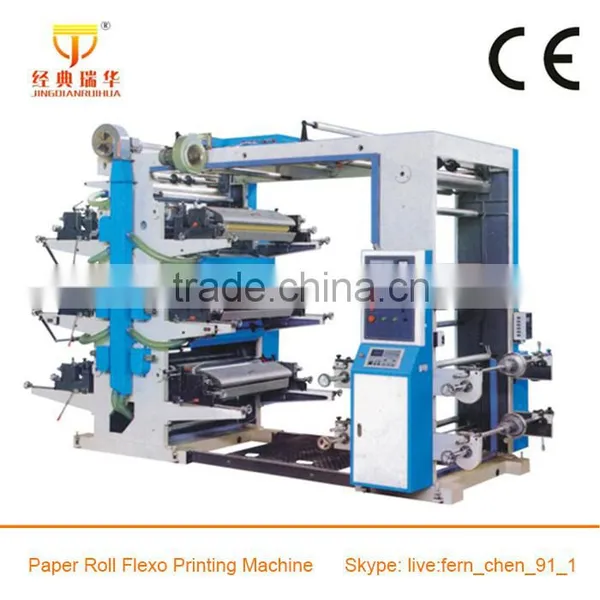

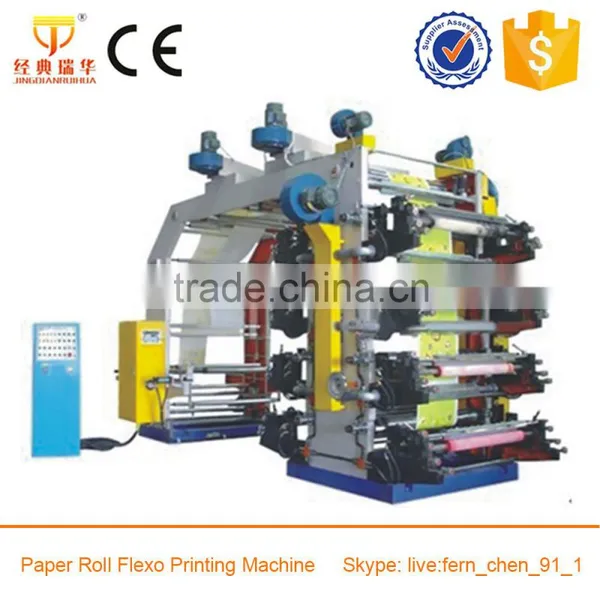

Enclosed Blade High Speed Computerized Flexo Printing Machine Equipment
-Use:
High Speed Computerized Flexo Printing Machine Equipment is suitable for various materials roll to roll printing, like regular paper, kraft paper, thermal paper, bond paper, plastic films(BOPP, OPP,PET, PE), Non woven fabric, woven bags, paper cups, self-adhesive labels, etc.
-Main Technical Parameter:
1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased
2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering
3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)
5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices
6. Printing rolls should keep moving while machine halted
7. Material holder use air shaft
8. Auto tension control
9. Unwind with auto deviation correction system (EPC)
10. EDGE position control
11. Reversible printing 6 color press for 6+0,1+5,2+4,3+3
printing width Item | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | 2000mm |
Printing color | 6(PC:6+0,4+2,5+1,3+3) | |||||||
Printing length | 7.5”-40”/7.5”-50 | |||||||
Printing plate lifting system | Hydraulic press control | |||||||
Menchanical speed | 140m/min | |||||||
Printing speed | 80m-120/min | |||||||
Anilox cylinder | Ceramic anilox roller | |||||||
Register precision | Longitude:±0.20mm,Transverse±0.20mm | |||||||
Rewinder/UnwinderDIA | φ600mm | |||||||
Master motor | 3.7kw | 3.7kw | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 11kw | 11kw |
Unwinder motor | 1.1kw | 1.5kw | 2.2kw | 3.0kw | ||||
Rewinder motor | 1.5kw | 2.2kw | 3.0kw | 3.7kw | ||||
Electrical heater | 14kw | 16kw | 20kw | 22kw | 24kw | 26kw | 28kw | 30kkw |
Blower of heater | 1.5kw*2 | 1.1kw*3 | 1.1kw*3 | 1.1kw*3 | 1.5kw*3 | 1.5kw*3 | 2.2kw*3 | 2.2kw*3 |
Blower of nature wind | 0.75kw | 0.75kw | 1.1kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw | 1.5kw |
Inking motor | 370w | 750w | 750w | 750w | 750w | 750w | 750w | 750w |
Master frequency converter | (Panasonic)/ (Toshiba)transducer Japan | |||||||
Bearing | Japan(NSK) | |||||||
Unilateral bearing | ASNU(Germany) | |||||||
Weight | 4500kg | 4750kg | 5000kg | 5250kg | 5500kg | 5750kg | 6000kg | 6300kg |
Master Power | 25k | 27kw | 34kw | 37kw | 43kw | 47kw | 55kw | 58kw |
Dimension(L*W*H) | 4.8m* 1.8m* 2.8m | 4.8m* 2.0m* 2.8m | 4.8m* 2.2m* 2.8m | 4.8m* 2.4m* 2.8m | 4.8m* 2.6m* 2.8m | 4.8m* 2.8m* 2.8m | 4.8m* 3.0m* 2.8m | 4.8m* 3.2m* 2.8m |
More information needed, pls feel free to contact.
