six colors flexo printing machine
Detailed Product Description:
1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased
2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering
3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)
5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices
6. Printing rolls should keep moving while machine halted
7. Material holder use air shaft
8. Auto tension control
9. Unwind with auto deviation correction system (EPC)
10. EDGE position control
11. Reversible printing 6 colors press for 6+0, 1+5, 2+4and 3+3
Main Technical Parameter:
Printing Width | 1000mm |
Printing Length | 1000mm |
Printing Colors | 6+0, 1+5, 2+4and 3+3 |
Printing Plate Lifting System | Hydraulic press control |
Max. Mechanical Speed | 80m/min |
Max. Printing Speed | 80m/min |
Anilox Cylinder | Ceramic Cylinder |
Register Precision | Longitude:±0.25mm,Transverse±0.25mm |
Un/rewinder Diameter | φ600mm |
Master Motor | 5.5kw |
Unwinder Motor | 1.5kw |
Rewinder Motor | 2.2kw |
Electrical Heater Power | 20kw |
Blower Power | 1.1kw*3 |
Cold Air Blower Power | 1.1kw |
Ink Motor | 0.75kw |
Total Power | 34kw |
Master Frequency Converter | Delta |
Bearing | Domestic |
Weight | 5000kg |
Dimension | 4.8m×2.2m×2.8m |

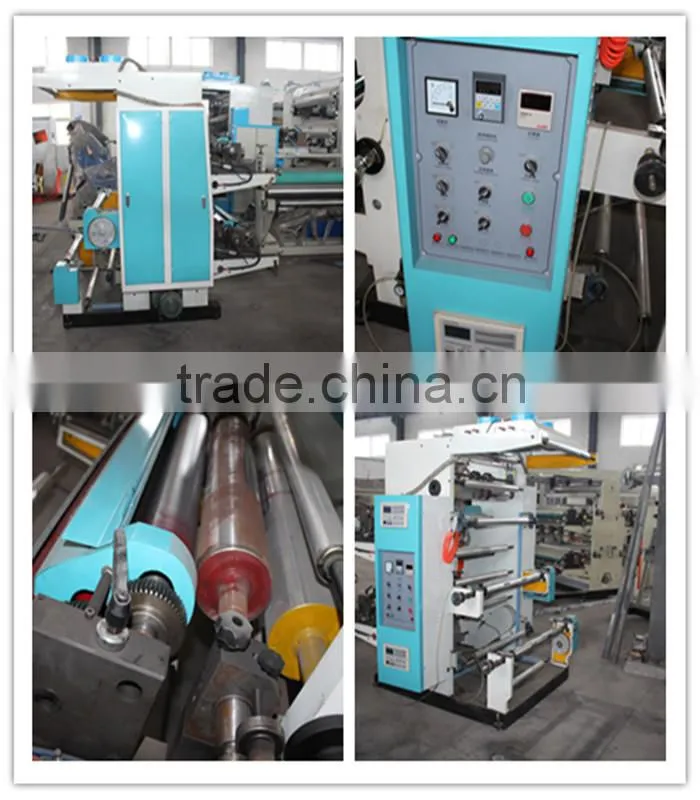

PRODUCTS WORKSHOP
1. Safety first, quality first .
2. Strict and advanced workshop management system .
3. The human production, people-oriented .
4. High quality products to provide high quality environment
PACKING & LOADING
1.We will test machine, before shipment,then make QUALITY CERTIFICATE From Inspection Department of Government,Then send picture and video to customers!
2.Packing :Stretch Film Packing with Wooden Packing ,Or Vacuum Packing
------------------------------------------------------------------------------------------------------------------
FAQ(Frequently asked question)
1.Q:Are you a factory or trading company ?
A:We are a factory
2. Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China. It's about 40 minutes by plane from shanghai (5 hours by train ) All our clients from home and abroad are warmly welcome to visit us
3. Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years , we will send our professional engineer to install and test machine .So our after-sales service is always reliable
4. Q:How can I get sample bags ?
A: We are honored to offer sample bags
5. Q:If your machines can print ..........
A : Our machines is multifunction , can do roll to roll printing , such as paper, plastic , woven , nonwoven .Surely , you can offer your products, Let us confirm it . we will suggest you the best project.
6 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory , we put more time to the quality control
---------------------------------------------------------------------------------------------------------------
About us
Welcome to contact us for more details , pls contact Jerry 0086-13626558246
wechat :wangbei9089 skype:wangbei3512 whatsapp:008613626558246
