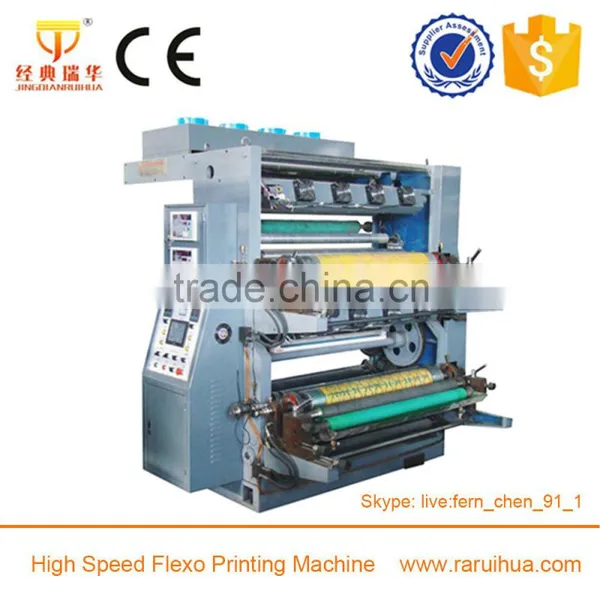

Rotary Small Label Printing Machine

Main Technical Parameter

Max. Roll Width

800mm

Max. Printing Width

760mm

Printing Length

191-1000mm

Printing Colors

2 colors

Printing Plate Lifting System

Hydraulic press control

Max. Mechanical Speed

80m/min

Max. Printing Speed

70m/min

Anilox Roller

Ceramic Roller

Dimension

2200m×1800×2000mm

Specifications

  Paper Flexo Printing Machine is suitable for various materials roll to roll printing, like paper, film(BOPP,PET,PE,OPP,CPP), Non woven fabric, woven bags, self-adhesive labels,paper cups, etc.

Main

1. Paper Flexo Printing Machine is with PLC control and HMI, all working parameters can be preset and displayed on the control panel.Only need to set up data on the control panel, machine will work automatically.

2. Paper Flexo Printing Machine is with automatic hydraulic lift up loading system for heavy material roll loading.

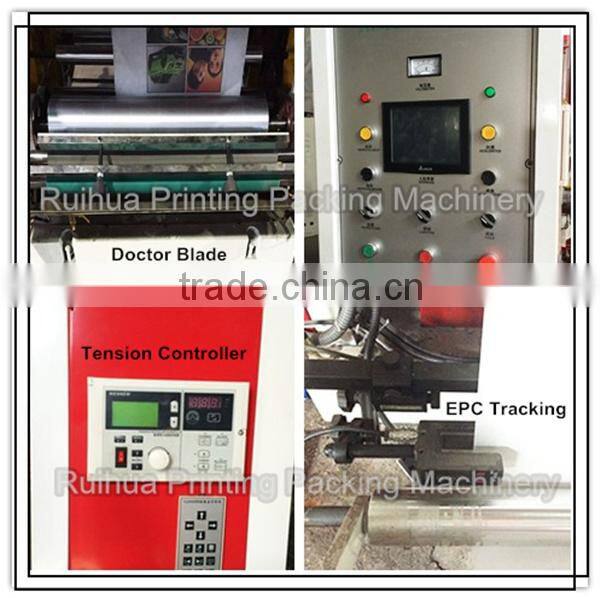

3. Paper Flexo Printing Machine is with 2 sets automatic tension controller to provide constant tension control. One for  for unwinding and one for rewinding part.

4. Paper Flexo Printing Machine is with 1 set 10kg/2 magnetic brake to help tension control in unwinding part.

5. Paper Flexo Printing Machine is with photocell tracking system to keep accurate roll edge.

6. It is with 3’’ air expanding shaft for roll material loading. Also can provide as your request.

7. Machine is with automatic meter counter, which can count the working length. When reached the preset length, machine can stop automatically.

8. Low speed and full load startup; stable running by tension control when speed up or down, low noise.

Q: Are you a factory or trading company?

A: We are manufacturer, have our own factory with over 15 years experiences. From us, you not only get machines, also the best solutions.

Q: What kind of quality certificate do you have?

A: We have CE certificate, SGS, ISO, etc.

Q: How does your factory do regarding quality control?

A: Quality is our focus. From the beginning till the end of machine manufacture, we inspect every component before using. Machine will have tests after finished.

Q: How about the delivery time?

A: Usually, our machines can be delivered within 30 working days.

Q: What’s the payment terms?

A: Usually, we do T/T with 30% deposit, and 70% balance paid before machine delivery. And L/C, western union, etc. are also acceptable.

Q:Where is your factory located? How can I visit?

A: We are in Ruian City, Zhejiang Province, China. About one hour from Shanghai by air. All our clients, from home and abroad, are warmly welcome to visit us!

Our Service

1. Machine customize is available

2. 24 hours online service

3. After sales service: engineers are available to service overseas. If you required, we will send our technician, and the forward-return tickets, food, hotel, and salary of USD70 per day would be paid by customer side.

4. In the warranty time, we will provide free parts replacements and maintenance service.

5. Our machine is with whole life technical support. And out of warranty time, any question, we will provide solutions ASAP.
