1.Power Type: Diesel
2.Rated Capacity:30000 kg
3.Load Center:1250 mm
4.Engine:Weichai
5.Transmissions: Yeli

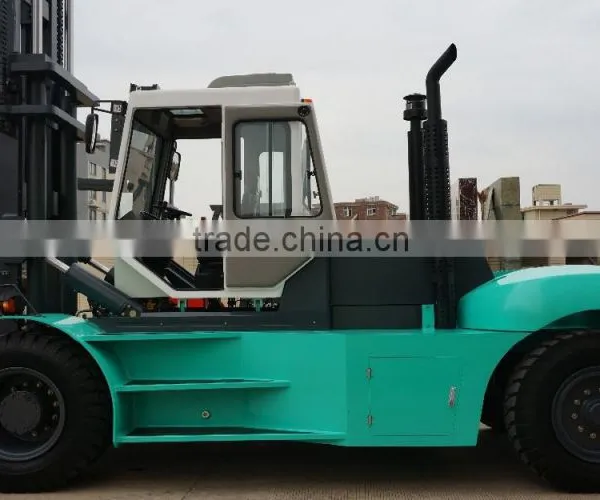

WONTONNE 30 ton large counterbalance forklift truck for logistics
Introduction :
WONTONNE have very professional experience in studying and producing heavy duty forklift (7-30 tons) for stone, mine and terminal industries.
More improvement base on Product configuration:
1,Engine :6108 yuchai engine, more powerful.
2,Door frame :The door frame channel steel thickening and more reliable performance.
3,Drive axle: Drive axle is enhanced model,more strength. guarantee the reliability of the use,long service life.
4,Tyre:Front tyre choose 10.00-20 products, stronger bearing capacity, each tire can bear 400 kg more.
5 ,Steering bridge: Steering bridge use H2000 type product, high strength work more stable performance.
6.The radiator: The radiator of the material is copper ,Other brand of materials are generally use aluminum, copper is better than aluminum heat dissipation effect .
14. 30 TON Forklift Specification :
| Item | Specification | Unit | |||
| General | 1 | Model | CPCD300 | ||
| 3 | Power Type/model | Diesel | |||
| 4 | Rated Capacity | Kg | 30000 | ||
| 5 | Load Center | mm | 1250 | ||
| Dimensions | 6 | Lift Height | mm | 3500 | |
| 7 | Fork Size(LxWxT) | mm | 2200×310×100 | ||
| 8 | Fork Spread(outside)(Min./Max) | mm | 1030/2640 | ||
| 9 | Mast Tilt Angle(F/R) | deg | 6·/10· | ||
| 10 | Fork Overhang | mm | 950 | ||
| 11 | Overall Dimensions | Length without forks | mm | 6900 | |
| 12 | Overall Width | mm | 3200 | ||
| 13 | Mast Lowered Height | mm | 3810 | ||
| 14 | Overhead Guard Height | mm | 3700 | ||
| 15 | Outer turning Radius | mm | 6480 | ||
| Performance | 16 | Speed(Unload/Load) | Travel | km/h | 30/26 |
| 17 | Lifting | mm/s | 300 | ||
| 18 | Max.gradeability(Load) | % | 20 | ||
| 19 | Max.drawbar pull(Load) | KN | 200 | ||
| 20 | service Weight | kg | 35000 | ||
| Wheels&Tires | 21 | Tire | Front | 4×14.00-24-28PR | |
| 22 | Rear | 2×14.00-24-28PR | |||
| 23 | Tread | Front | mm | 2300 | |
| 24 | Rear | mm | 2150 | ||
| 25 | Wheelbase | mm | 4800 | ||
| 26 | Ground Clearance(Under mast) | mm | 320 | ||
| Power & Transmission | 27 | Battery | Voltage/Capacity(5HR) | VA/h | 2x150/12 |
| 28 | Engine | Model | WD615G | ||
| 29 | Manufacture | WEICHAI | |||
| 30 | Rated Output | Kw | 175 | ||
| 31 | Rated Torque | N.m | 2200 | ||
| 32 | No.Of Cyinder | 6 | |||
| 33 | Bore*stroke | mm | |||
| 34 | Displacement | L | |||
| 35 | Transmissions | Manufacture | ZL60 | ||
| 36 | Type | Fluid TorqueConverter | |||
| 37 | StageFWD/RVS | 2/1 | |||
| 38 | Operating Pressute | Mpa | 21 | ||
