Mainly application:
Multipurpose Shuttle High Frequency Welder
1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for high frequency welding is a perfect machine for production of blister packages, But it is multipurpose machine, for it can be used for industry like PU leather cover for pad, automotive parts and car interior elements, safety vests, reflective signs, inflatable toys, cosmetics,folding packing box,.etc.
The HF blister packaging welder, by Shenzhen Hipower Ltd, is made for various industrial HF welding and sealing applications. It is designed for applications requiring precision large flat surface for product positioning and complex shape welds.
The high frequency blister packaging welder series have HF power outputs from 5KW to 25KW.
Machine is with special quick change electrode holder. Custom designed tooling and welding upper platen are available on request.
Machine General Features:

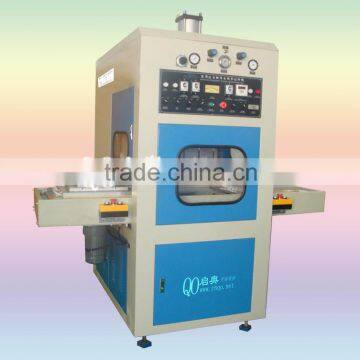

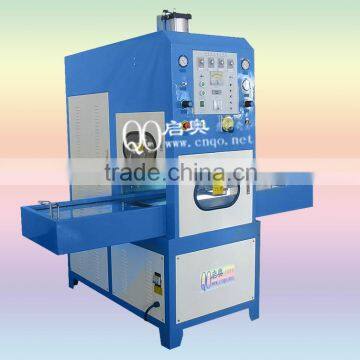

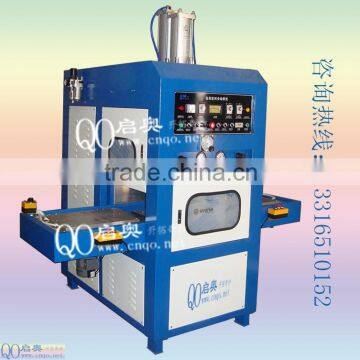

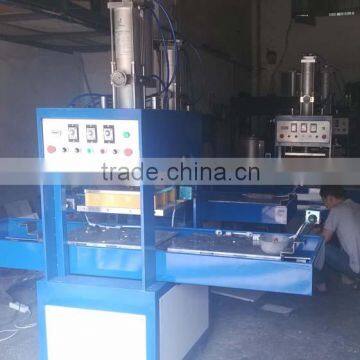

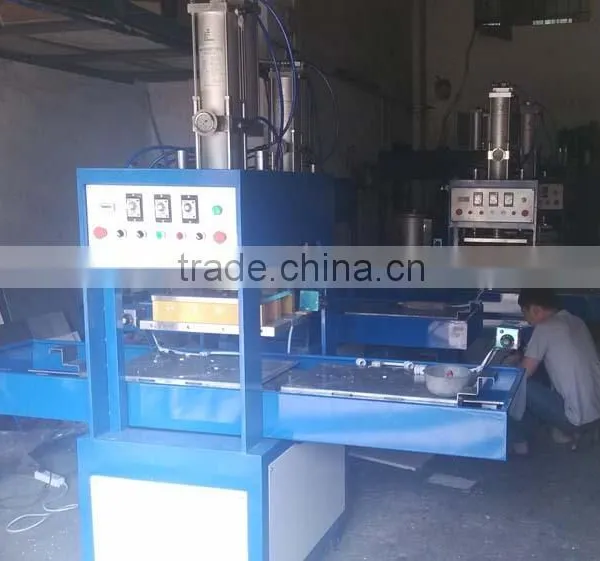

Multipurpose Shuttle High Frequency Welder
1. Anti-flash system, to protect the tooling / mould
2. Welded C-frame steel structure with integrated HF generator
3. Custom requested size of work tables and welding platen acceptable
4. Adjustable parameter set in two working stations separately
5. Two side manually or motor driven sliding shuttle work table
6. Heated Upper platen with thermostat, for helping HF sealing process
7. Close off high frequency welding function, the machine can be use as Standard Heat Welder
8. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
9. European-model square high frequency vibration box, more reliable and stable in output
10. High frequency welding press pneumatically operated

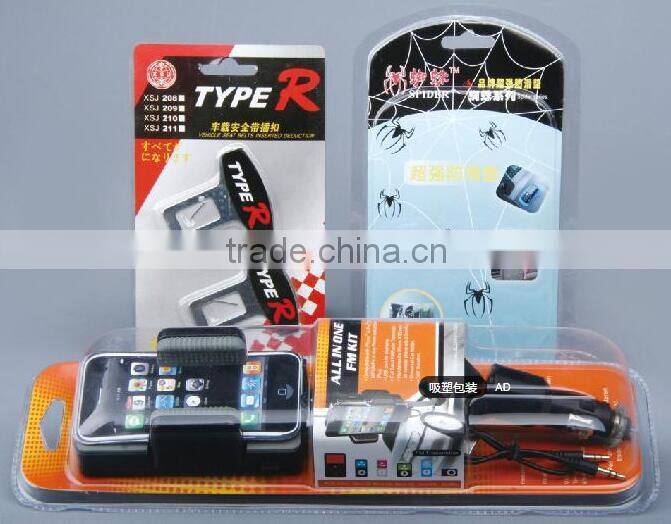

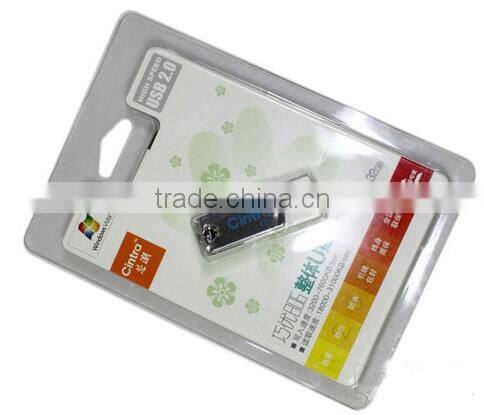

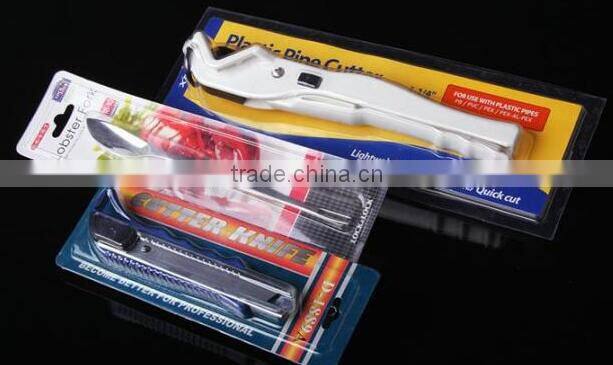

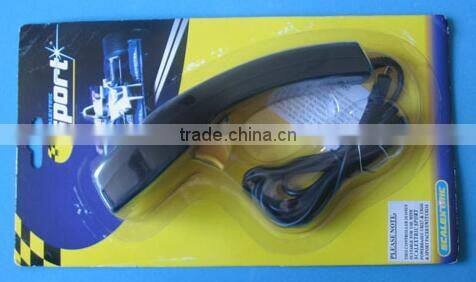

For product

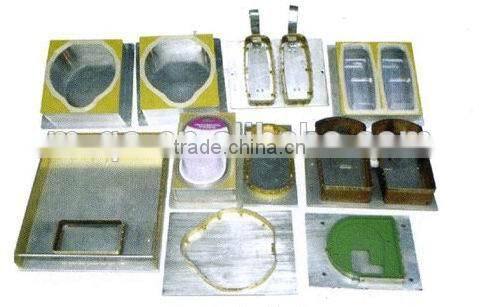

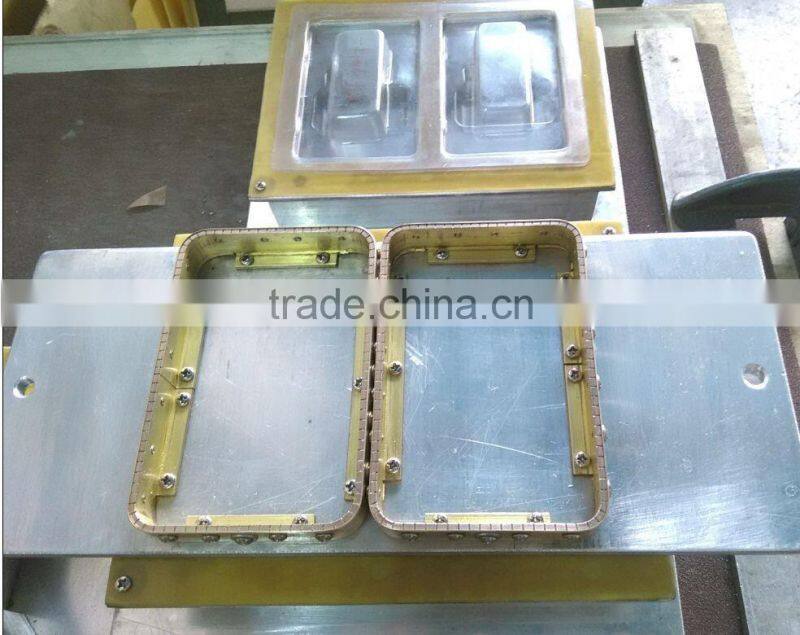

mould images
Technical Specification:
| Specification | ||||
| Model | QO-8KWDZ | QO-10KWDZ | QO-12KWDZ | QO-15KWDZ |
| Output Power | 8000W | 10000W | 12000W | 15000W |
| Anti-Spark System | U.S.A. PL-5557 High sensitive anti-spark system | |||
| Voltage | 3P AC 380V/220V/440V 50Hz-60HZ or customize | |||
| Frequency | 27.12MHz +/- 0,6 % | |||
| Input power | 15KVA | 18KVA | 20KVA | 25KVA |
| Rectifier | SILICON DIODE | |||
| Oscillation tube | 7T69RB | E3069RB | E3130RB | 8T85RB |
| Max pressure | 10T | 15T | 20T | 25T |
| Operation mode | Pneumatic Operated (Hydraulic pressure upon request) | |||
| Max gap of electrodes | 200mm | |||
| Size of active horn | 100mm | |||
| Upper Electrode (L*W) | 300*500mm | 350*500mm | 400*500mm | 400*600mm |
| Size of Work Table (L*W) | 300*500mm | 350*500mm | 400*500mm | 400*600mm |
| Welding time | 0.~10s adjustable | |||
Packaging Details: Standar export packaging (plywood case, no fumigation need)
Delivery Detail: 20 working days after 30% deposite
1) Warranty: 12 months
2)Technical support by E-mail or phone
3)Engineers available to service machiner
4) Agent help to offer after-service
