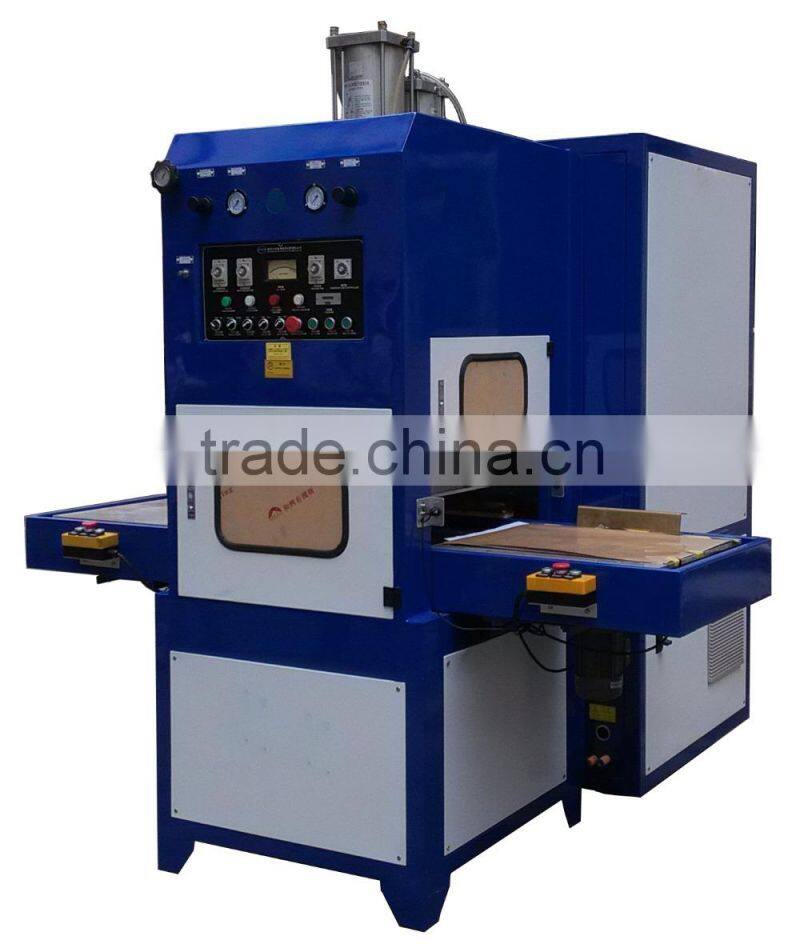

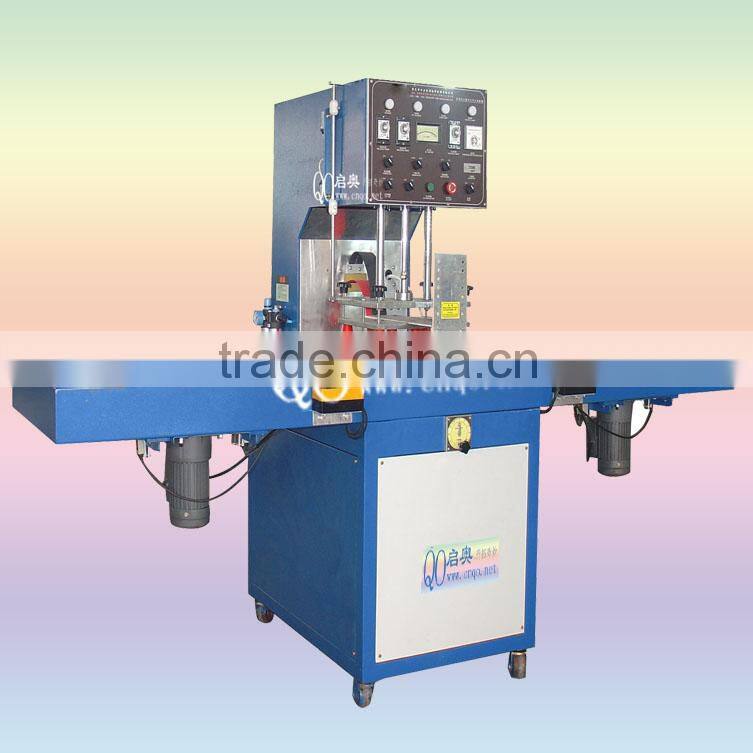

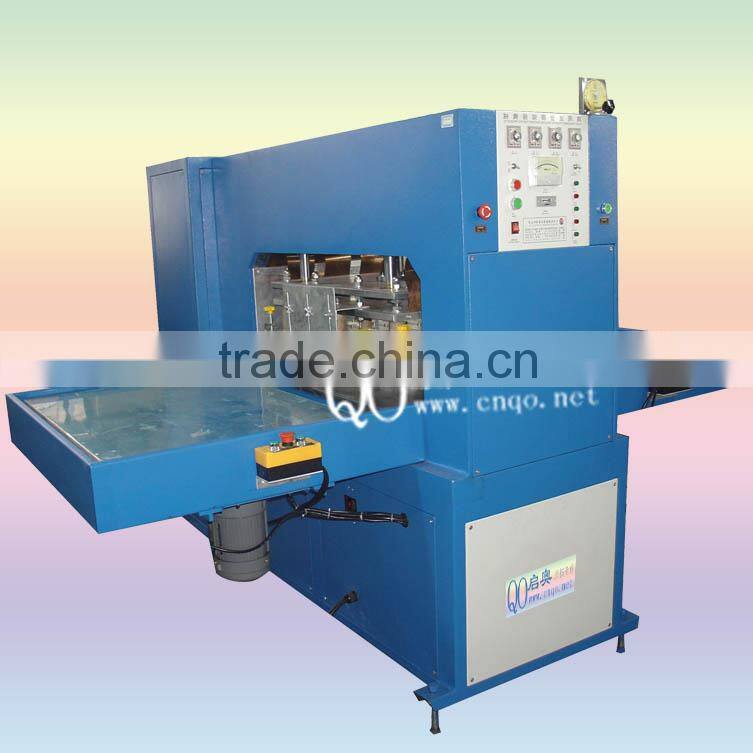

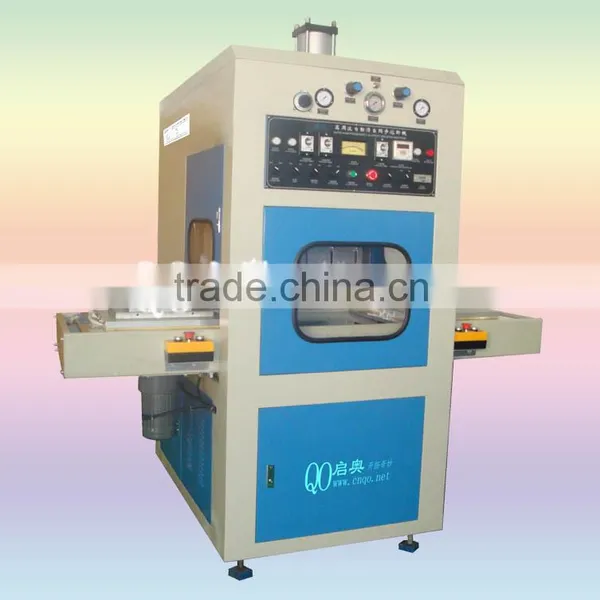

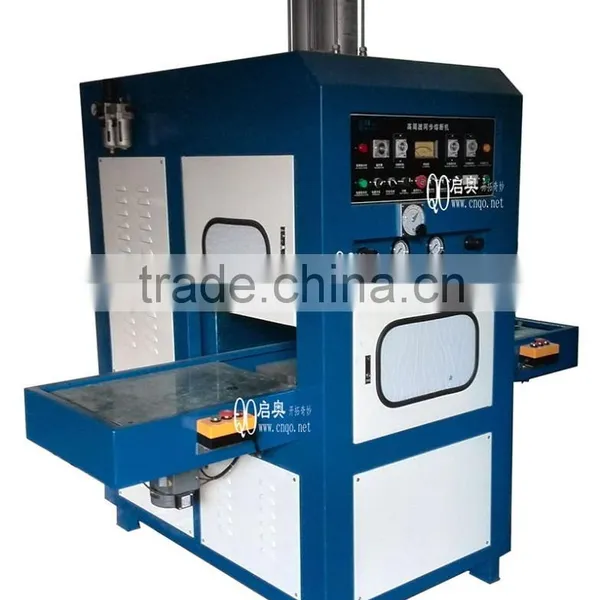

Automatic sliding table high frequency welding machine

Automatic push the disc high-frequency machine, also known as high-frequency automatic sliding desktop machine or high frequency welding machine, a high-frequency devices. Generally on the basis of a manual push reel high frequency machine on the widening thickening push tray, and then install the motor on the rack, the use of forward and reverse rotation of the motor, coupled with the pendulum, swinging around, driven by the push plate and out of the nose a.

    Automatic push reel high frequency machine relative manual machine can increase productivity, reduce labor strength loss, relative manual push reel high frequency machine a bit more precise, because the pendulum length limits the push plate position. Relative manual machine, Kai Austrian company are equipped with automatic push the disc N557 spark protection, can effectively guard against ignition burned mold, and a high-frequency frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum, to avoid radio interference . And will avoid improper operation by the frequency drift caused by the electrode and material damage to a minimum while warning lights are illuminated warning.

    Automatic push reel high frequency machine applications:

    Automatic push reel high frequency machine according to power and use is divided into many styles to suit a variety of products, such as small automatic push reel high frequency to include QO-5KWZT and QO-8KWZT other standard machine for plastic packaging, double surface blister (blister) welding, plus paper card plastic welding and the like; and large automatic push reel high frequency machine is suitable for a number of large products, such as water beds weld production, air mattress, inflatable sofa, yachts! QO-15KWZT to QO-150KWZT even to 200KW machine.

    Automatic push reel high frequency machine specifications:

Model: QO-5KWZT QO-8KWZT QO-10KWZT QO-12KWZT QO-15KWZT

High Frequency Power: 5000W 8000W 10000W 12000W 15000W

Power supply voltage: 380V 50 / 60HZ

Frequency: 27.12MHZ 27.12MHZ

Input power: 8KVA 15KVA 18KVA 20KVA 25KVA

Rectifier: Silicon diode

Oscillating tube: 7T85RB 7T69RB E3069RB E3130RB 8T85RB

Maximum pressure: 300KG 500KG 800KG 1000KG 1200KG

Electrode spacing: 200mm

Activities Dimensions: 100mm

The electrode size: 300 * 400mm 300 * 500mm 350 * 500mm 400 * 600mm 500 * 700mm

The lower electrode size: 300 * 450mm 300 * 500mm 350 * 500mm 400 * 600mm 500 * 700mm

Welding time: 0 --- 10sdjustable

Welcome to buy Kai Austrian automatically push reel high frequency machine, a variety of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice!
