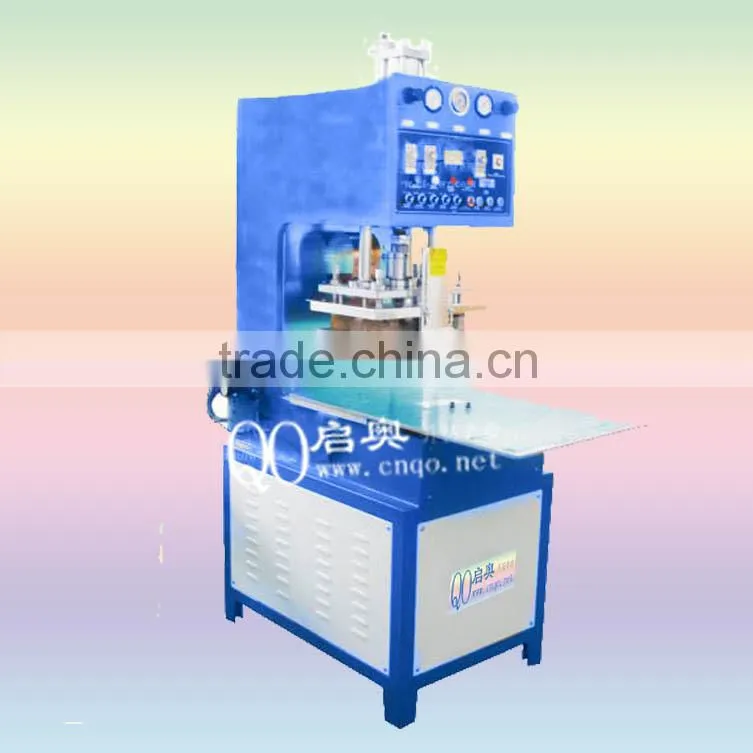

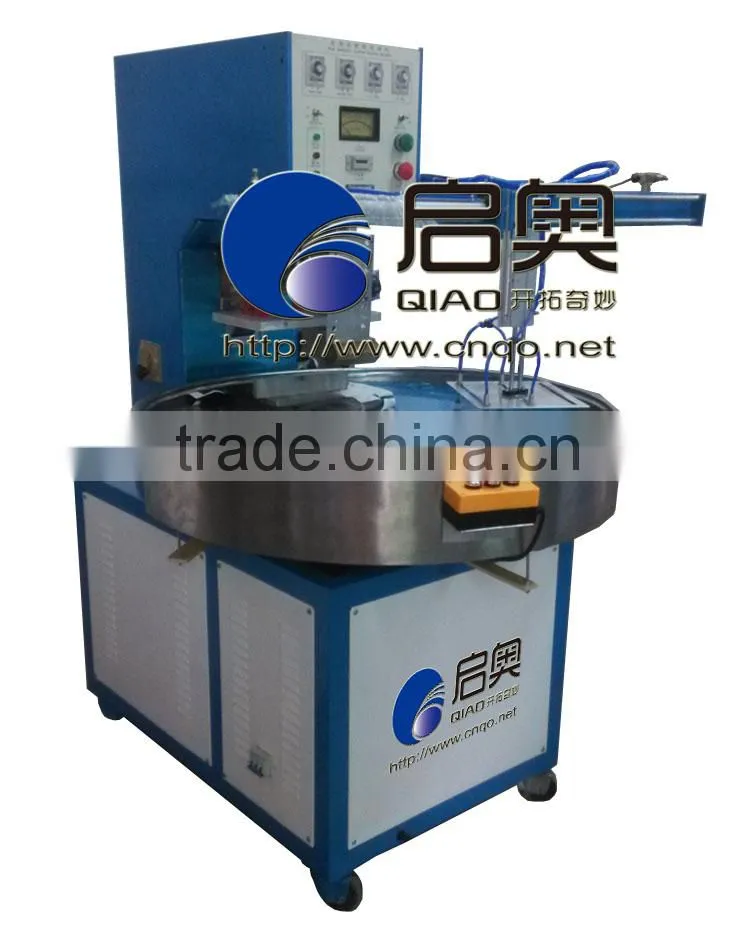

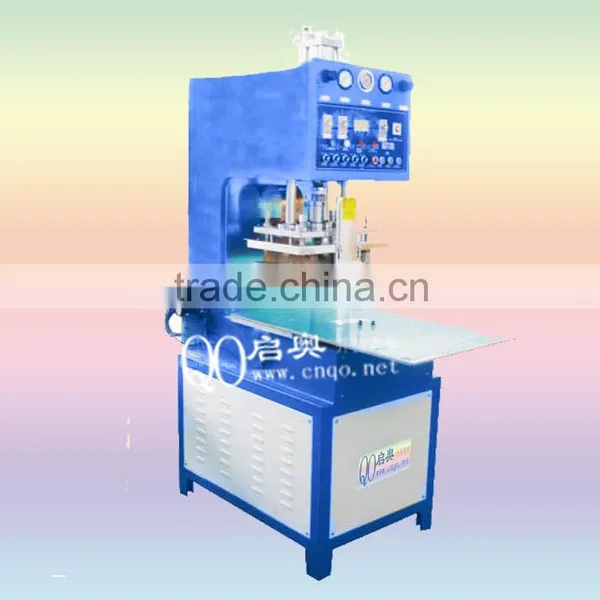

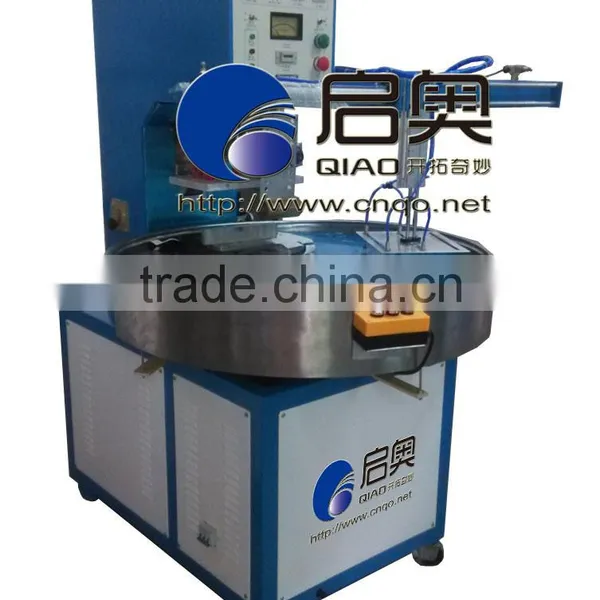

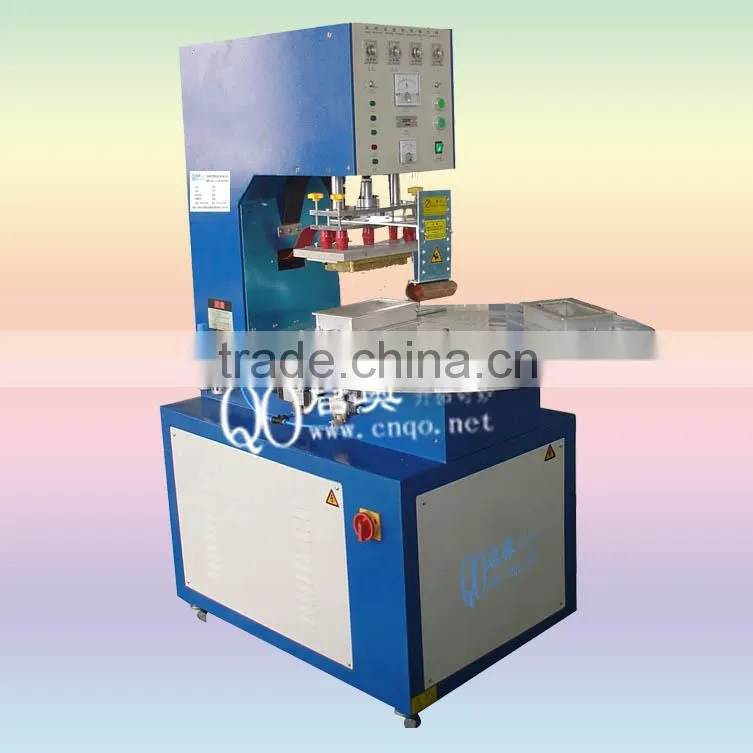

Help CenterHigh Frequency Single Head Turntable Welding Machine
Related Products
-
High Frequency Welding Machine for Ipad Cover , Note Books CoverUS$ 1 - 6,600MOQ: 1 Piece -
High Frequency Blister Package MachineUS$ 1 - 8,000MOQ: 1 Piece
-
High Frequency Toothbrush Packaging Automatic Disc MachineUS$ 1 - 18,000MOQ: 1 Piece
-
Hot Plate Plastic Welding MachineUS$ 1 - 3,800MOQ: 1 Piece
-
Speaker Mesh Welding MachineUS$ 5,000 - 8,000MOQ: 1 Piece
Application:
Adopt high frequency technoloy to crease a high-frequency electromagnetic field.
Internal molecules of welding products move in a very high speed inside the electromagnetic field.
Internal temperature of two pieces product become higher and then join together like a single one.
HF welding machine a good for welding plastic blister+blister, blister+papercard which coated with plastic.
It is also called as high frequency clamshell sealing machine or high frequency plastic packaging machine.
This machine is also used for many kinds of plastic welding and embossing.This kind of machine is widely used in packaging stationery,MP3,MP4,clamshell packaging for toothbrush,toys,gift,hardware,Udisc...

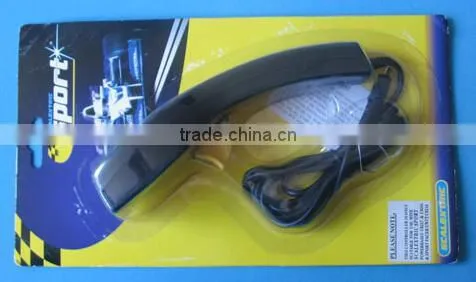

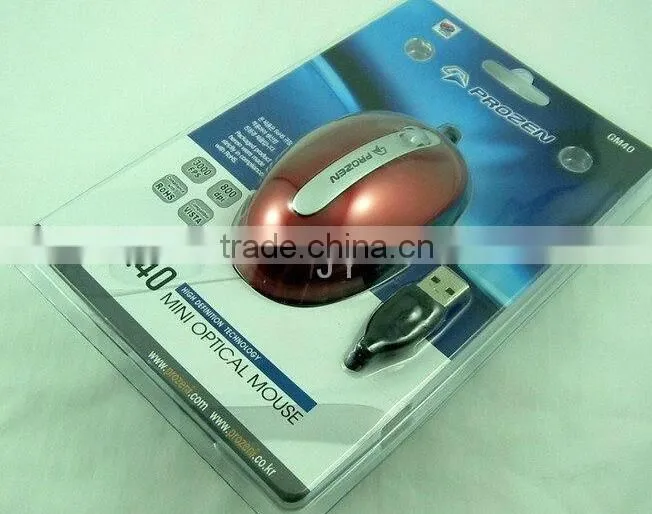

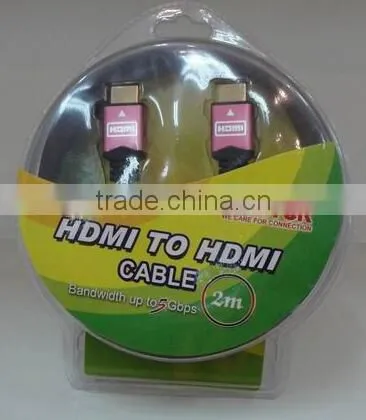

For product Sample

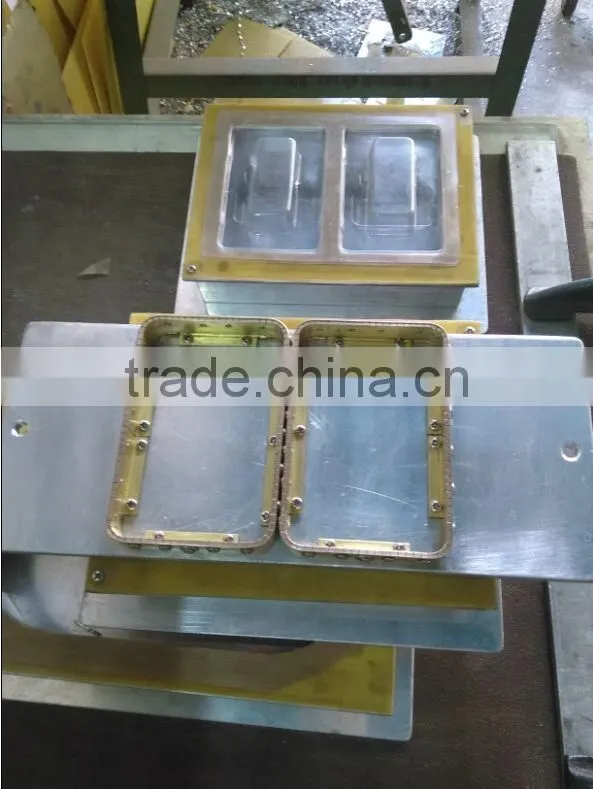

Mould image
Features:
There are many styles to choose as below:
1.manual high frequency shuttle way welding machine
2.automatic high frequency shuttle way welding machine
3.manual high frequency square plate two working positions welding machine
4.automatic high frequency square plate two working positions welding machine
5.manual high frequency turntable style multi-working positions welding machine
6.automatic high frequency turntable style multi-working positions welding machine
Technical Specification:
| Specification | ||||
| Model | QO-5KWSZ | QO-8KWSZ | QO-10KWSZ | QO-12KWSZ |
| Output Power | 5000W | 8000W | 10000W | 12000W |
| Anti-Spark System | U.S.A. PL-5557 High sensitive anti-spark system | |||
| Voltage | 3P AC 380V/220V/440V 50Hz-60HZ or customize | |||
| Frequency | 27.12MHz +/- 0,6 % | |||
| Input power | 8KVA | 15KVA | 18KVA | 20KVA |
| Rectifier | SILICON DIODE | |||
| Oscillation tube | 7T85RB | 7T69RB | E3069RB | E3130RB |
| Max pressure | 300KG | 500KG | 800KG | 1T |
| Operation mode | Pneumatic Operated (Hydraulic pressure upon request) | |||
| Max gap of electrodes | 200mm | |||
| Size of active horn | 100mm | |||
| Upper Electrode (L*W) | 250*300mm | 250*300mm | 250*350mm | 250*350mm |
| Size of Work Table (L*W) | 250*300mm | 250*300mm | 250*350mm | 250*350mm |
| Welding time | 0.~10s adjustable | |||
Packaging Details: Standar export packaging (plywood case, no fumigation need)
Delivery Detail: 20 working days after 30% deposite
1) One year guarantee for whole machine
2)Technical support by E-mail or phone
3)Engineers available to service machiner
4) Agent help to offer after-service
