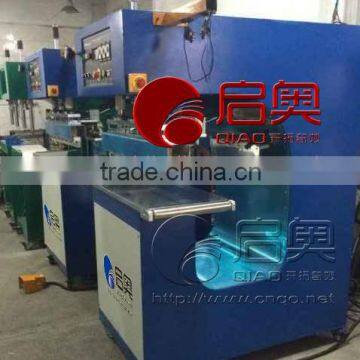

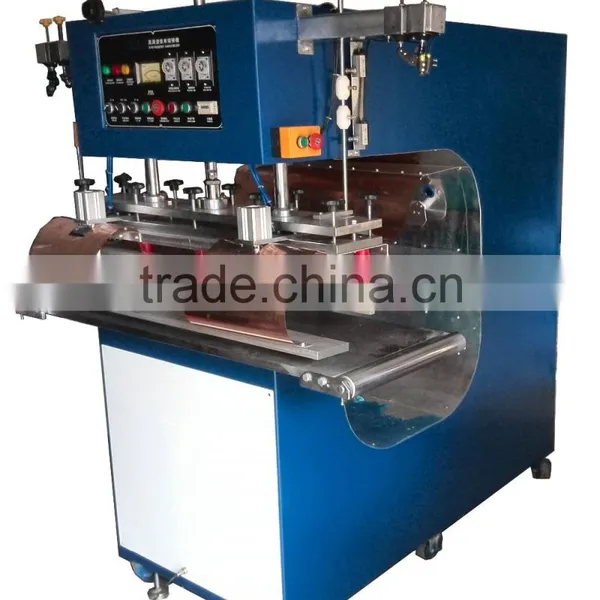

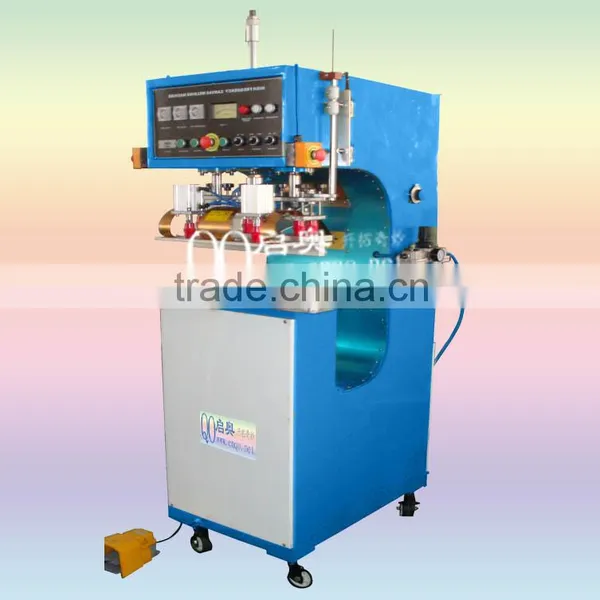

PVC High Frequency Welding Machine
US$ 9500.00 - 10000.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Packaging Type:
Cartons
Packaging Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC High Frequency Canvas Welding MachineUS$ 5,500 - 9,800MOQ: 1 Piece -
PVC/PU Conveyor Belt Cleat/sidewall High Frequency Welding MachineUS$ 2,500 - 25,000MOQ: 1 Piece
-
China Products Amazing Quality Pvc Box Folding MachineUS$ 2,800 - 30,000MOQ: 1 Piece
-
China Products Superior Quality Pvc Bag Welding MachineUS$ 2,800 - 30,000MOQ: 1 Piece
-
China Products Wholesale Price Plastic Welding MachineUS$ 2,800 - 30,000MOQ: 1 Piece
Condition
New
Packaging Type
Cartons
Packaging Material
Plastic
Automatic Grade
Semi-Automatic
Driven Type
Pneumatic
Voltage
220V/380V
Power
12KW
Place of Origin
Guangdong, China
Brand Name
QO
Model Number
QO-12KWFC
Weight
500kg
Dimension(L*W*H)
various on each machine
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Application:
It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy,swimming pool covers and other PVC/PU technical textiles, largePVCcanvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.
PVC high frequency welding machine
For producting products:
1. Large format technical textiles,
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters,tent etc.
Technical Specification:
| Model | QO-5KWFC | QO-8KWFC | QO-12KWFC | QO-15KWFC | QO-25KWFC |
| Output Power of Generator | 5000W | 8000W | 10000W | 15000W | 25000W |
| Anti-Spark System | NL-5557 High sensitive anti-spark system | ||||
| Voltage | 3P AC 380V/220V 50Hz-60HZ or customize | ||||
| Frequency | 27.12MHz +/- 0,6 % | 13.56MHz +/- 0,6 % | |||
| Input power | 8KVA | 15KVA | 20KVA | 25KVA | 35KVA |
| Rectifier | SILICON DIODE | ||||
| Oscillation tube | 7T85RB | 7T69RB | E3130 | 8T85RB | 8T25RA |
| Max pressure | 350KGS | 500kg | 800kg | 1000kg | 1500kg |
| Operation mode | Pneumatic Operated | ||||
| Max gap of electrodes | 100mm | ||||
| Size of active horn | 100mm | ||||
| Upper Electrode (W*H*L) | 50*50*600mm | 50*50*800mm | 50**50*800mm | 50*50*900mm | 50*50*1000mm |
| Size of Work Table (L*W) | 350*700mm | 450*1050mm | 450*1050mm | 400*1150mm | 450*1250mm |
| Welding time | 0.01~9.99s adjustable | ||||
| Net weight | 400KGS | 800kgs | 900kgs | 1200kgs | 1400kgs |
| Space behind electrode | 400mm | 750mm | |||
| Foreseen productivity: | According to welding times and operator skills |
||||
