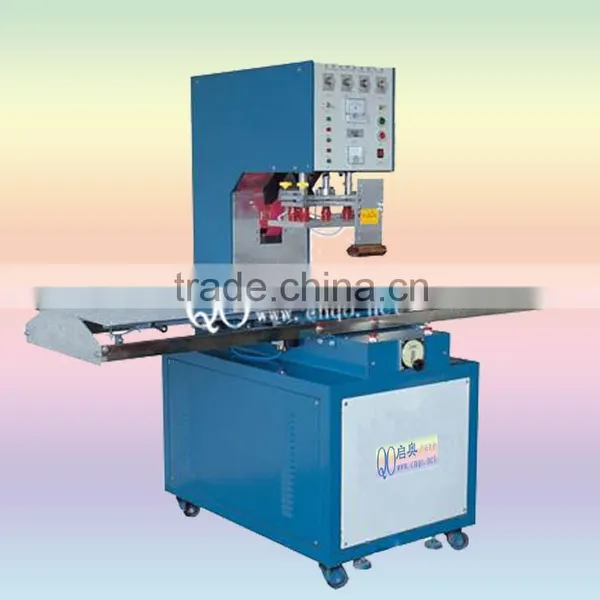

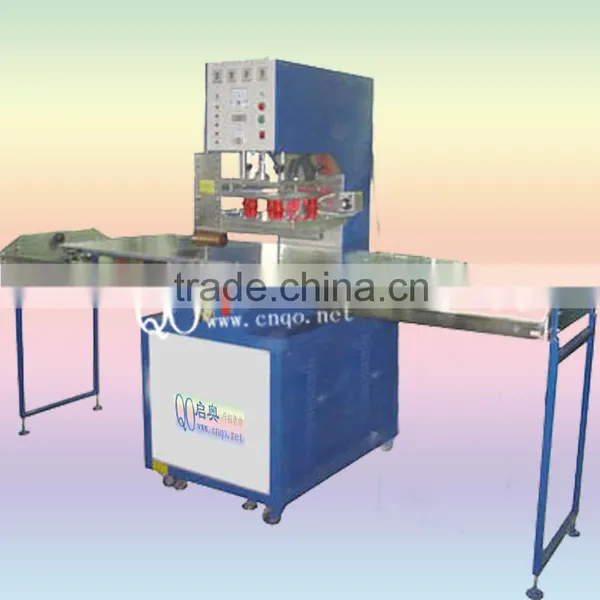

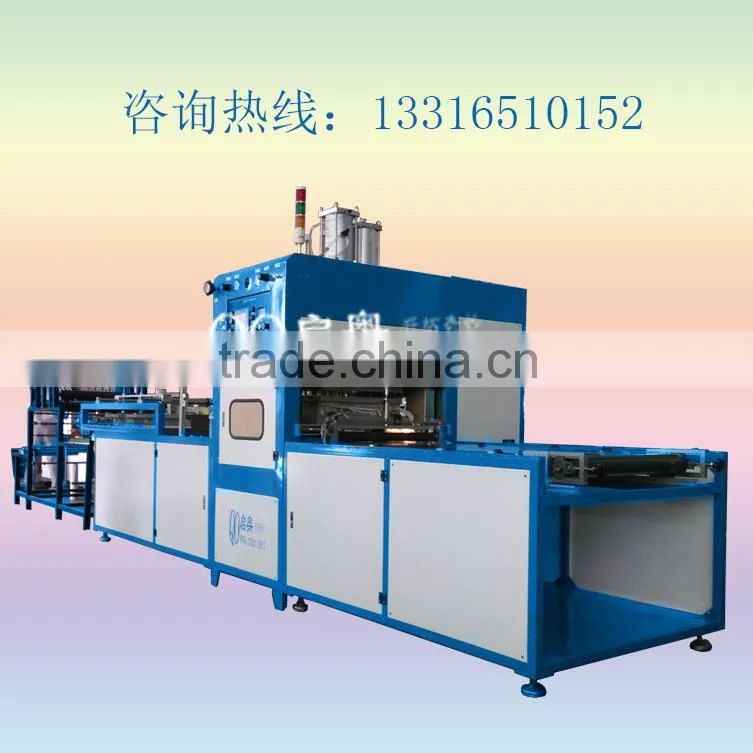

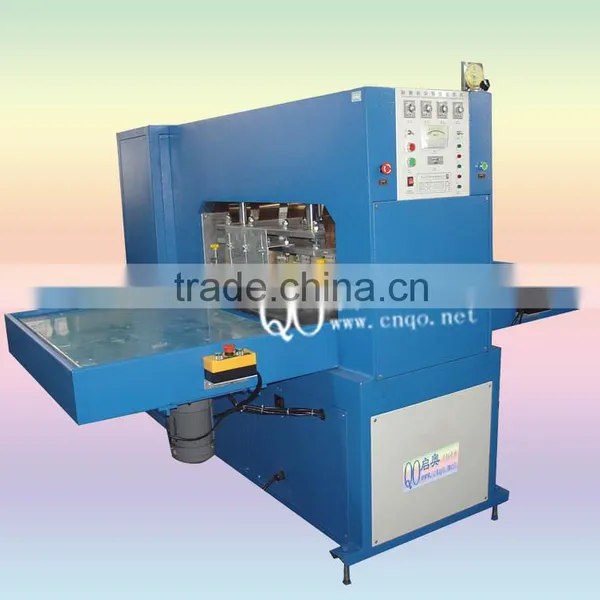

An automatic high frequency folding box machine, high frequency welding machines Category:
High frequency welding machine mainly refers only have high-frequency welding, embossing or stamping or embossing, etc. without cutting function with high frequency machine, high cycle fusing it with the biggest difference is the pressure machine size and output mode, high frequency welding machine is used cylinder drive pressure, it is generally not much pressure, depending on the machine to 2T only about 300KG pressure, and only a step to contribute, a pressure in the end. The high frequency fusing machine is used empty oil pressurized cylinder pressure, when the welding cutting supercharger can reach 5-50T vary depending on the power and the electrode size, and high frequency fusing machine is used Sec contribute, welding and cutting has plus points pressure. So high frequency is divided into automatic and continuous high frequency welding machines, automatic high frequency machines, automatic continuous high frequency welding machines, automatic sliding desktop high frequency welding machines, rotary high frequency welding machine manual, manual continuous high frequency welding machine, manual push reel splicer , headed high frequency welding machines, high frequency synchronous welding machine fixed disc and so are several. Commonly referred to as high-frequency welding machines, high frequency welding machines, high frequency welding machines, welding machines, high frequency plastics welding machines, high frequency plastics welding machine, high frequency plastic welding machine!
Second, since the high frequency automatic folding box machines, high frequency welding machine features:
1, automatic high frequency folding box machines, high frequency welding machine is generally divided into continuous conveyor belt splice welding machines and automatic sliding around the desktop welding machine, manual push reel welding machines, automatic continuous high frequency welding machines, automatic high frequency machine and automatic The biggest difference between high frequency welding machine slide that automatic sliding Taiwan machine requires two people to operate, about the rotation out of the process, and continuous splice type can use only one-man operation, production efficiency can be adjusted according to product size, you can save an operator and while achieving a higher yield.
2, automatic continuous high frequency welding machines, automatic high frequency machine also uses low-loss coaxial European standard high-frequency resonators, high frequency electrical power output, in the most rapid time to make welding products and greatly increase production.
3, automatic continuous high frequency welding machines, automatic high frequency machine uses a motor-driven, two-station turntable positioning groove, each positioning precision fixed. The machine uses a plurality of stations production, auto-rotation, take place only responsible for artificial product, effectively improve the yield and saving labor.
4, continuous high frequency welding machine with a NL-5557 spark protection system of high frequency, high sensitivity, high frequency mold to prevent burning. And a high-frequency frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum, to avoid radio interference. And will avoid improper operation by the frequency drift caused by the electrode and material damage to a minimum while warning lights are illuminated warning.
5, automatic continuous high frequency welding machines, automatic high-frequency oscillation frequency in line with international standards for industrial band, high-frequency electromagnetic field generated by a high Q value vacuum tube self-excited oscillator, so that the processing of plastic between the upper and lower electrodes of the high-frequency electric field, it molecular friction generated strenuous exercise, get their welding results in the mold under pressure. Using C-type structure, the operator can visually welding products.
Third, automatic continuous high frequency welding machines, high frequency machine automatic machine uses:

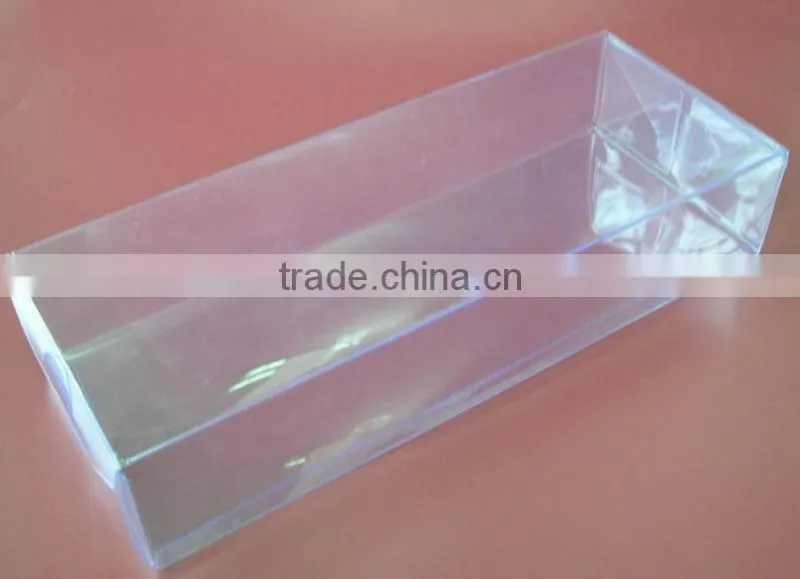

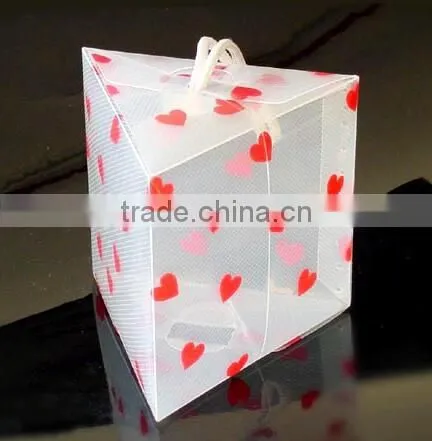

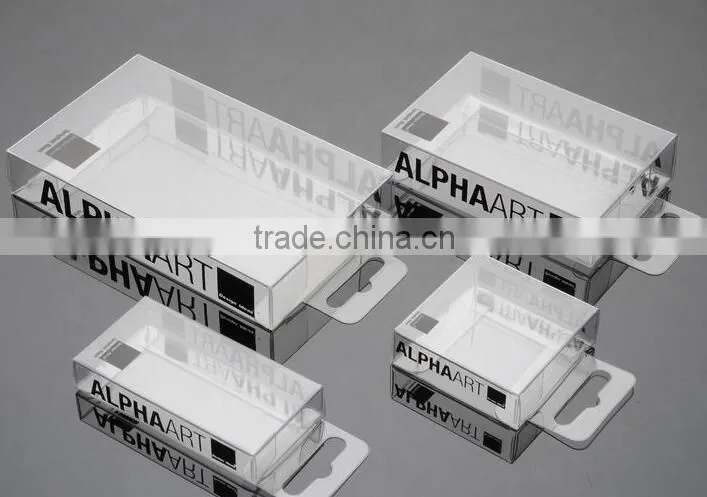

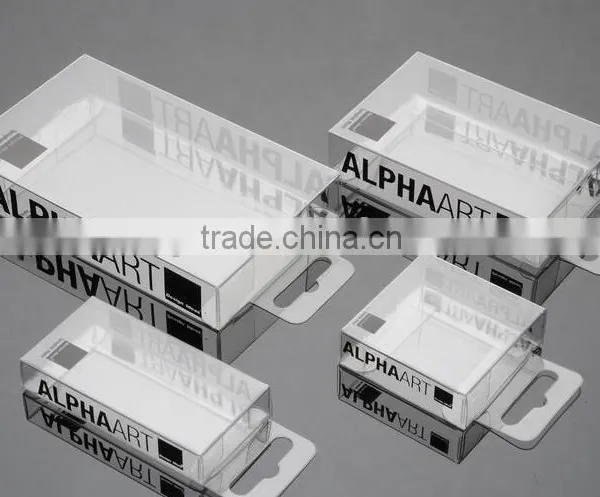

Mainly used for processing high-frequency welding needs, working principle is the use of high-frequency machine high frequency electromagnetic field between the upper and lower molds products to weld object is achieved by the molecular mobility. Also known as high frequency plastic welding machines, high frequency plastics welding machine, high frequency welding machines. Mainly for PVC material double blister sealing packaging, blister card packaging paper, toothbrush sealed packaging, as well as EVA leather cloth, leather, OPP, PU, straps, lanyards, water bottle, warm bags require welding The product.
Fourth, automatic continuous high frequency welding machines, automatic high frequency machine specifications:

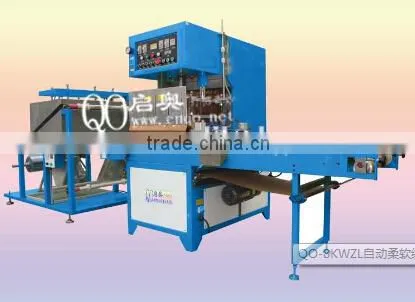

Model: QO-5KWZL QO-8KWZL QO-10KWZL QO-12KWZL QO-15KWZL
High Frequency Power: 5000W 8000W 10000W 12000W 15000W
Power supply voltage: 380V 50 / 60HZ
Frequency: 27.12MHZ
Input power: 8KVA 15KVA 18KVA 20KVA 25KVA
Rectifier: Silicon diode
Oscillating tube: 7T85RB 7T69RB E3069RB E3130RB 8T85RB
Maximum pressure: 5T 10T 15T 20T 25T
Electrode spacing: 200mm
Activities Dimensions: 100mm
The electrode size: 300 * 400mm 300 * 500mm 350 * 500mm 400 * 500mm 400 * 600mm
The lower electrode size: 300 * 450mm 300 * 500mm 350 * 500mm 400 * 500mm 400 * 600mm
Welding time: 0 --- 10sdjustable
Welcome to buy Biopolis automatic continuous high frequency welding machines, automatic high frequency machine, a variety of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice
