High Frequency Blister Package Machine

High Frequency Blister Package Machine photo-1

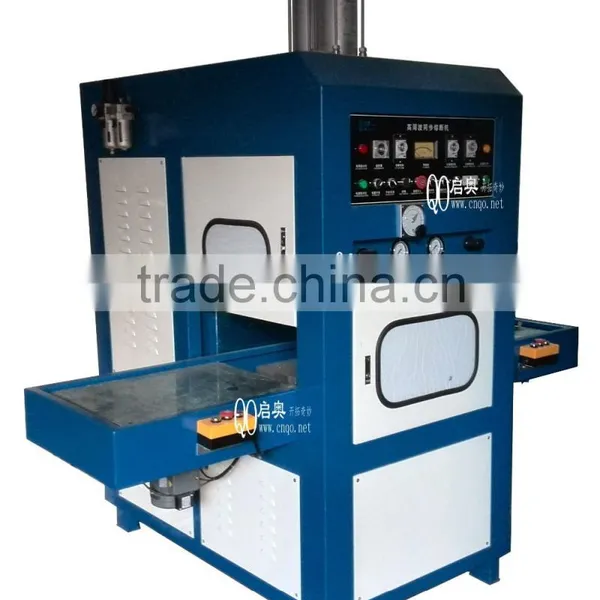

High Frequency Blister Package Machine photo-2

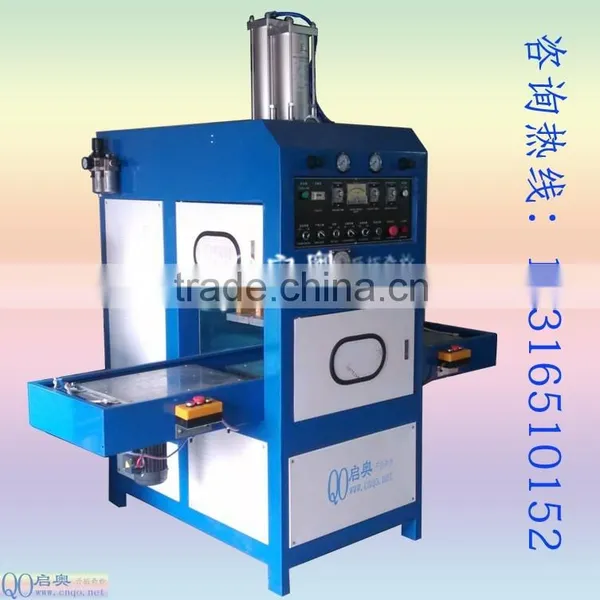

High Frequency Blister Package Machine photo-3
High Frequency Blister Package Machine photo-4

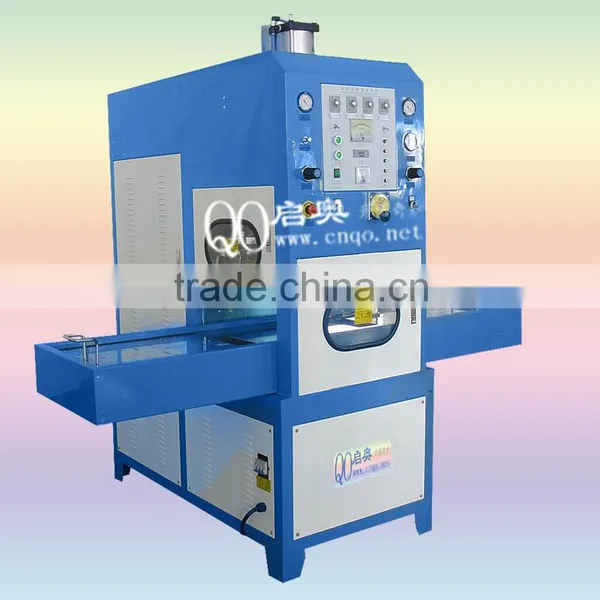

High Frequency Blister Package Machine photo-5
US$ 1 - 8,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Other
Packaging Type:
Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Other
Packaging Type Cartons
Packaging Material Wood
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Voltage 220V/380V
Power 8KW
Place of Origin Guangdong, China
Brand Name QO
Model Number QO-8KWDZ
Weight 1000kg
Dimension(L*W*H) various on each machine
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

The high frequency blister package machine is multipurpose machine, for it can be used for industry like PU leather cover for pad, automotive parts and car interior elements, safety vests, reflective signs, inflatable toys, cosmetics,folding packing box,.etc. It also is especially designed for high frequency welding is a perfect machine for production of blister packages
 The high frequency blister packaging welder,bilster weldin and cutting machine, by Shenzhen QIAO equipment CO., LTD, is made for various industrial HF welding and sealing applications. It is designed for applications requiring precision large flat surface for product positioning and complex shape welds.
 The high frequency blister welding and cutting machine series have high frequency power outputs from 5KW to 15KW.
 Machine is with special quick change electrode holder. Custom designed tooling and welding upper platen are available on request.



Application:

for welding and cutting simultaneously application. This kind of machine can be also called as hf simultaneous welding and cutting machine. Mainly apply for welding and cutting APET,PETG,GAG, Double side clamshell,blister+cardboard,leather,OPP,PU and many other environment-friendly materials.for welding and cutting simultaneously application. This kind of machine can be also called as hf simultaneous welding and cutting machine. Mainly apply for welding and cutting APET,PETG,GAG, Double side clamshell,blister+cardboard,leather,OPP,PU and many other environment-friendly materials.



For product

High frequency blister package machineHigh frequency blister package machineHigh frequency blister package machineHigh frequency blister package machine



Technical Specification:



Specification
 Model QO-8KWDZ  QO-10KWDZ QO-12KWDZ  QO-15KWDZ
Output Power 8000W 10000W  12000W  15000W
Anti-Spark System  U.S.A.  PL-5557 High sensitive anti-spark system
Voltage  3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency 27.12MHz  +/- 0,6 %
Input power 15KVA          18KVA           20KVA           25KVA
Rectifier SILICON DIODE
Oscillation tube 7T69RB  E3069RB  E3130RB 8T85RB
Max pressure 10T 15T 20T 25T
Operation mode Pneumatic Operated (Hydraulic pressure upon request)
Max gap of electrodes 200mm
Size of active horn 100mm
Upper Electrode (L*W) 300*500mm 350*500mm  400*500mm 400*600mm
Size of Work Table (L*W) 300*500mm 350*500mm 400*500mm 400*600mm
Welding time  0.~10s adjustable







Packaging & Shipping

Packaging Details: Standar export packaging (plywood case, no fumigation need)
Delivery Detail: 20 working days after 30% deposite

Our Services



1) Warranty: 12 months

2)Technical support by E-mail or phone

3)Engineers available to service machiner

4) Agent help to offer after-service

Company Information

  Shenzhen QI AO Machinery Co., Ltd. is a professional factory direct high frequency, high frequency machine, high frequency fusing machine, high frequency welding machine, blister packing machine, blister sealing machine, cylinder machine, cylinder curling machine, cylinder welded bottom machine vacuum packaging machines, skin packaging machines, shrink packaging machines, balers, packaging equipment and ultrasonic, ultrasonic plastic welding machine, ultrasonic welding machine, ultrasonic spot welding, ultrasonic welding machines, high frequency welding machine, High frequency metal mesh preparetions machine, high frequency heating machine, welding equipment, high-frequency furnace.
