Home > Products > extrusion laminating machine > Co-extrudor brick-shaped drink packing Coater/Laminator machine
Co-extrudor brick-shaped drink packing Coater/Laminator machine
- 50 Set / Sets per Month
- Shanghai Port
- L/C D/P D/A Credit Card PayPal
- Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
- 1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
- 220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
- 400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
- 400mm 600w infrared quartz heating element carbon fiber quartz tubes
- 230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
Condition: | New | Application: | Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles | Packaging Type: | Film |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 3phase 380V | Power: | 410Kw | Place of Origin: | Jiangsu, China |
Brand Name: | Honghua Brand | Model Number: | HDLF(90-65)X2-1000 | Dimension(L*W*H): | 23800mmX6800mmX4430mm |
Weight: | 33500kg | Certification: | ISO9001,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
high speed,autmatic,high quality,low cost

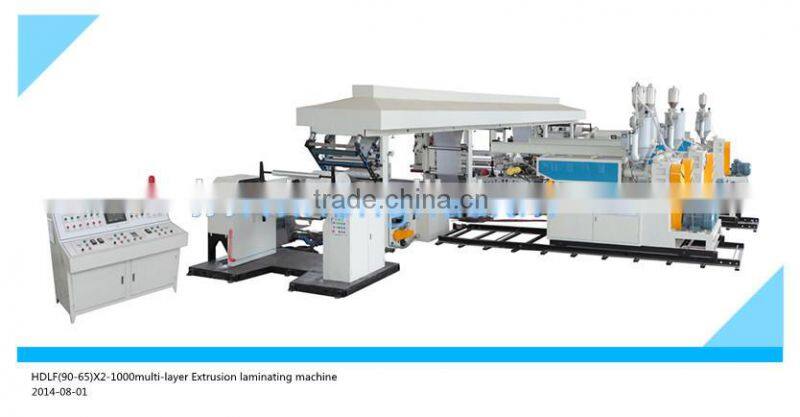

HDLF(90-65)X2-1000multi-layer Extrusion laminating machine
Main feature and performance
- The whole technical flow from unwinding of raw material to coating and winding adopts the advanced electric equipments and mechanism equipments, PLC Controller, Human machine interface,it could be controlled solely or together with high autoimmunization;
- The double working position unwinding adopts the automatic rectifying. The coil unwinding and changing adopt automatic changing, cutting and material joining without speed reducing. The tension of the unwinding adopts the PLC controller, this ensure unwinding be smooth and in high speed;
- The speed of extrusion and molding is controlled by PLC. The molding roller, silicone roller and assistant cooling roller adopts recycle water cooling structure, this structure ensure the good coating effect. The molding rollers clutch adopts the pneumatic controller;
- The double working winding adopts the vector inverter and PLC controller, the coil changing adopts the automatic changing, cutting and material joining without speed reducing. This machine is suitable for coating laminating on the coil paper, aluminum foil, unwoven fabric, weave, BOPP, PE etc. Adopts the own patent technology, the products have good quality: high peel off strength, good matte effect, symmetrical thickness, good leak tightness and so on. Every standard of the products produced by this machine reach or exceed the industry standards. This machine is one of the most advanced heating melt coating machine China.
PART1:Unwnding system
Unwinding substrate requirements | 80~350gsm Roll paper 0.006~0.007mm Roll of aluminum foil |
Effective film width | 600~1000mm |
Unwinding | High-speed non-stop automatic cutting |
Roller change | Manual |
Pneumatic roller for unwinding | 3” (diameter: φ73mm) |
Rectifying device(EPC)length | ±100mm |
PART2: Extruding system
Raw material laminating film | Laminating film machine PE,PP resin, etc. |
Effective film width | 600~1000mm |
Laminating film thickness | 0.012~0.03 single |
Laminating evenness | ±5% |
Mechanical design speed | 0~150m/min |
Part3: molding system
PART4:Winding system
Winding type | central type |
Max diameter | 1200mm |
tension | Controlled by inverter motor |
Roller change | Manual |
Winding | High-speed non-stop automatic cutting |

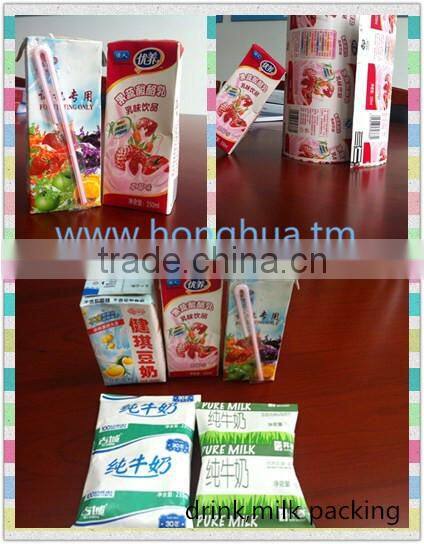

Part 5: sample pictures

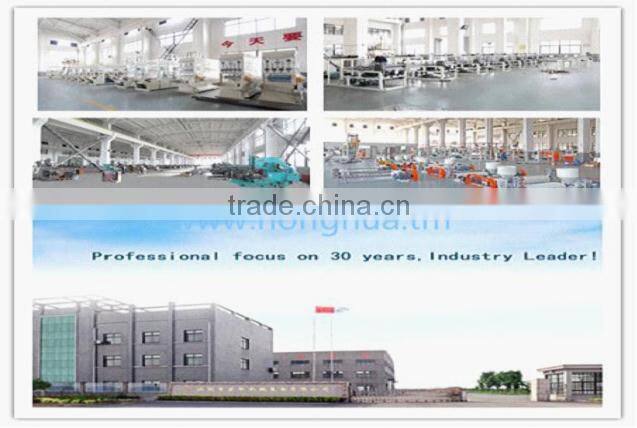

PART 6:factory pictures
PART 7:with customers
PART8:certificates
Jiangyin City Yuzhe International Trading CO.,LTD
Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .
Best service! Best quality! Best price!
Contact Us
- Jiangyin Yuzhe International Trading Co., Ltd.
- Contact nameYU ZHE
- Phone86-510-86381737
- AddressNo. 99, Huannan Road, Zhutang Town, Jiangyin
