HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine

HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine thumbnail-1
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine thumbnail-2
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine thumbnail-3
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine thumbnail-4
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine thumbnail-5
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine thumbnail-6
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine photo-1
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine photo-2
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine photo-3
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine photo-4
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine photo-5
HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine photo-6
US$ 86,000 - 362,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Film
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Jiangyin Yuzhe International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Film
Plastic Processed PE
Screw Design Double-screw
Automatic Grade Fully automatic
Place of Origin Jiangsu, China
Brand Name HONGHUA DRAND
Model Number HDLF65X2-1000
Voltage 380v
Power(W) 110KW
Dimension(L*W*H) 5600x2500x2600mm
Weight 5600kg
Certification ISO 9001 CE
After-sales Service Provided Engineers available to service machinery overseas

Extrusion coating lamination machine

HDLF65X2-1000

Double Screw T-die Extrusion PE PP Coating Laminating Machine





HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine

Main feature and performance

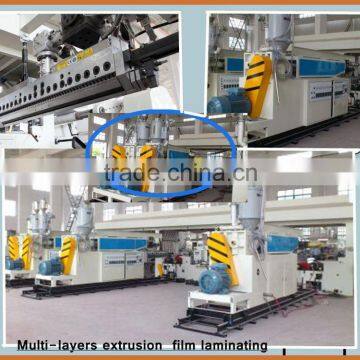

 Adopts more advanced, more humanized PLC programmable controller. Mostly used for aluminum paper-plastic packaging material. such as alcohol packing..instant noodle box cover, toothpaste shell and so on. Multi-layerCo-extrusionlaminators&coaters .

1.Screw and barrel:φ65mm with special mixed segment and high capacity.
2.Mold:T-flexible mold supporting auto filter change
3.Raw material laminating film: Laminating PE/PP, etc.
4.Laminating effective width:600-1000mm
5.Laminating film thickness:0.012-0.035mm,single.
6.Mechanical design speed:0-150m/min
7.Unwinding:High-speed non-stop automatic cutting
8.Winding:High-speed non-stop automatic cutting.











Product Description

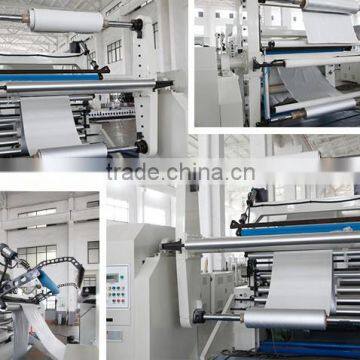

Part 1: Unwinding system



  Double Screw T-die Extrusion PE PP Coating Laminating Machine

HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine



Main Parts Features
Unwinding substrate requirements 80~350gsm Roll paper
0.006~0.007mm Roll of aluminum foil
Mechanical design speed 0~150m/min
Unwinding High-speed non-stop automatic cutting





 ♦360° turn over double work unwinding frame, automatically lock.



 ♦Hydraulic automatic trolley type rectifying device



 ♦Urgent stop and reset function

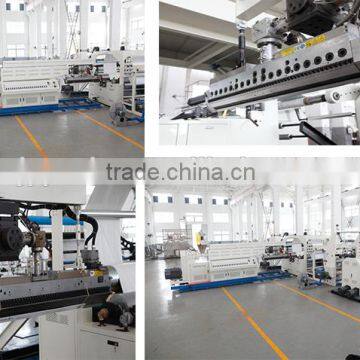

Part 2: Extruding system





HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine  Double Screw T-die Extrusion PE PP Coating Laminating Machine

Main Parts Features
Screw and barrel Φ65mm with special mixed segment and high capacity
Mold T-flexible mould supporting auto filter change
Laminating film machine PE,PP, resin, etc.
Effective film width 600~1000mm
Laminating film thickness 0.012~0.03mm Single
Laminating evenness ±5%



♦New type feather-edge mould



♦Stainless steel inside heat device for coating the mould



♦Automatic loader system







Part 3: Molding system



HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine



♦Digital corona treatment makes the printing material’s color more fatness.



 ♦There is a cooling system to make sure the quality of laminating material.



 ♦Water chiller low the temp. of laminating material.

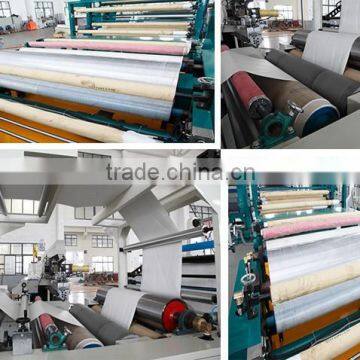

Part 4: Winding system



HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine

  Double Screw T-die Extrusion PE PP Coating Laminating Machine


Main Parts Features
Winding type  central type
Max diameter  1200mm
Controlled by inverter motor
Roller change Manual
Winding High-speed non-stop automatic cutting













Part 5: Sample pictures                                                          HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine













Packaging & Shipping

 HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine

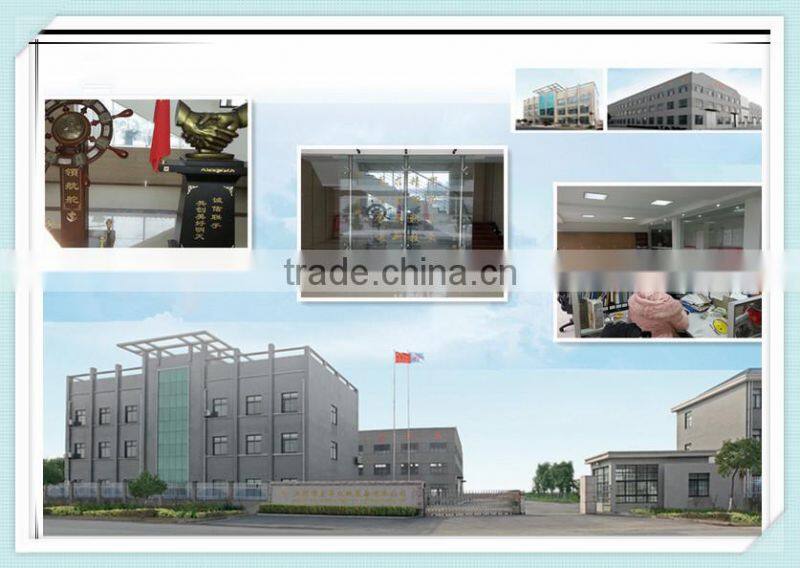

Company Information



HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine

HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine













Certificates











FAQ

 HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine



HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating Machine









HDLF 65X2-1000 NEW ! Conditon Double Screw T-die Extrusion PE PP Coating Laminating MachineJiangyin City Yuzhe International Trading CO.,LTD



Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .



Best service! Best quality! Best price!
