HDLF65X2-1000Co-extrusion Silicon Coater line

Specifications

more humanized PLC programmable controller.Mostly used for aluminum paper-plastic packaging material.such as alcohol packing

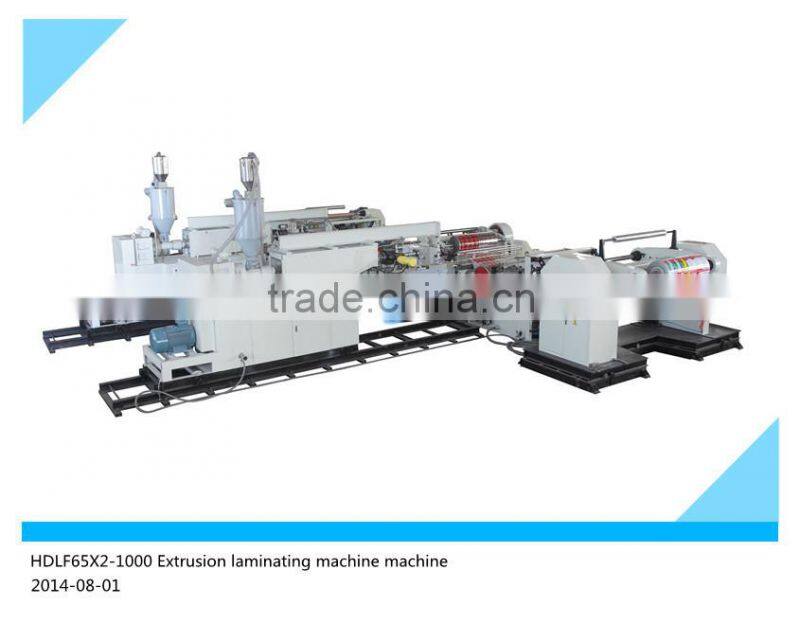

HDLF65X2-1000 Co-extrusionLaminator Extruder line

Main feature and performance

Model JDLF65x21000 Co-extrusionLaminator Extruder line adopts more advanced, more humanized PLC programmable controller. Mostly used for aluminum paper-plastic packaging material. such as alcohol packing..instant noodle box cover, toothpaste shell and so on.

Main technical parameter

1.Screw and barrel:φ65mm with special mixed segment and high capacity.
2.Mold:T-flexible mold supporting auto filter change
3.Raw material laminating film: Laminating PE/PP, etc.
4.Laminating effective width:600-1000mm
5.Laminating film thickness:0.012-0.035mm,single.
6.Mechanical design speed:0-150m/min
7.Unwinding:High-speed non-stop automatic cutting
8.Winding:High-speed non-stop automatic cutting.

PART1:Unwnding system

Unwinding substrate requirements	80~350gsm Roll paper 0.006~0.007mm Roll of aluminum foil
Mechanical design speed	0~150m/min
Unwinding	High-speed non-stop automatic cutting

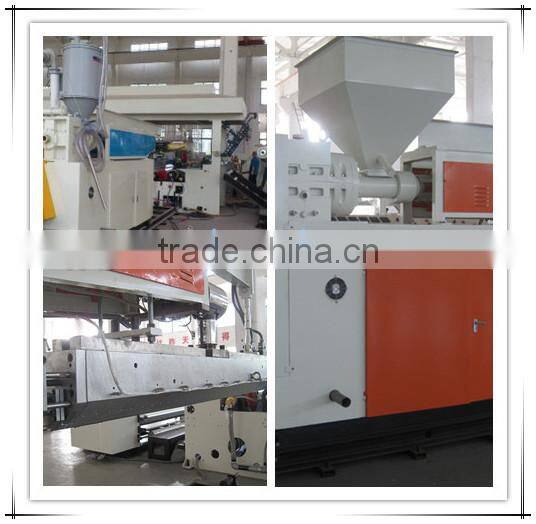

PART2: Extruding system



Screw and barrel	Φ65mm with special mixed segment and high capacity
Mold	T-flexible mould supporting auto filter change
Raw material laminating film	Laminating film machine PE,PP, resin, etc.
Effective film width	600~1000mm
Laminating film thickness	0.012~0.03mm Single
Laminating evenness	±5%

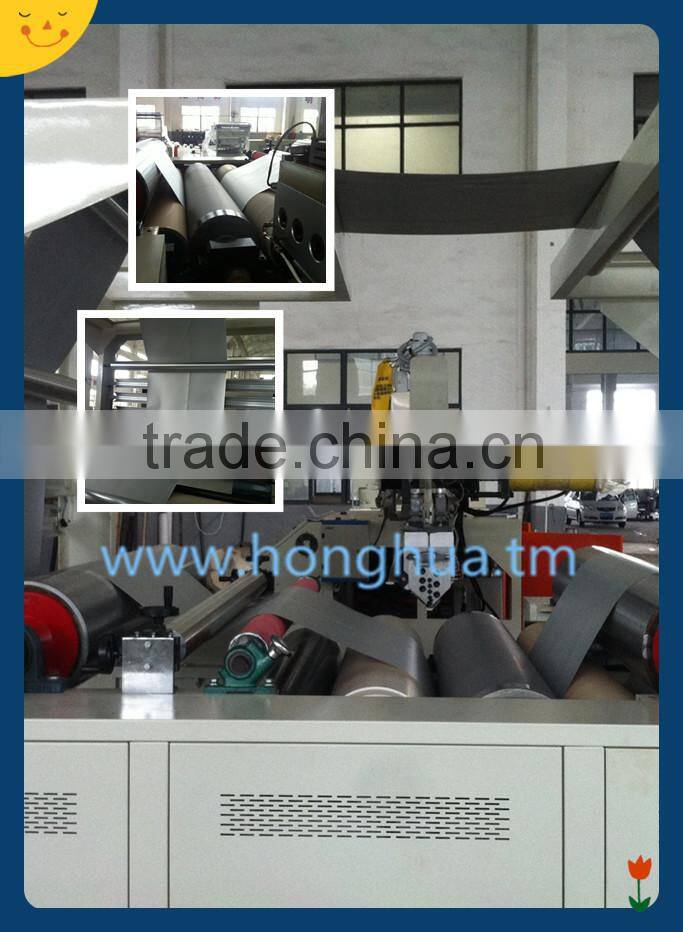

Part3: molding system

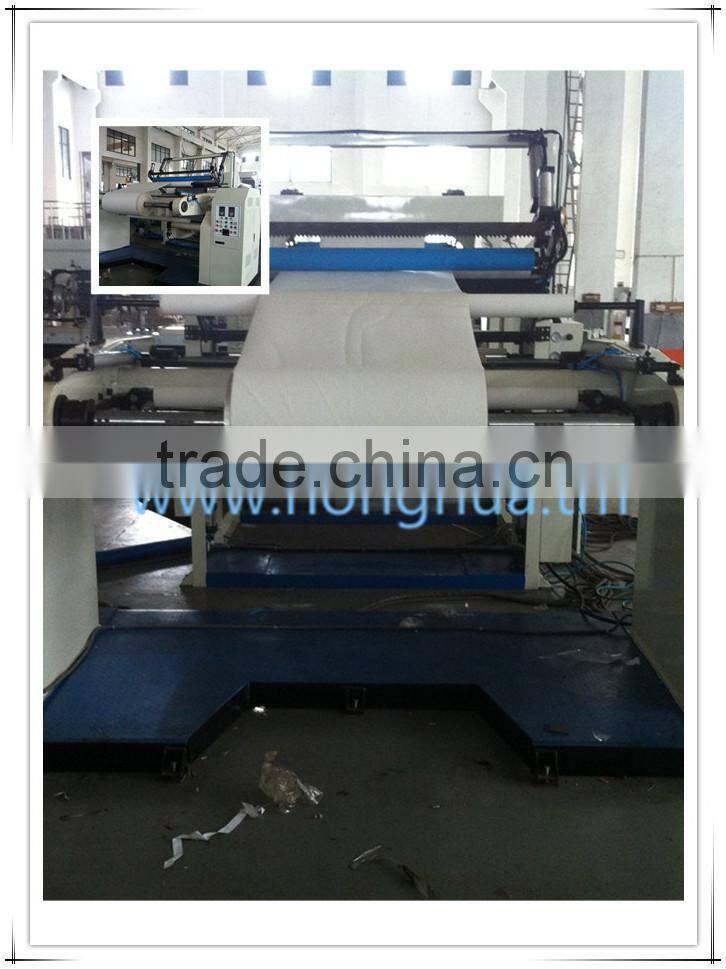

PART4:Winding system

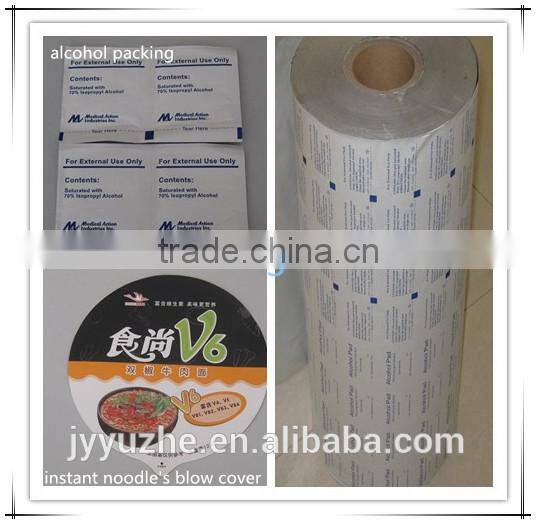

Part 5: sample pictures

Winding type	central type
Max diameter	1200mm
tension	Controlled by inverter motor
Roller change	Manual
Winding	High-speed non-stop automatic cutting

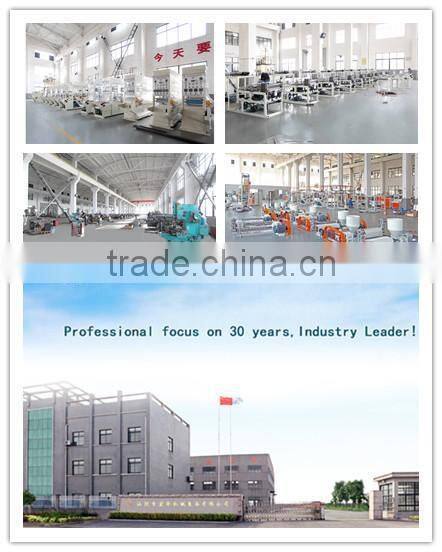

PART 6:factory pictures



PART 7:with customers

PART8:certificates









Jiangyin City Yuzhe International Trading CO.,LTD



Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .



                Best service! Best quality! Best price!
